Stealkey CubeTube Distroplate 360mm - Acryl

Details

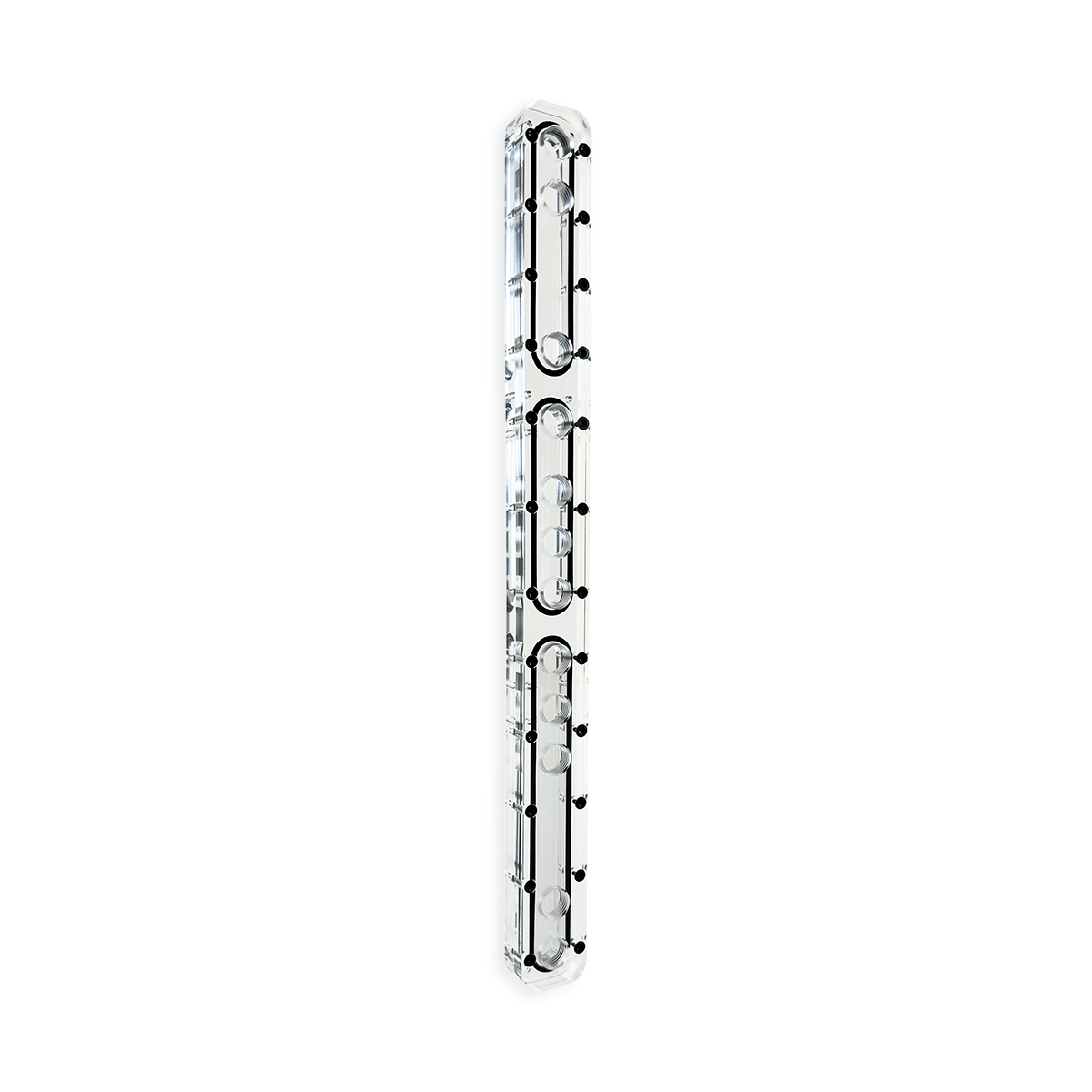

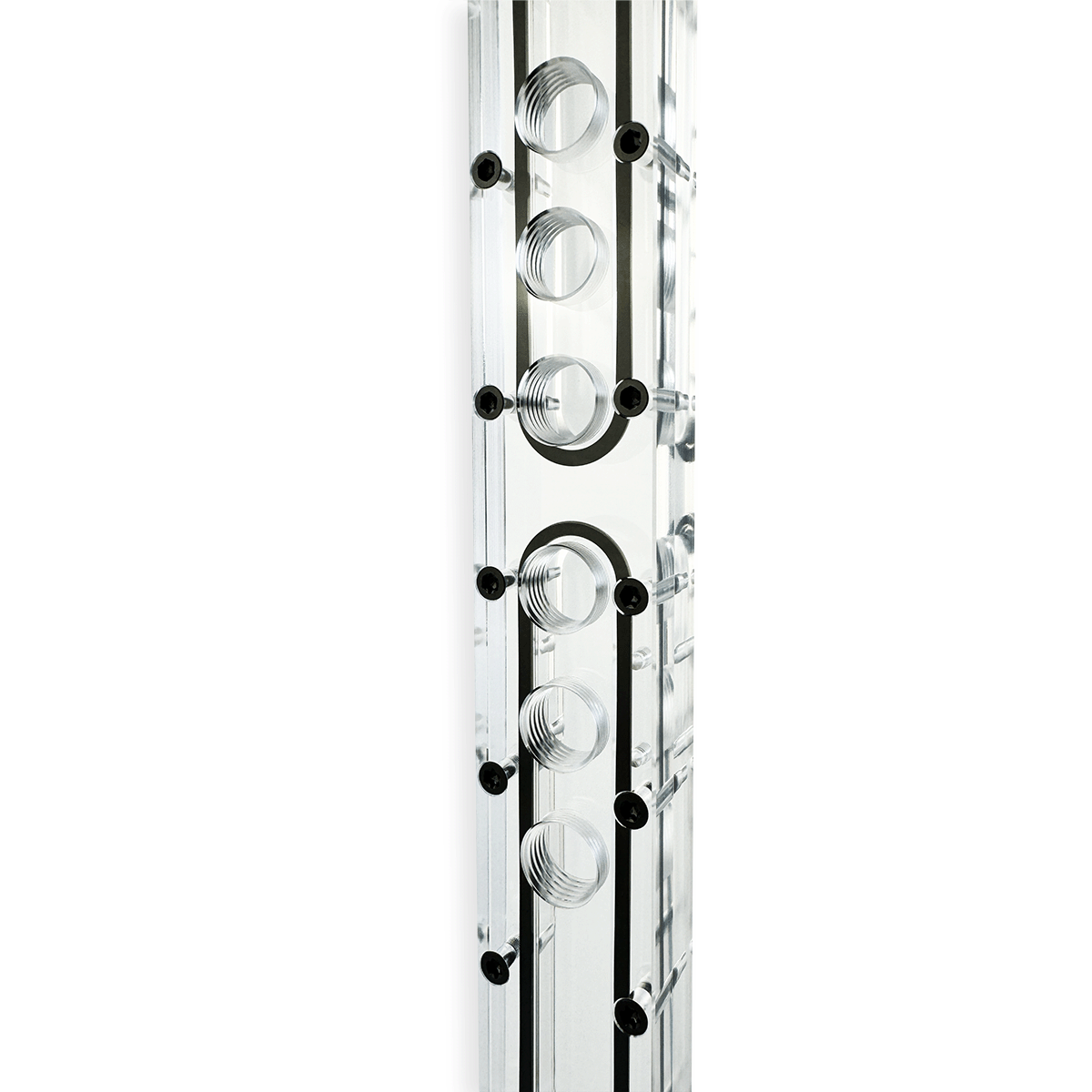

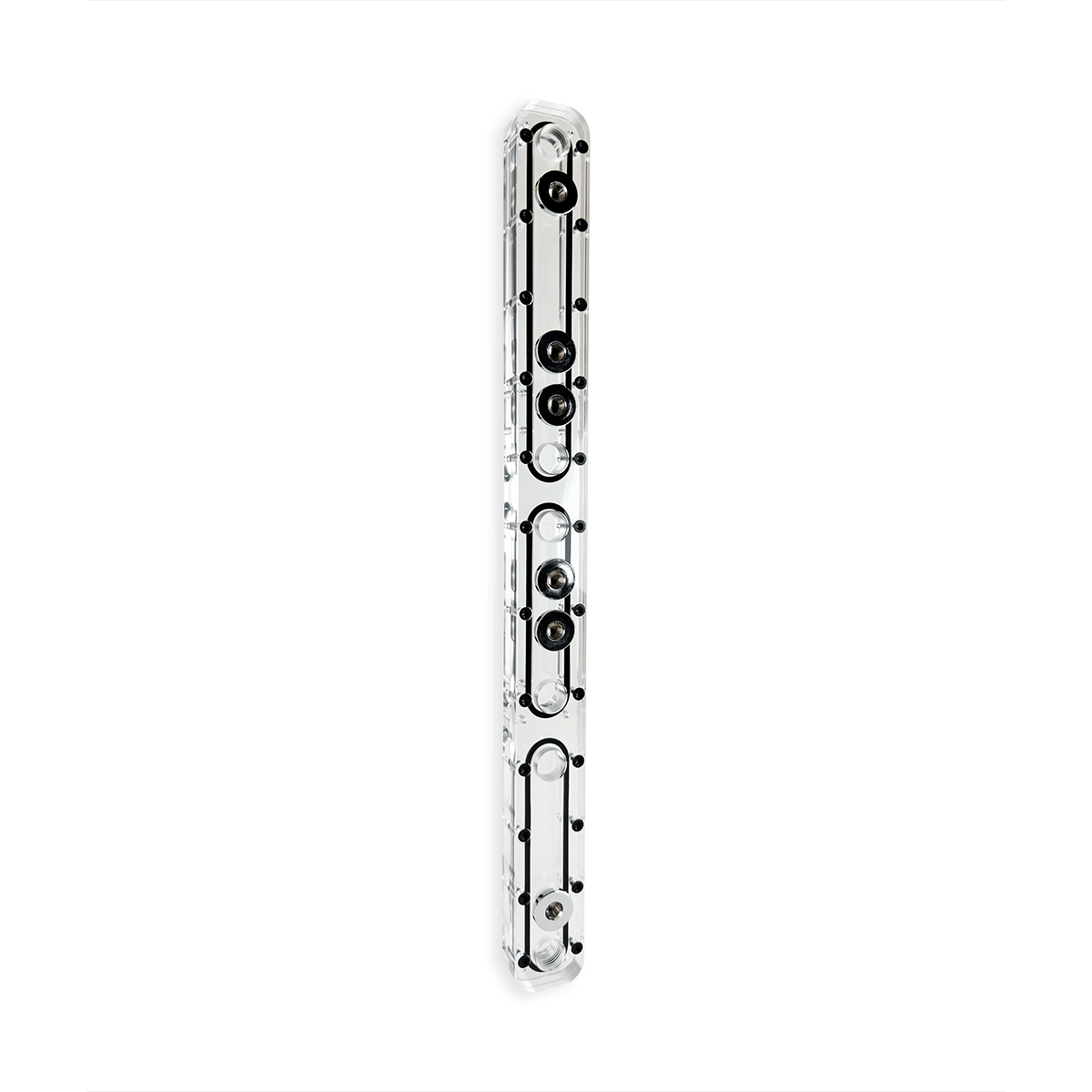

The Stealkey CubeTube Distroplate 360mm - Acrylic is based on the concept of our best-selling product "CubeTube".
The Cubetubes were our first collaborative product with LiquidHaus. It has the characteristics of a hard tube and can enhance the aesthetics of an existing or new water cooling loop. By expanding to two channels, the CubeTube Distroplate is capable of supporting the GPU (horizontal & vertical), CPU, and two radiators with a length of 360mm. There are 12x G1/4 inch threads available for straight tubing to enable a clean build.

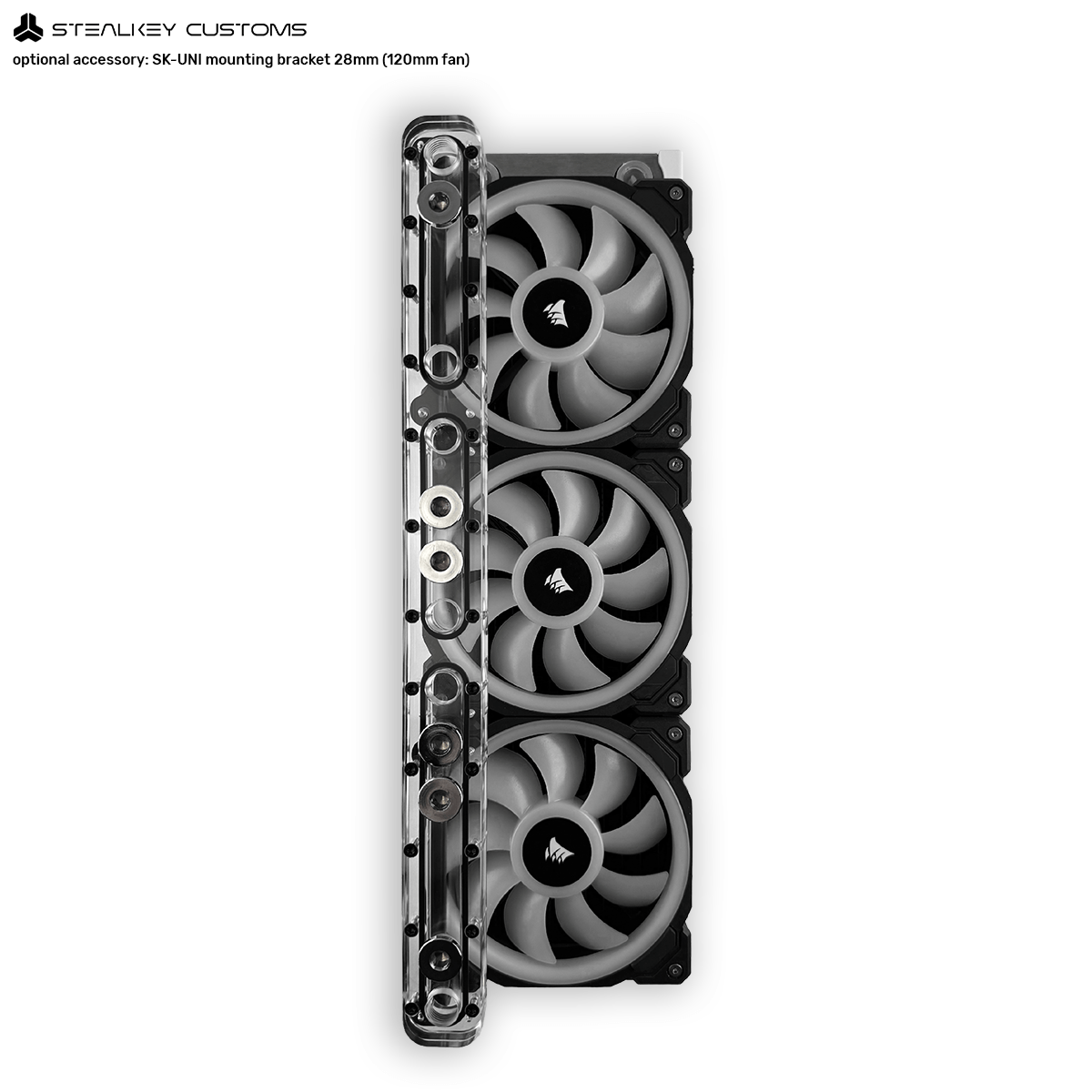

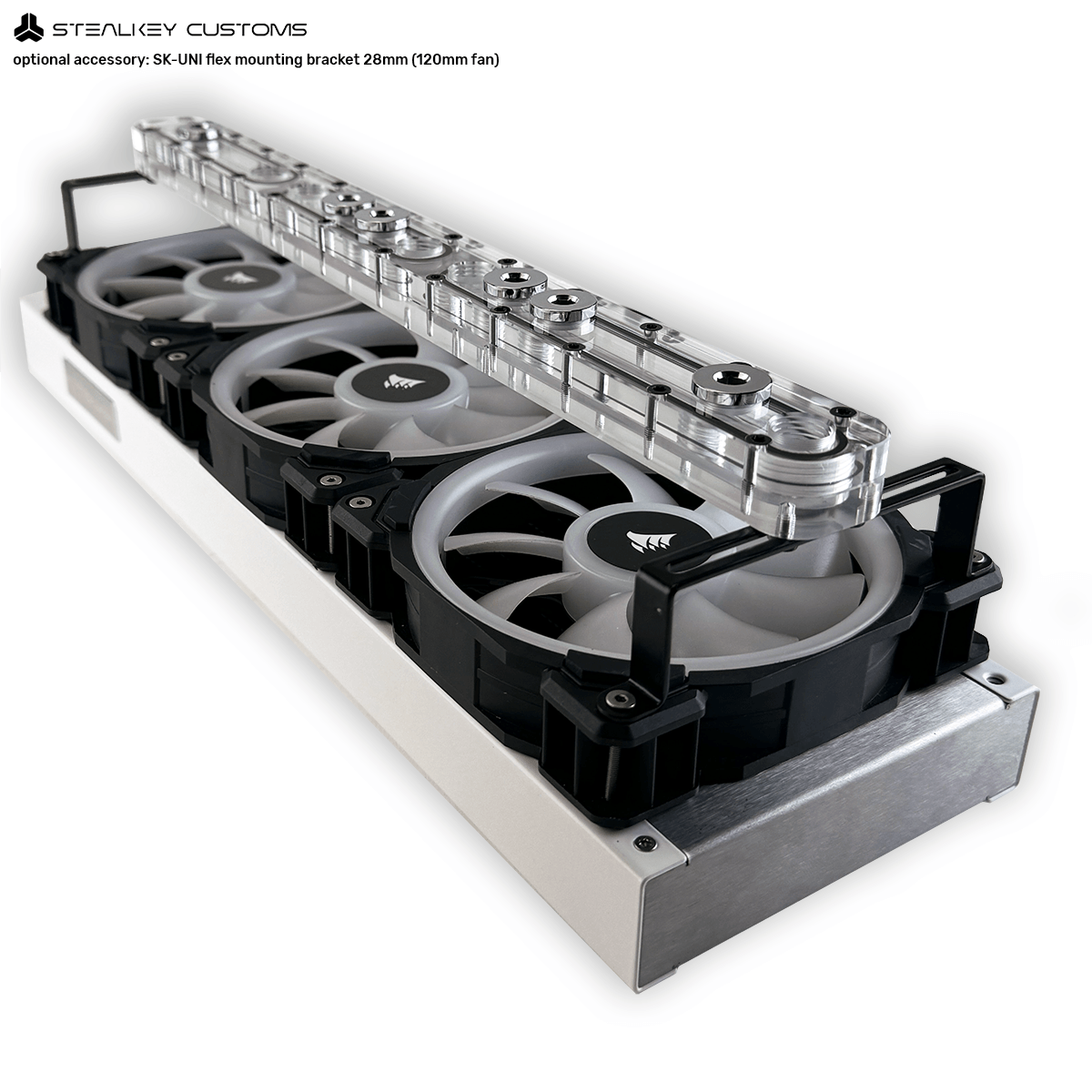

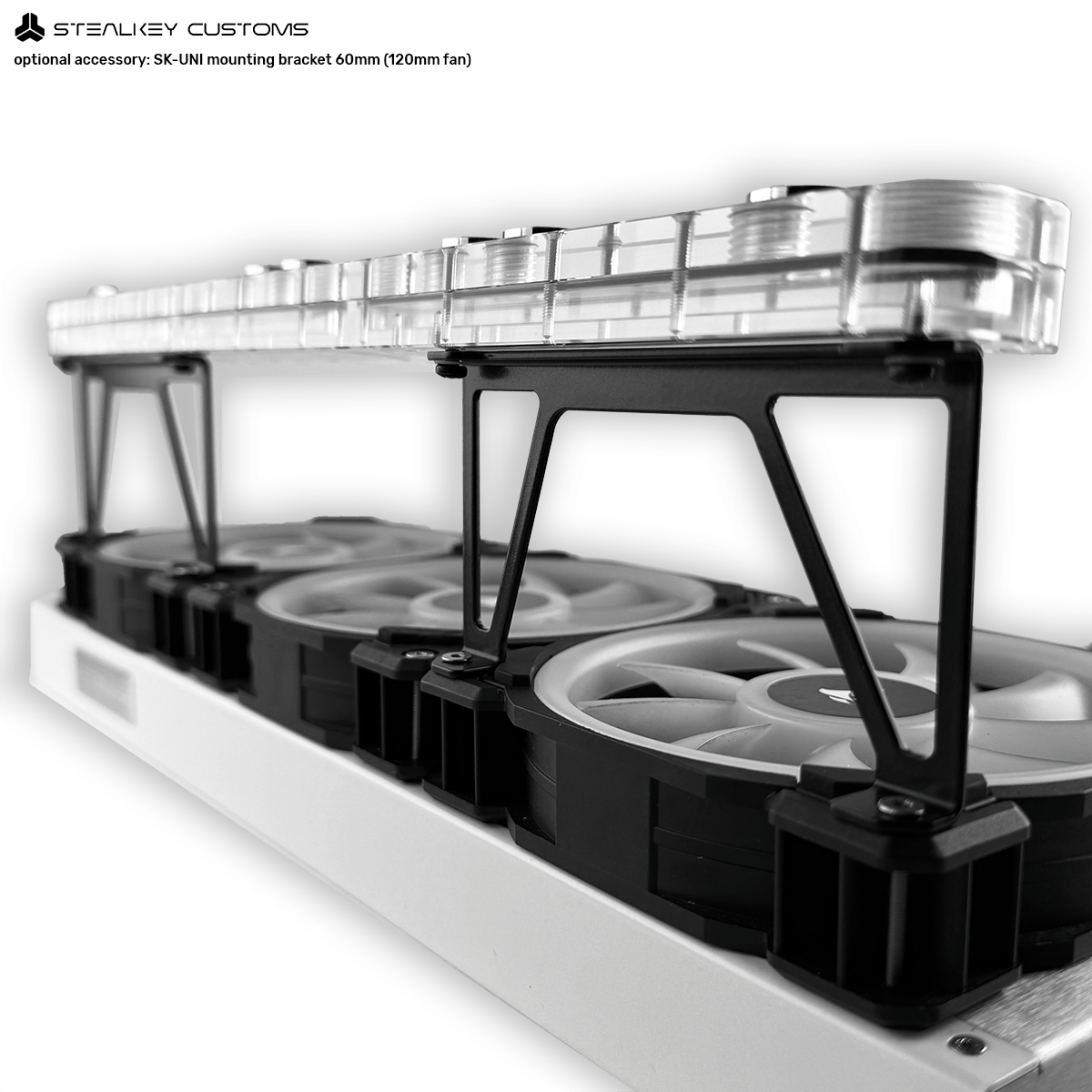

Remarkably, its slim design, measuring only 31mm, allows for flexible positioning of the CubeTube Distroplate 360mm (for example, sideways, centrally in front of the radiator/fan assembly). Installation kits are available separately for mounting.

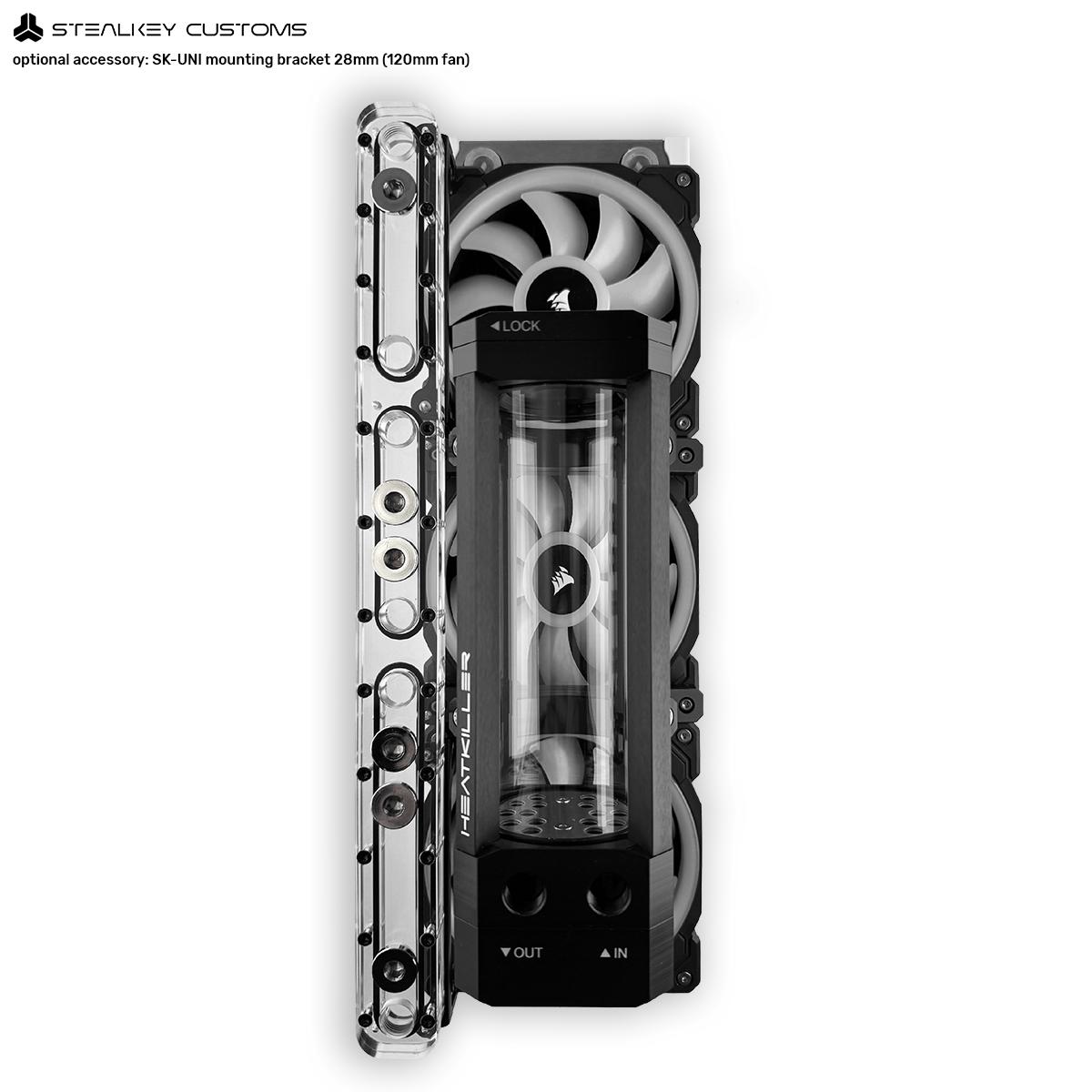

The installation kit allows for combining the CubeTube Distroplate and tube reservoir on the same radiator/fan assembly. This setup minimally affects airflow, does not disrupt the positioning of the tube reservoir, and allows for the integration of a D5 or DDC pump into the system.

Technical details

• CNC-milled and hand-assembled in Germany

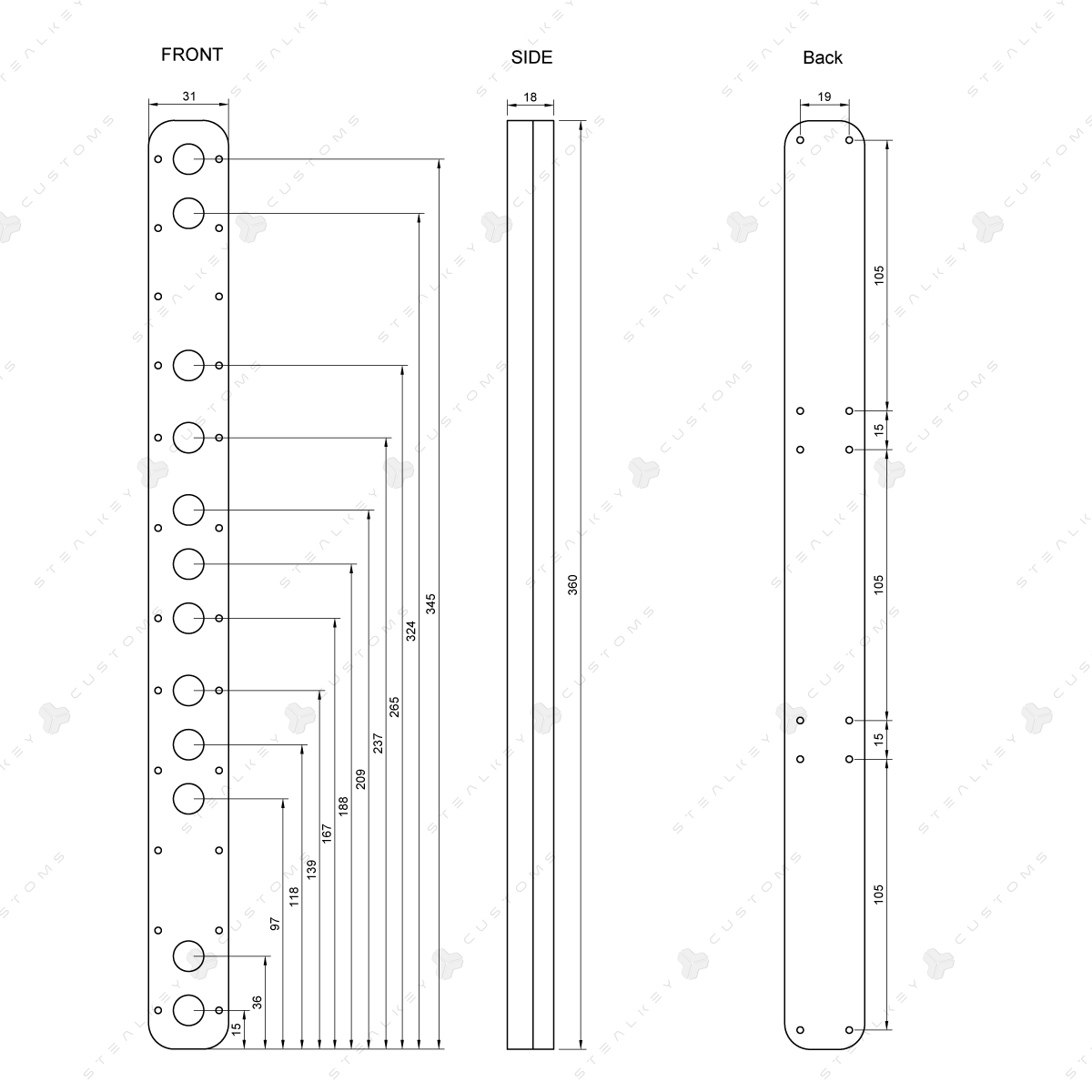

• Dimensions (B x H x T): 360 x 31 x 18 mm
• Color: transparent
• Material: Acrylic
• Thread Size: 12x G1/4"-Ports

Scope of delivery

• 1x Stealkey CubeTube Distroplate 360mm
• 6x M3x6mm Mounting screws
• 6x Washer
• 6x Plugs
