Stealkey CubeTube Distroplate 240mm - Acryl

Sale price€46,99

Tax included. Shipping costs calculated at checkout

SKU: SW10134
Quantity:
In stock
Gewicht: 0.25 kg
Details

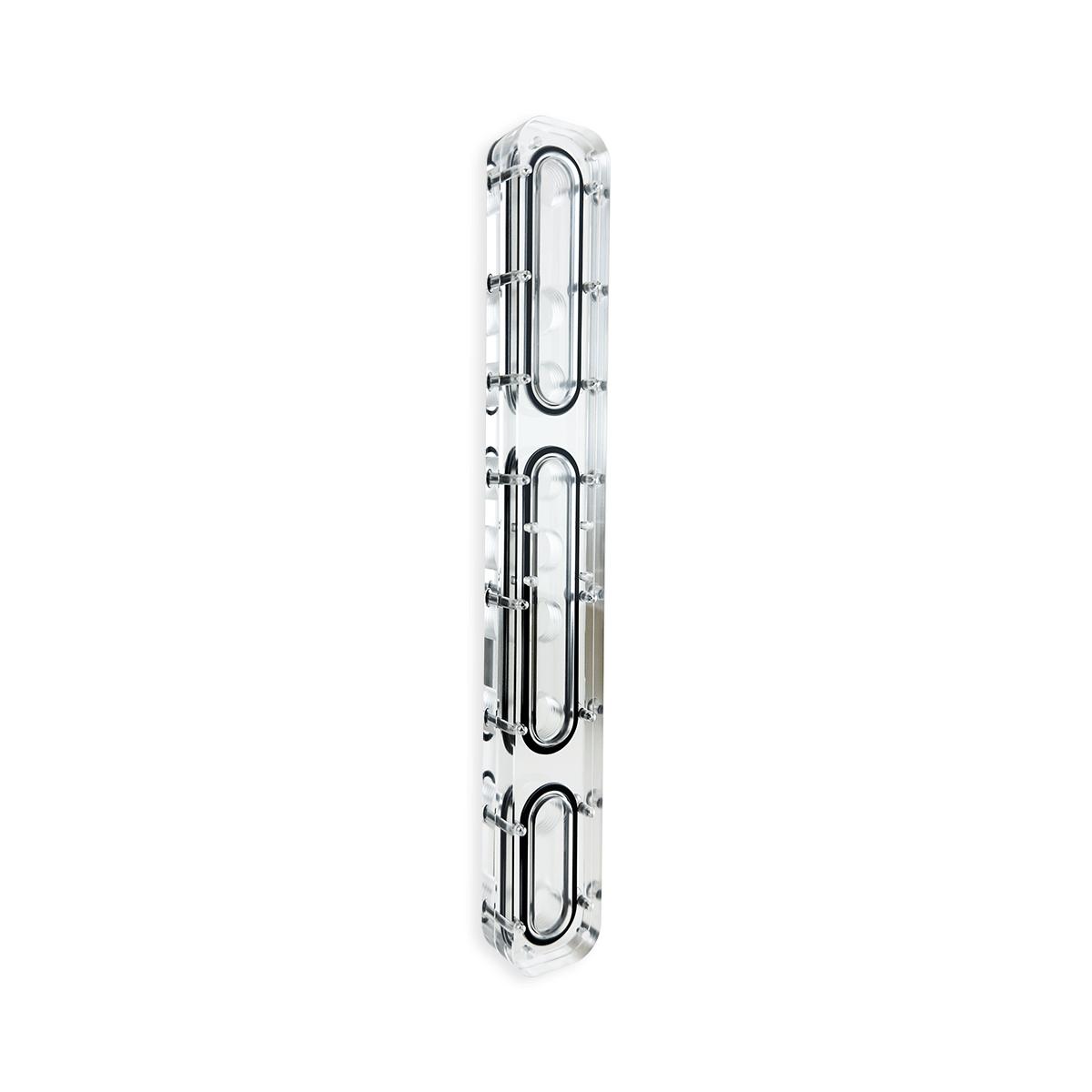

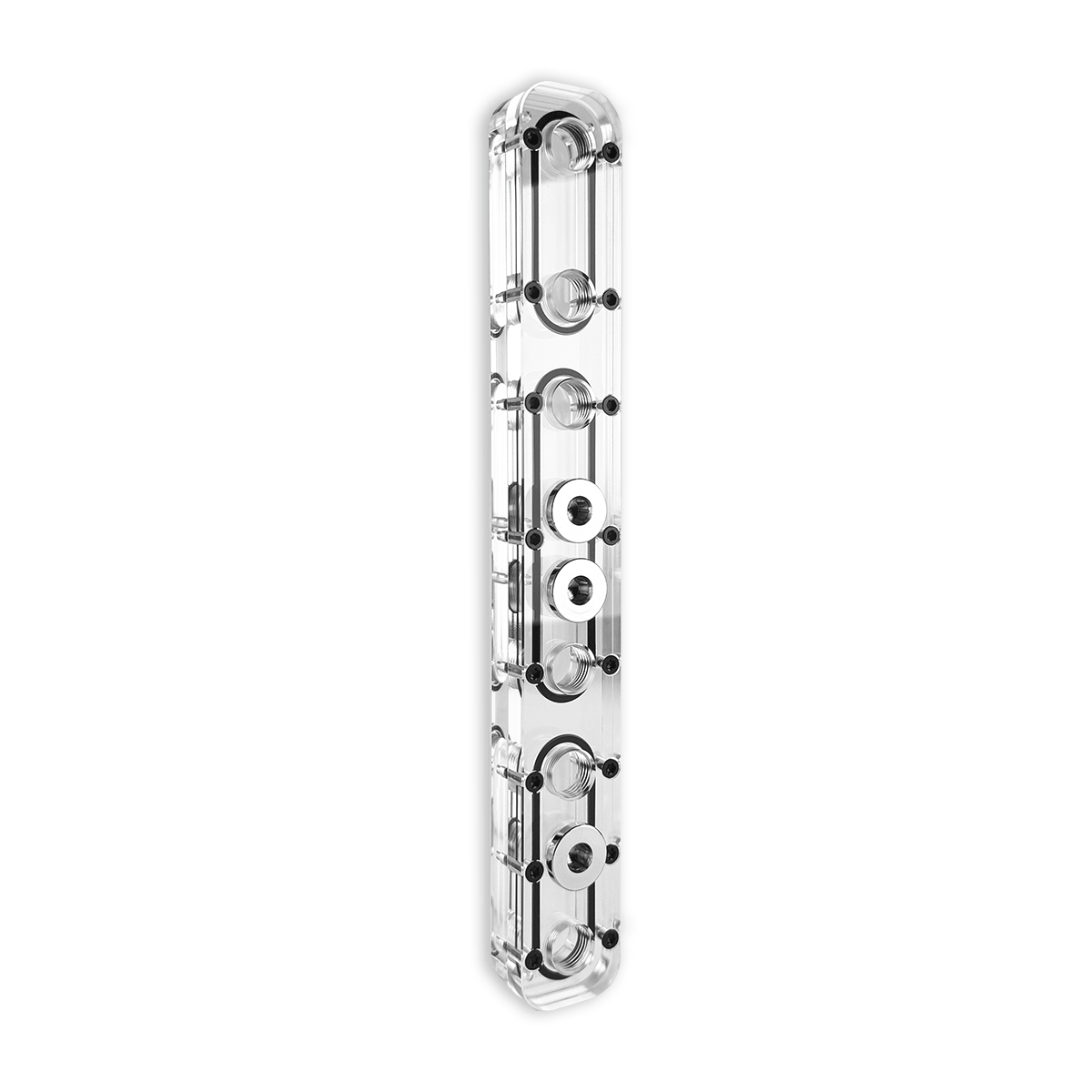

The Stealkey Cubetube Distroplate 240mm – Acrylic is the latest innovation for your custom water cooling setup and builds on the successful concept of our bestseller “CubeTube.” Originally developed as the first collaboration project with LiquidHaus, it combines the sleek look of a hard tube with the functionality of a distro plate – ideal for taking your loop design and flow to the next level.

With two integrated channels, the Cubetube Distroplate 240 mm can support a GPU (horizontal & vertical), CPU, and up to two radiators across its 240 mm length. A total of 9x G1/4-inch ports allow for straight tubing runs, resulting in a particularly clean and tidy build – perfect for those who value both aesthetics and efficiency.

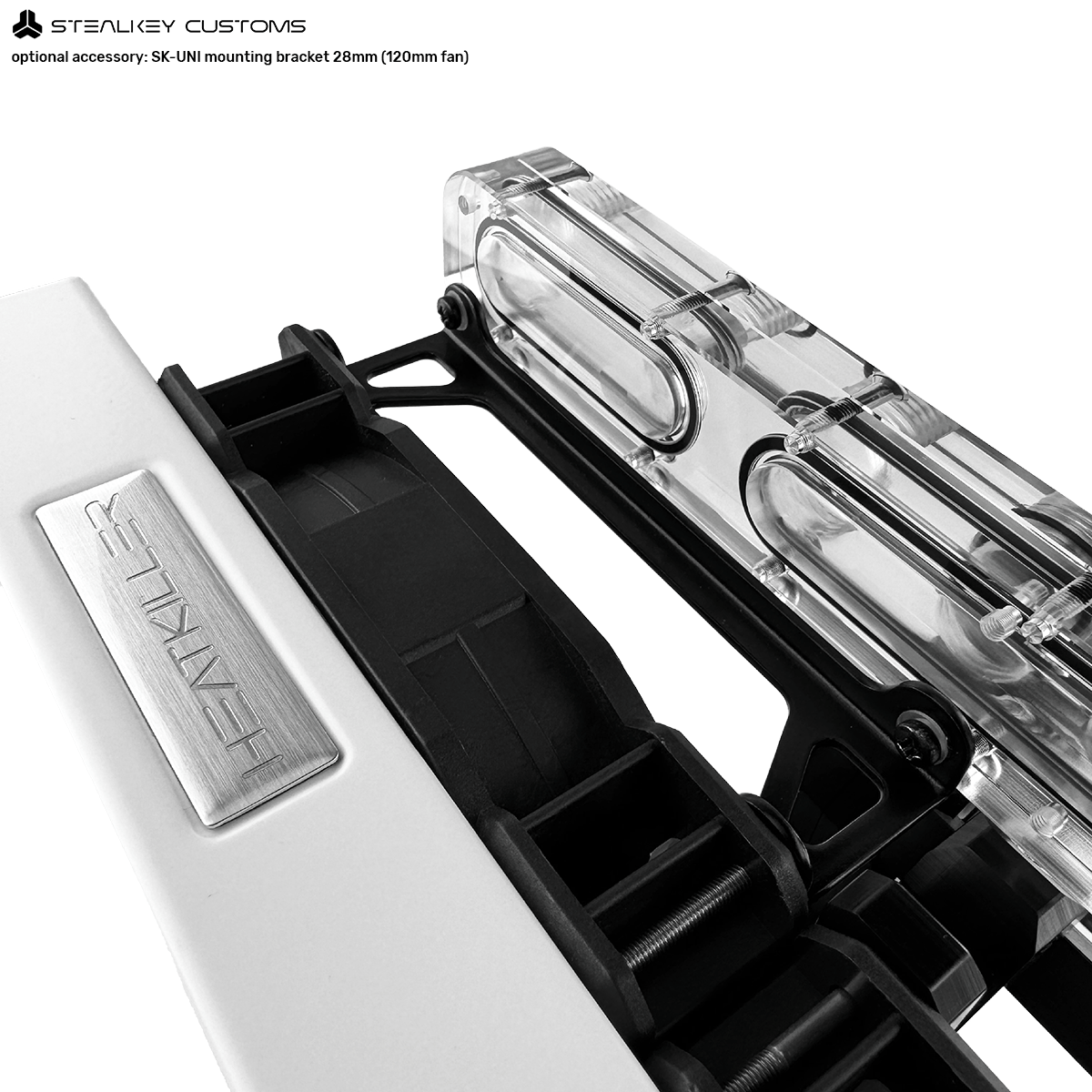

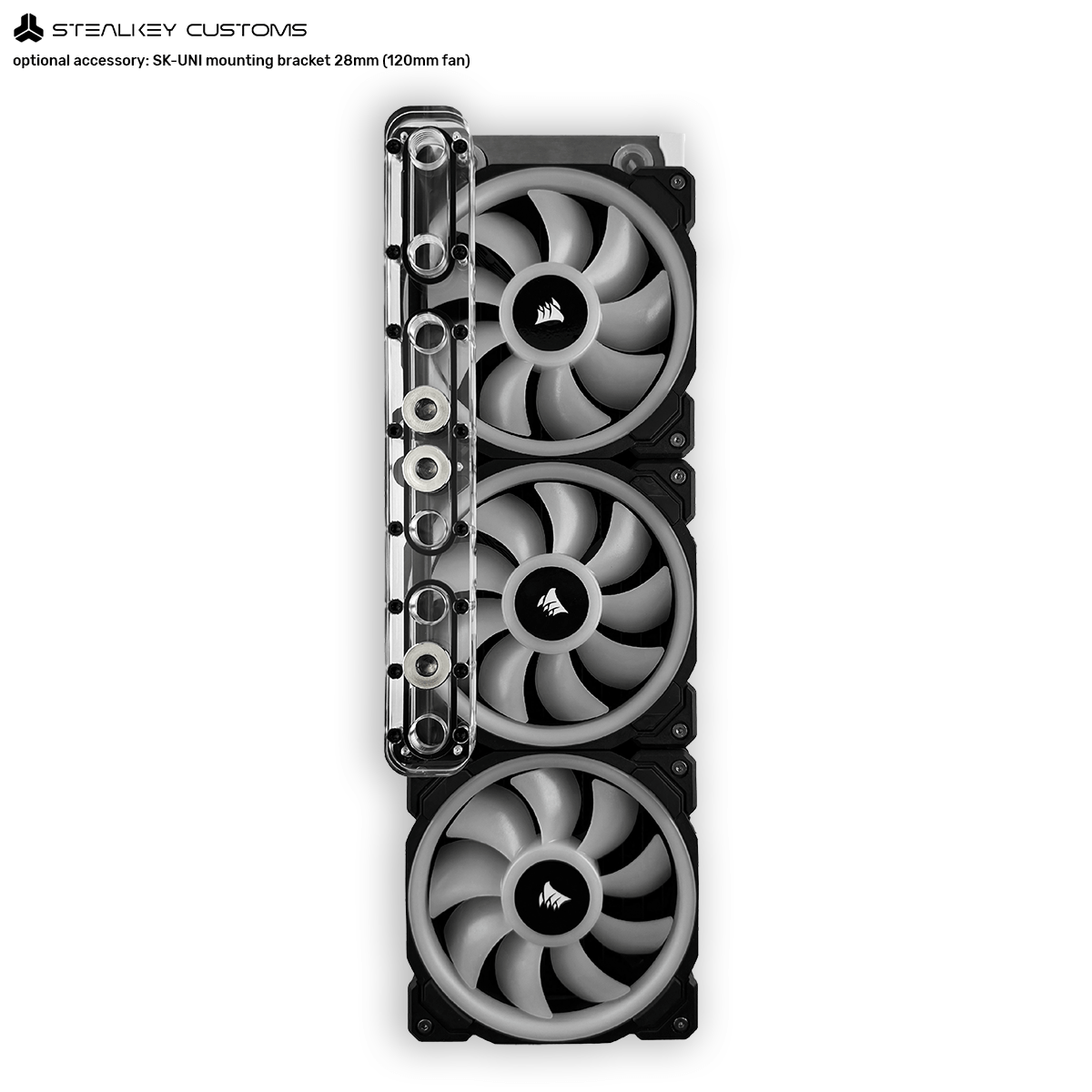

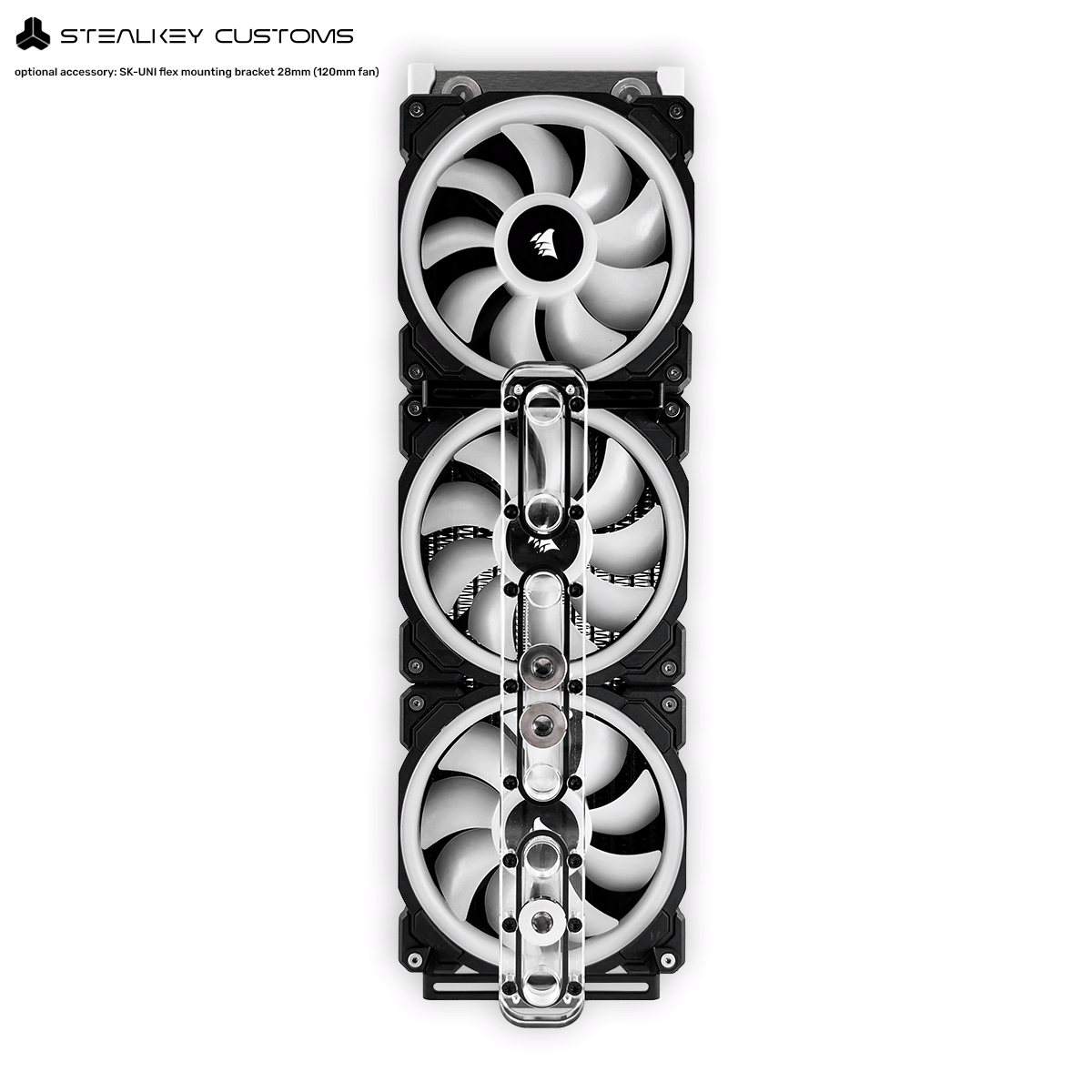

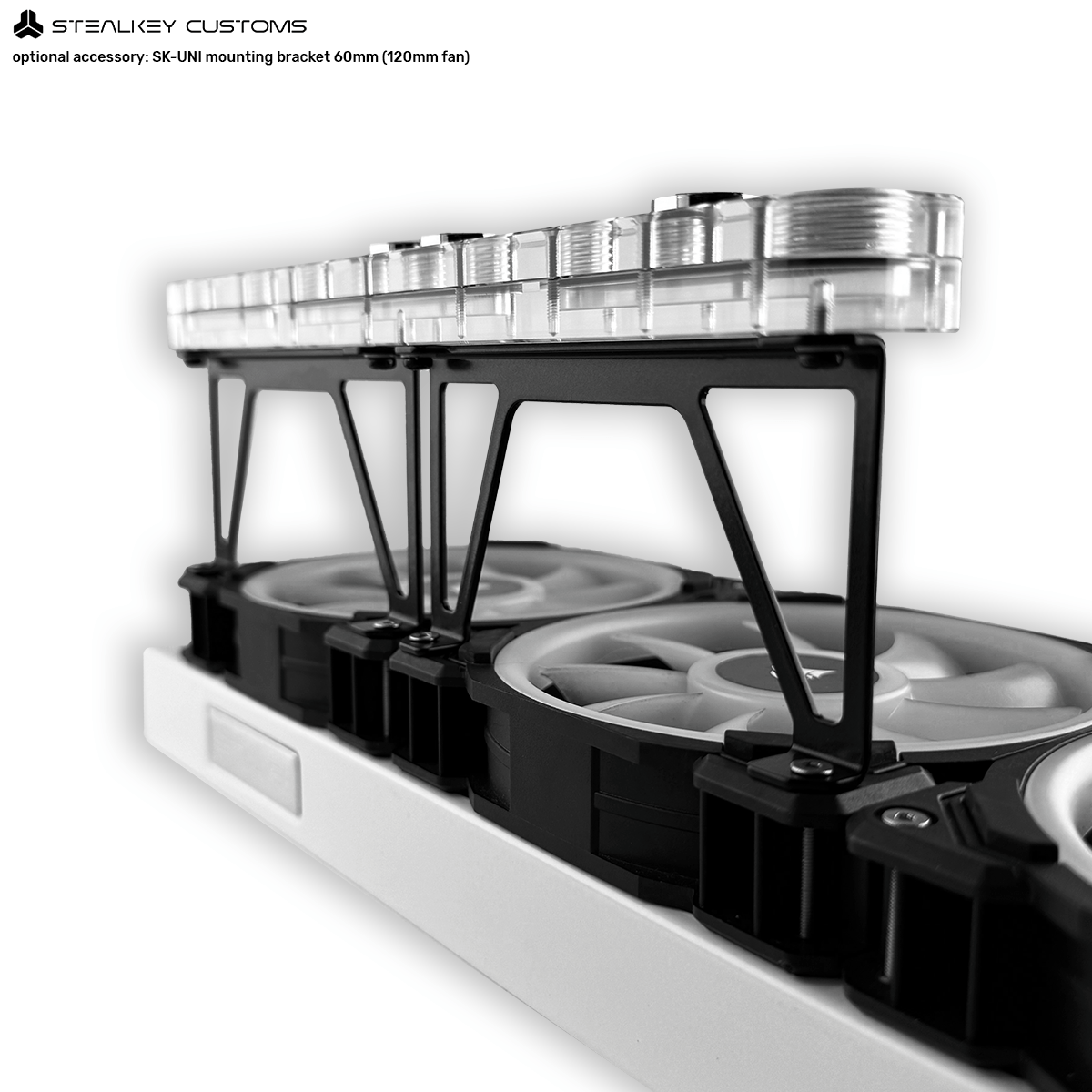

Thanks to its slim design of just 31 mm, the Cubetube Distroplate 240mm can be flexibly positioned in the case – for example, on the side or in front of a radiator or fan combo. Installation is easy with the separately available installation kit.

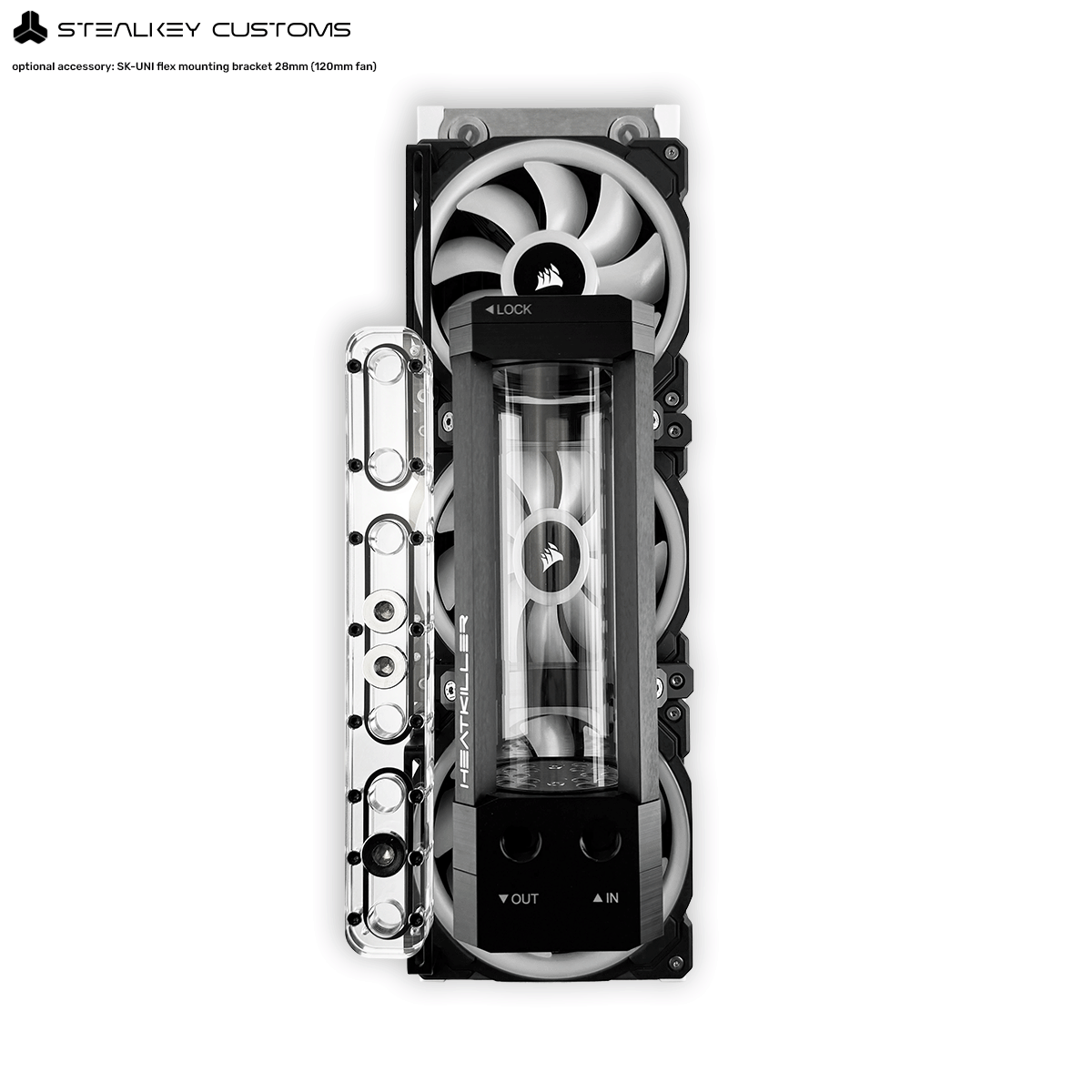

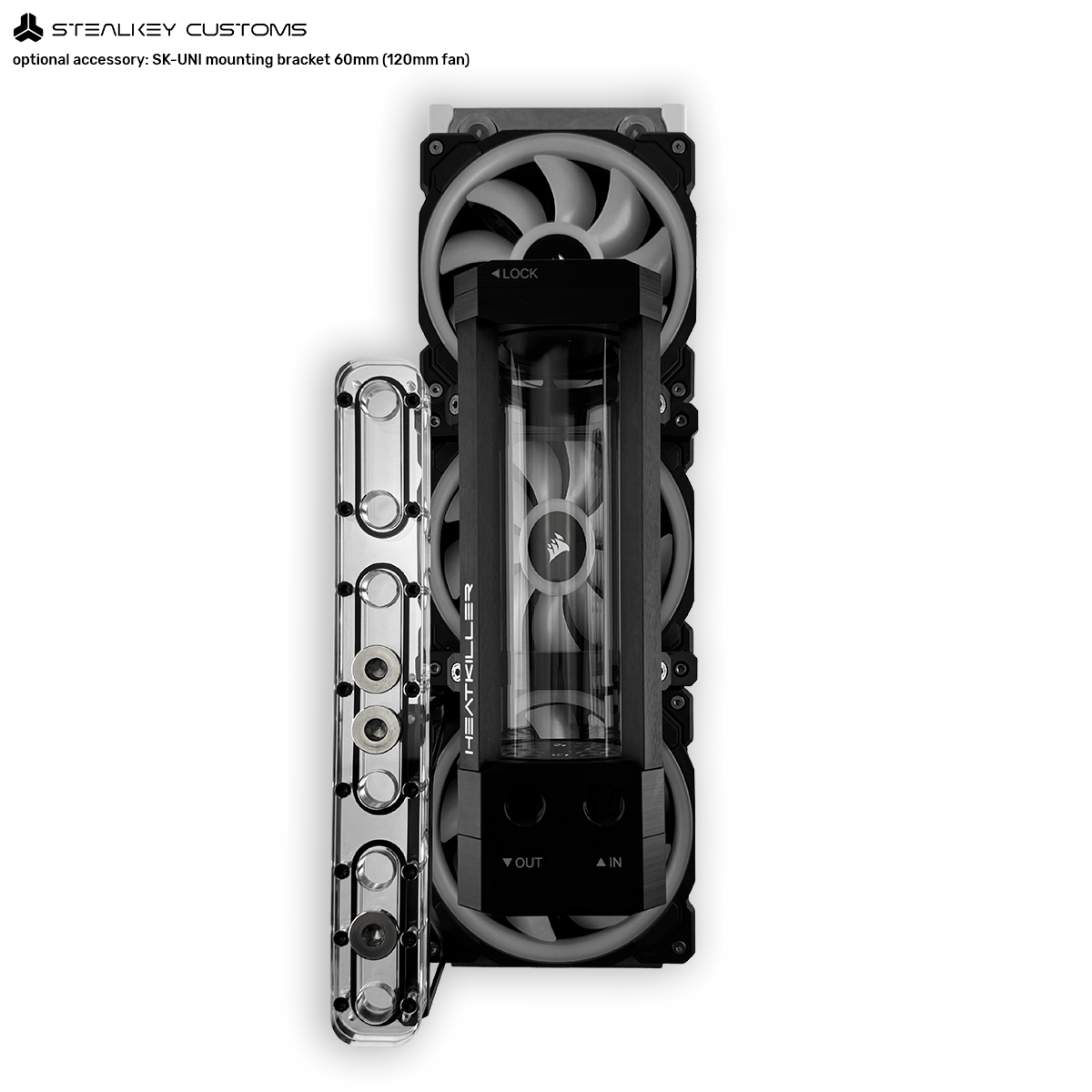

The installation kit also enables combining the Cubetube Distroplate with a tube reservoir on the same radiator/fan setup. This ensures airflow is barely affected, allowing smooth installation of a reservoir while also making it easy to integrate high-performance D5 or DDC pumps into your system.

The Cubetube Distroplate is the ideal solution for anyone looking to build a high-quality, well-thought-out, and visually appealing custom water cooling loop.

Technical Specifications of the Cubetube Distroplate 240 mm

  • CNC-milled and hand-assembled in Germany

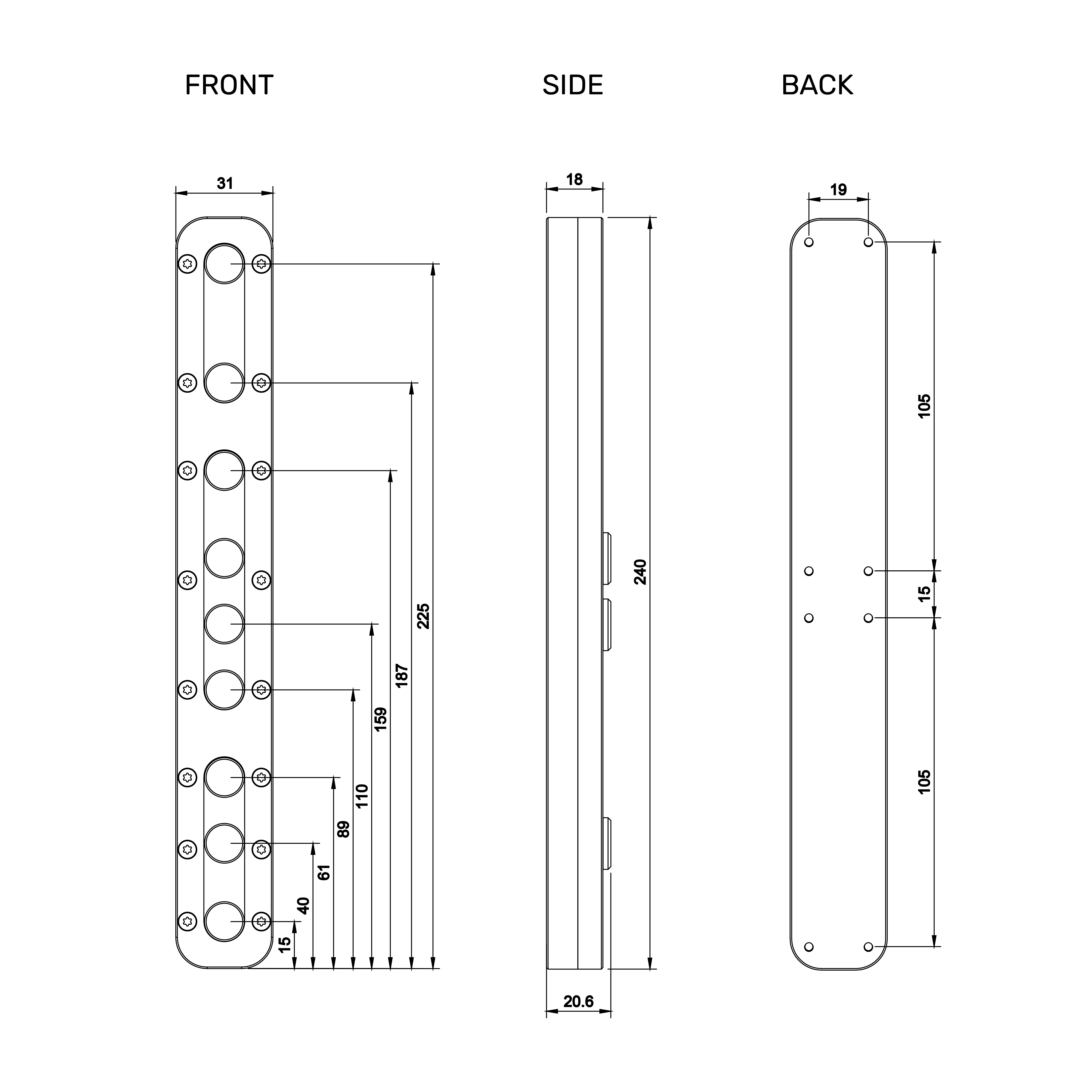

  • Product dimensions (W x H x D): 240 x 31 x 18 mm
  • Color: Transparent
  • Material: Acrylic glass
  • Supports integration of 2 radiators, CPU water block, and GPU water block
  • Ports: 9x G1/4"

Scope of Delivery

  • 1x Stealkey CubeTube Distroplate 240mm
  • 4x Mounting screws
  • 4x Washers
  • 3x Plugs

Important Note

  • Using incompatible coolants can cause damage to acrylic components.
  • Do not use alcohol-based cleaning agents or solvents to clean the reservoir or distro plates, as they can damage the acrylic.
