SK-UNI 240D Distroplate D-RGB - Black Edition

Details

The Stealkey Customs UNI 240D Distroplate offers numerous functions that make it an indispensable part of any water cooling system.
It serves as an expansion tank, efficient coolant routing system and pump solution (compatible with D5 & DDC pumps), ensuring optimal coolant delivery. The pump is mounted on the front so that the UNI 240D can be attached directly to the 240/360 mm fan bracket without additional brackets.

This not only saves space but also significantly simplifies installation. With its dimensions of 240 x 120 mm, the UNI 240D is a particularly compact pump-combo distro plate. The sleek design, complemented by the pre-installed D-RGB lighting, adds an attractive touch to any water cooling system.
The use of high-quality materials, such as glossy black combined with a transparent front plate, ensures not only aesthetic enhancement but also high quality and durability of the distro plate.
With a fill volume of 185 ml, the UNI 240D provides sufficient capacity for efficient cooling of the GPU (horizontal/vertical), CPU, and up to two radiators. This ensures optimal distribution of the cooling medium and thus reliable cooling performance.

The arrangement of the ports on the UNI 240D allows for easy use of straight tubing, further simplifying the installation and operation of the water cooling system. The UNI 240D is designed to fit into any case with a 240/360mm fan mount, regardless of the manufacturer (Lian Li, Phanteks, Fractal, etc.).

Features in detail

The Stealkey Customs UNI 240D Distroplate features a sleek design and efficient space utilization to provide maximum capacity for high-performance cooling. It is optimally prepared for the installation of D5 and DDC pumps and allows for the use of covers for these pump models.
The pump placement in the UNI 240D is designed to fit into all cases, especially Phanteks models (NV9/NV7/NV5), without colliding with the lower radiator bracket. This ensures a smooth installation and use of the distroplate.

At Stealkey Customs, prioritizing the use of high-quality materials is paramount. We guarantee consistently high quality and durability of our products.

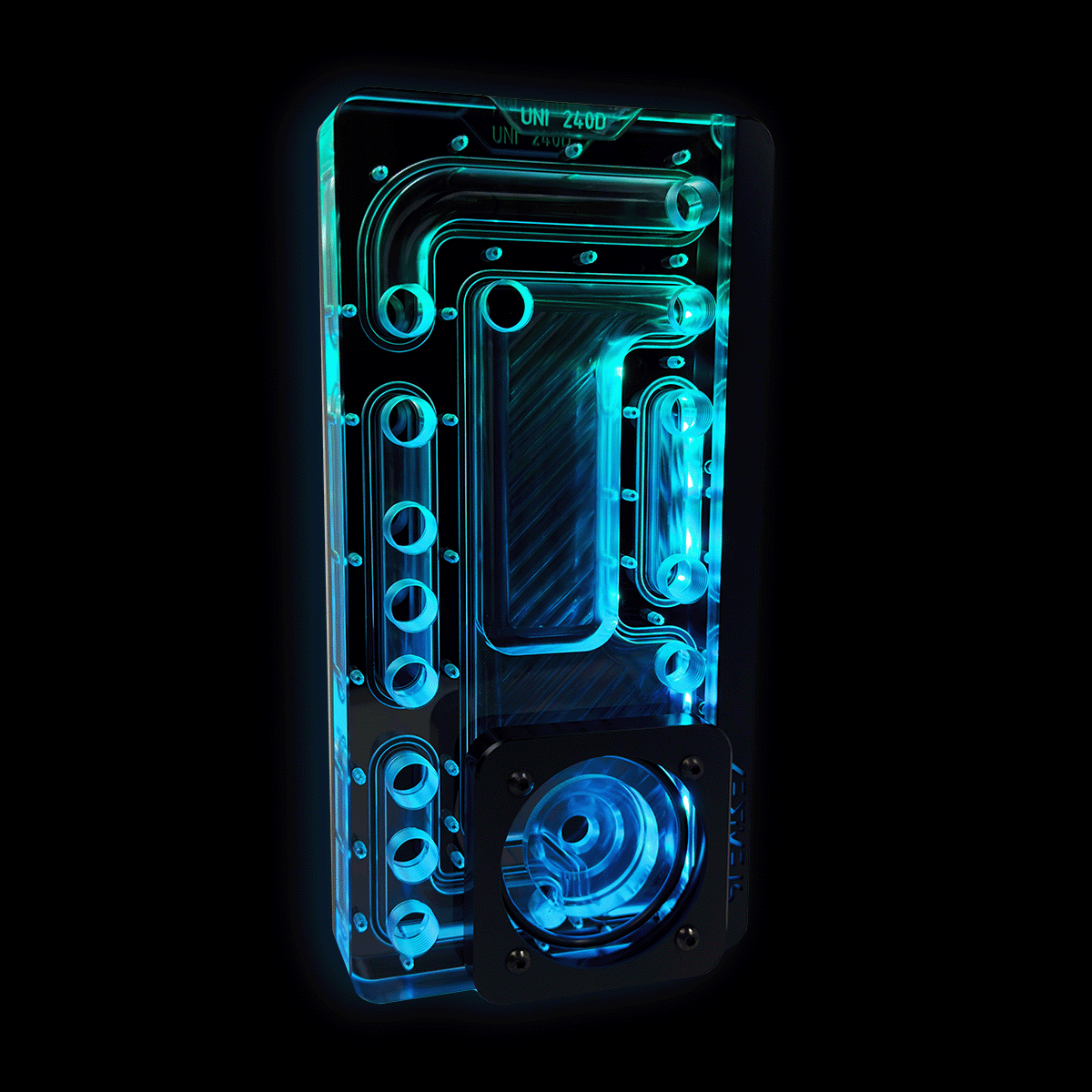

The UNI 240D is equipped with an addressable D-RGB LED strip that runs the entire length and is covered by a black POM cover to prevent unwanted LED hotspots. The integrated LED strip seamlessly connects to the motherboard's 3-pin 5V header and is compatible with leading RGB software solutions.

Features at a glance

• addressable RGB stripe incl. 3 Pin
• Versatile functionality (pump-combo-distroplate)
• Front-mounted pump
• Slim and compact design
• Mounting on 240mm and 360 mm standard fan slot
• High-quality materials
• Universal compatibility (D5 & DDC Pump)

Technical details

• Product dimensions:(B x H x T): 120 x 240 x 33 mm
• Color: Black and Transparent
• Material: acrylic, plastic
• Ports: 14x G1/4"-Ports
• Fill volume: 185ml
• D-RGB Cable length: 500mm

Delivery scope

• 1x UNI 240D
• 8x M3x6mm Mounting screws
• 1x D5 ring
• 1x D5 o-ring
