SC ResPro 120 D5/DDC D-RGB
Versandfertig 1-3 Tage
Details

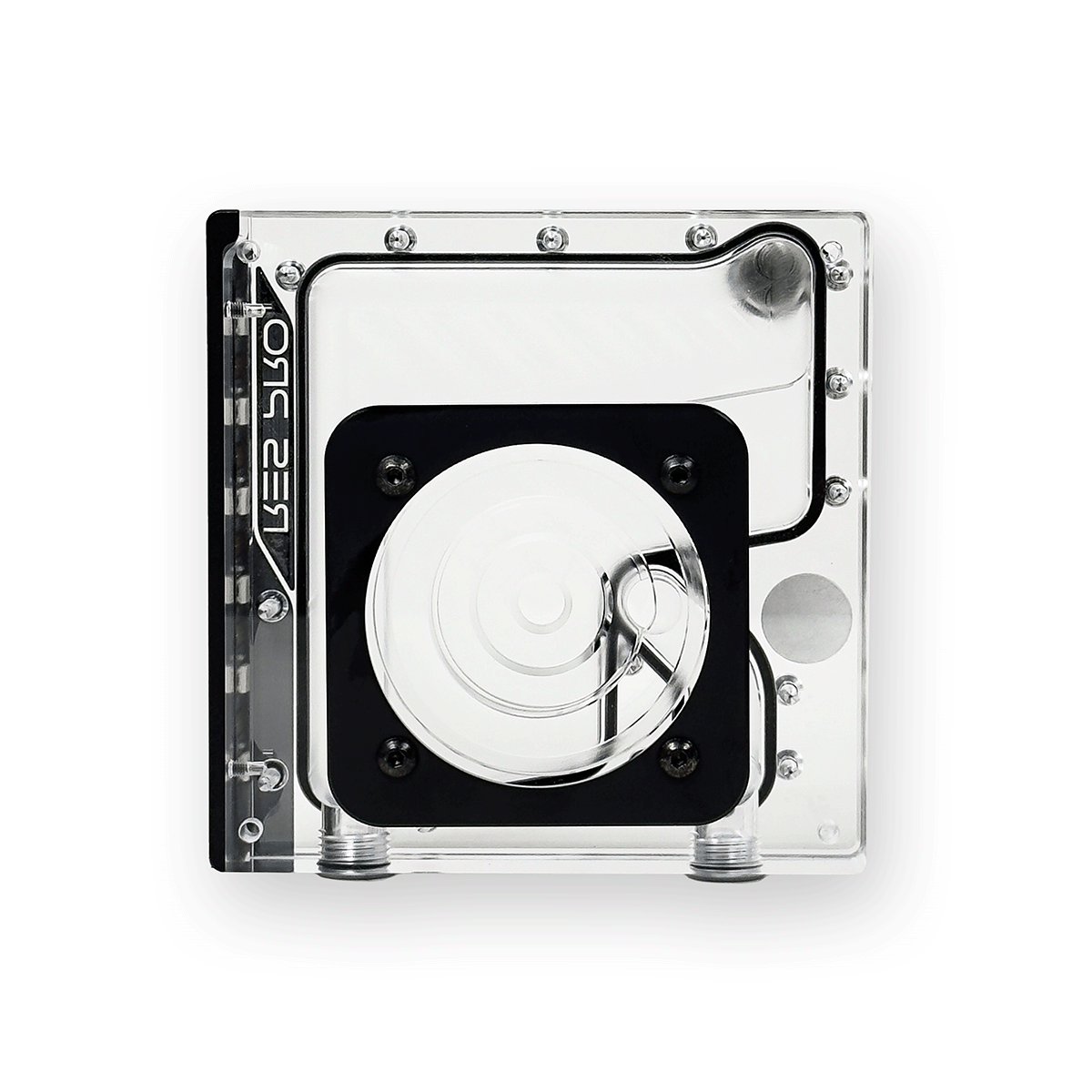

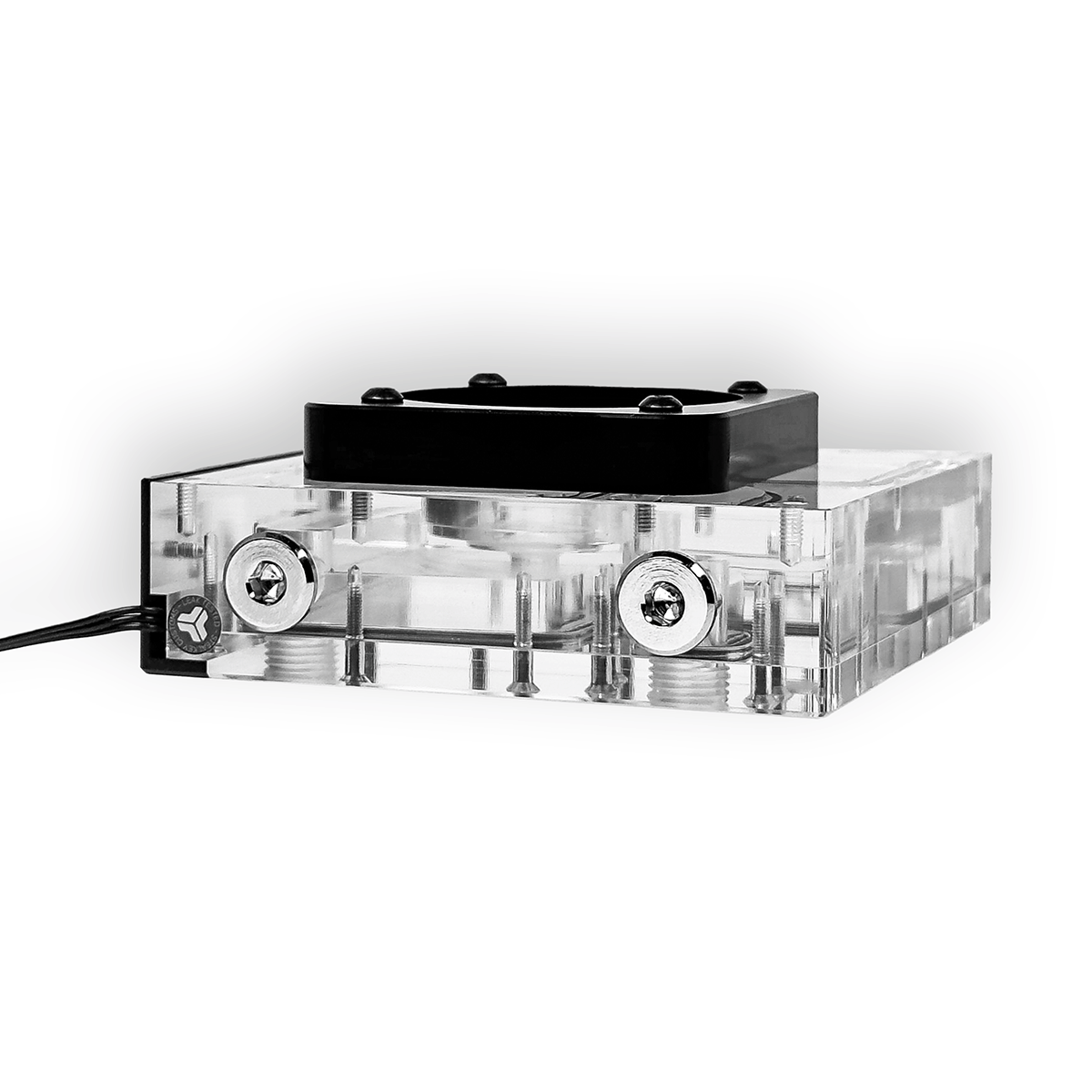

The SC ResPro 120 D5/DDC D-RGB is a versatile pump/reservoir combo in a modern flat design.
It is compatible with both D5 and DDC pumps and offers flexible integration into a wide variety of water cooling setups thanks to a total of 5x G1/4-inch ports.
Mounting the ResPro Series
The ResPro Series models 95 mm, 120 mm, 240 mm, and 360 mm are mounted using standardized 120 mm fan mounting holes (105 mm hole spacing). The ResPro 140 mm and 280 mm models are mounted using standardized 140 mm fan mounting holes (125 mm hole spacing). This ensures easy installation and broad compatibility with most cases – whether on radiators, case panels, or using special mounting brackets.

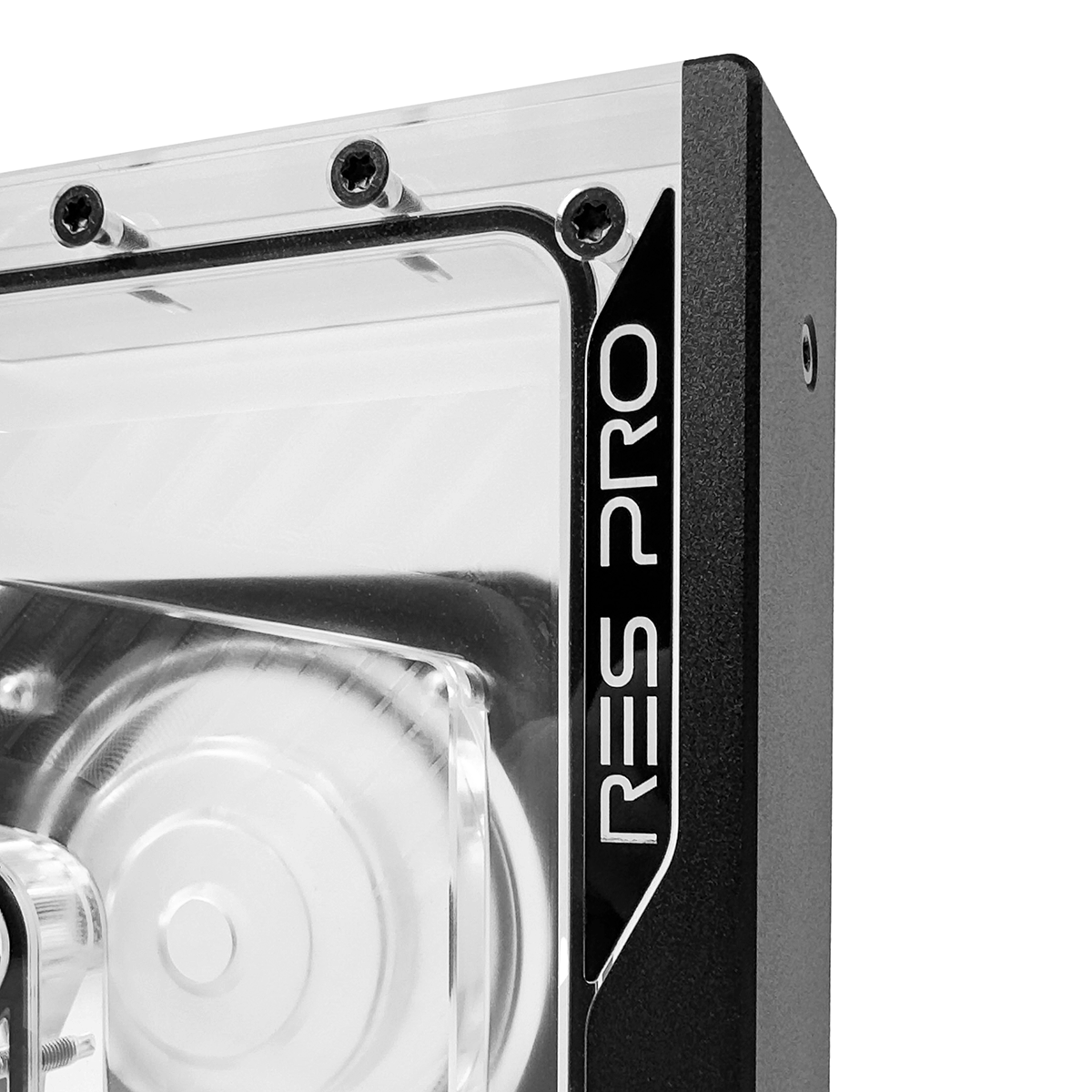

Manufactured from precisely milled acrylic. The front panels of the ResPro Series are made from 8 mm acrylic GS material to prevent stress cracking. A high-quality black anodized aluminum cover on the side hides the D-RGB lighting. The SC ResPro 120 combines clear aesthetics with robust functionality.
The integrated addressable D-RGB lighting ensures uniform illumination without annoying LED hotspots and can be easily maintained or replaced if needed.
A specially manufactured EPDM gasket ensures permanently reliable sealing. The flat form factor and well-thought-out port placement make the ResPro 120 the ideal choice for space-saving builds or demanding custom loops.
Whether you're planning a minimalist show build or a performance-focused workstation setup – the SC ResPro 120 D5/DDC D-RGB is the perfect choice.
Coolant Notice
For safe and long-lasting operation, only suitable coolant should be used. This protects the distro plate from material damage and reliably prevents corrosion, deposits, and leaks in all water cooling components. A compatibility list of recommended coolants is available.
Technical Details of the ResPro 120
- CNC milled and hand-assembled in Germany
- Product dimensions (W x H x D): 120 x 120 x 33 mm
- Color: transparent acrylic, black anodized aluminum cover
- Material: acrylic glass, anodized aluminum cover
- Reservoir volume: approx. 110 ml (chamber + channel)
- D-RGB cable length: 500 mm

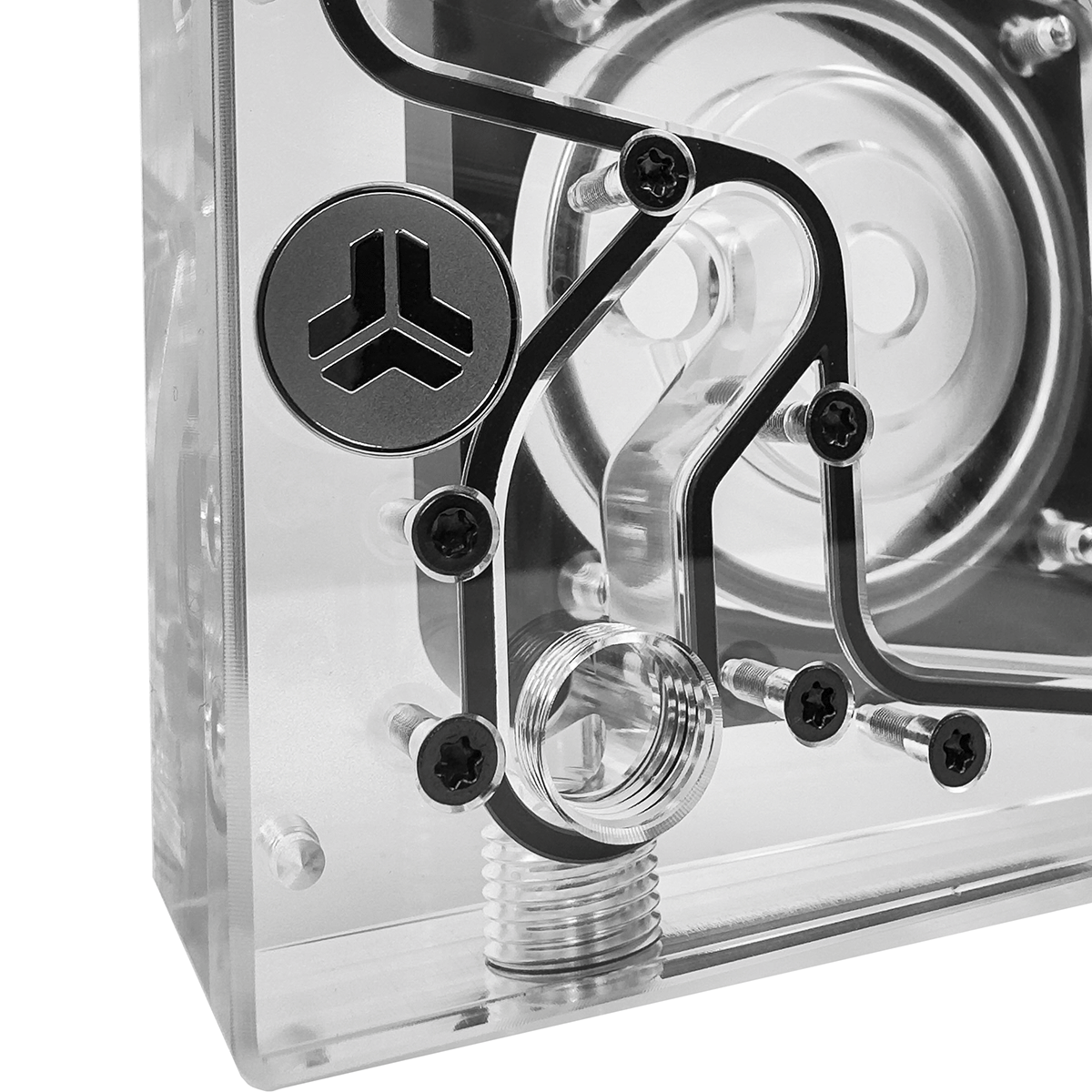

- Ports: 5 x G1/4" connections
- Mounting: 4 x M4 screws for installation in a 120 mm fan slot (Recommended: SK-UNI mounting bracket 60 mm (120 mm fan) for D5 pumps & SK-UNI mounting bracket 28 mm (120 mm fan) for DDC pumps)
Scope of Delivery
- 1x SC ResPro 120 D5/DDC D-RGB (without pump)
- 4x M4 mounting screws
- 3x G1/4 plugs
Important Notice
- Compatible with any case that has a 120 mm fan mount.
- D5 or DDC pump is not included.
- The use of incompatible coolants can cause damage to acrylic components.
- DDC or D5 pumps are water-lubricated and must not run dry; otherwise, permanent bearing damage may occur.
- Do not use alcohol-based cleaners or solvents to clean the reservoir or distro plates, as they may damage the acrylic.
