SC DisPro 240R Rear Distroplate D5/DCC D-RGB

Details

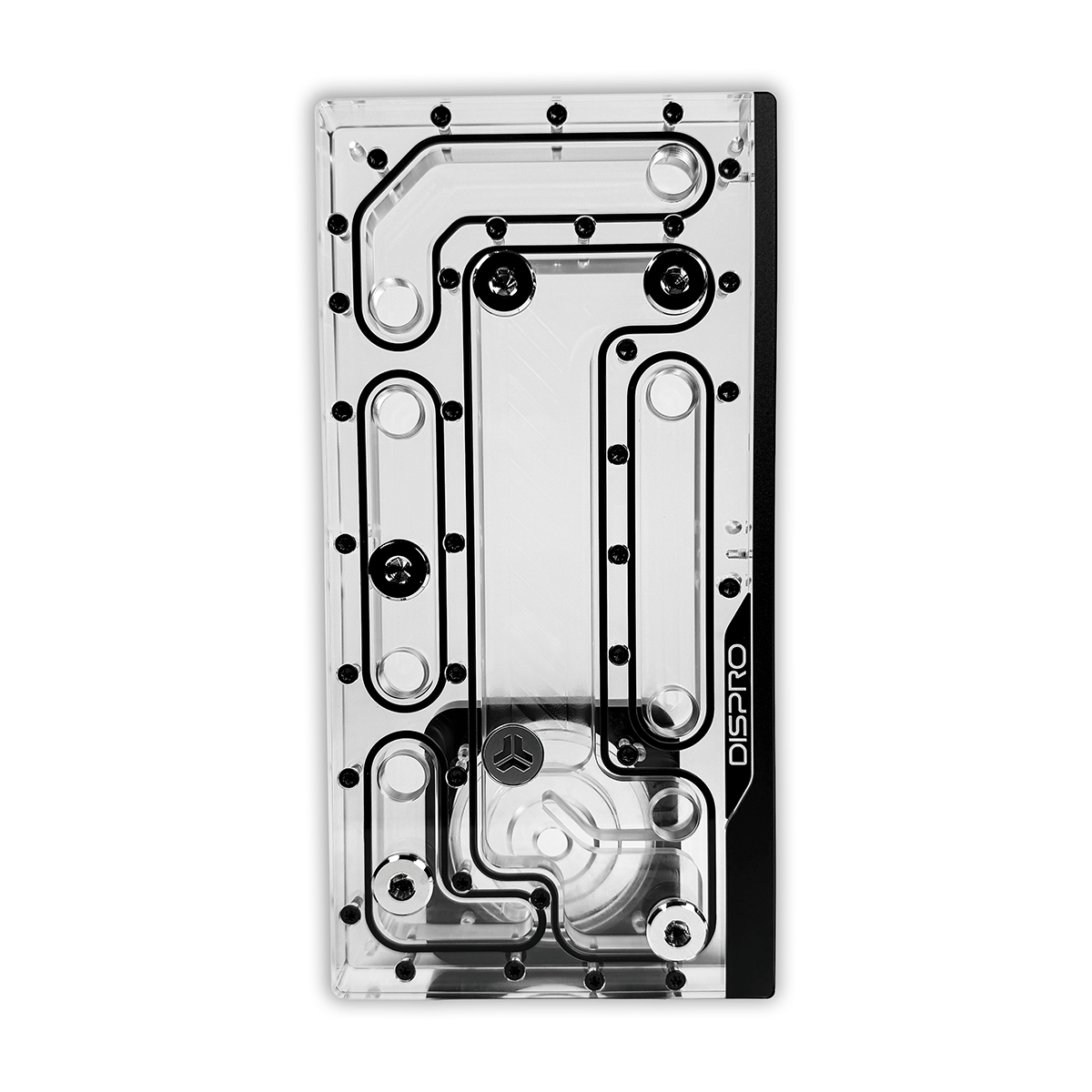

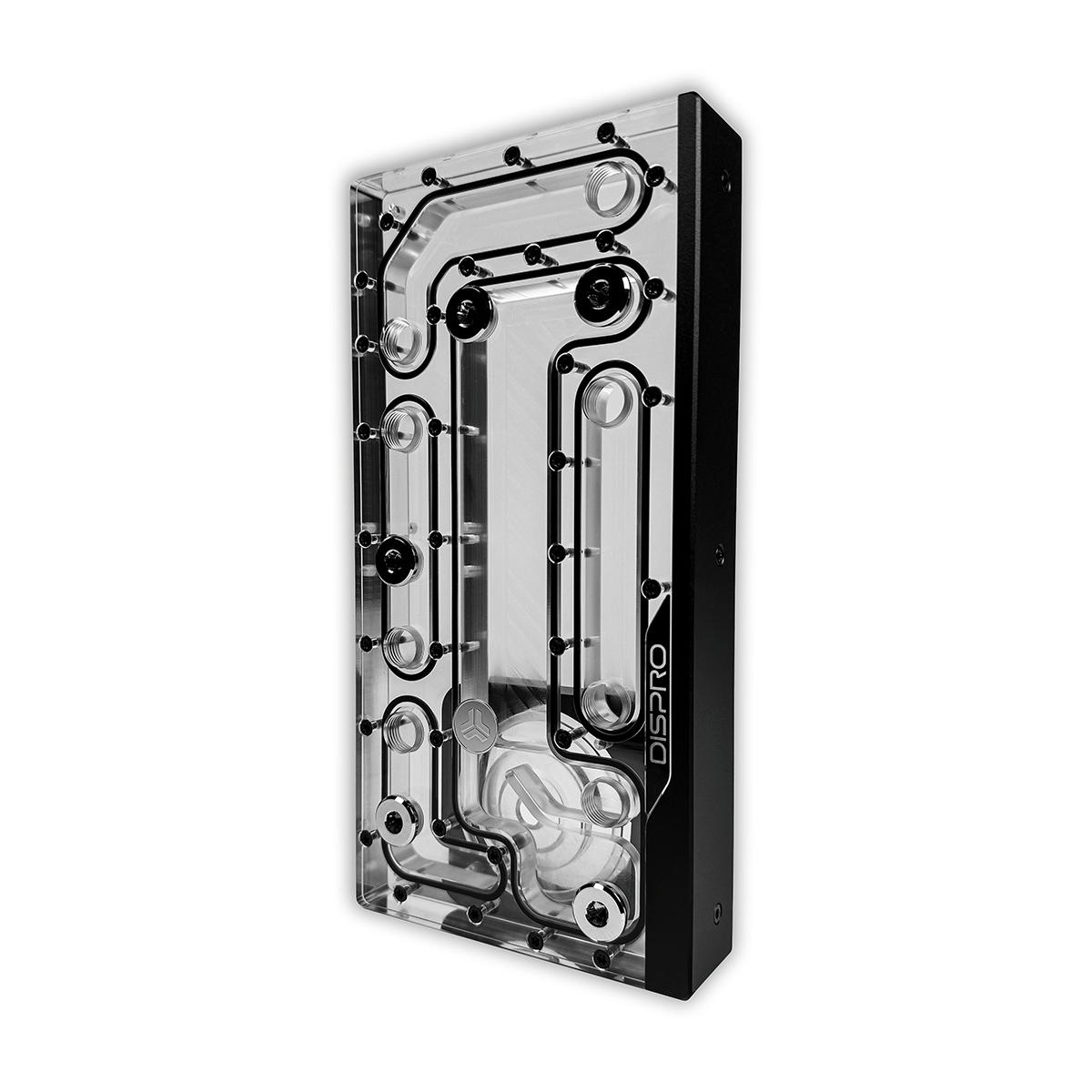

Elevate your PC modding to the next level with the SC DisPro 240R Distroplate. Specifically designed for enthusiasts who value a flawless front aesthetic, this distroplate enables a clean look by cleverly relocating the pump to the rear.

Minimalist Design for High-End Builds

The SC DisPro 240R serves as a high-efficiency reservoir and distribution hub. By optimizing connection paths, you reduce clutter within the chassis. Long, unsightly tubing runs or complicated hard-tube bends are replaced by the linear design of this 240mm distroplate, making your build look professional instantly.

Rear Pump Mount: Maximum Freedom

The key advantage of the R-version (Rear) is the positioning of the pump. While other solutions occupy valuable space in the visible area, the pump on the SC DisPro 240R disappears discreetly onto the back. You still maintain full freedom of choice:

• D5 Compatibility: Ideal for complex loops requiring high flow rates and absolute silent operation.
• DDC Option: Perfect for compact systems where every centimeter must be used efficiently.

Would you prefer to showcase the pump as a visual highlight on the front? Then check out the SC DisPro 240D.

Synchronized D-RGB Lighting

Despite the minimalist approach, you don't have to sacrifice lighting effects. The integrated 5V Digital-RGBs perfectly showcase the high-quality acrylic glass. Thanks to the universal 3-pin connector, control via all common motherboard software like ASUS Aura or MSI Mystic Light is effortless.

Benefits of the SC DisPro 240R:

• Clean-Front Look: Pump is mounted hidden on the rear side.
• Universal Mounting: Compatible with all standard 240mm (2x120mm) fan mounting positions.

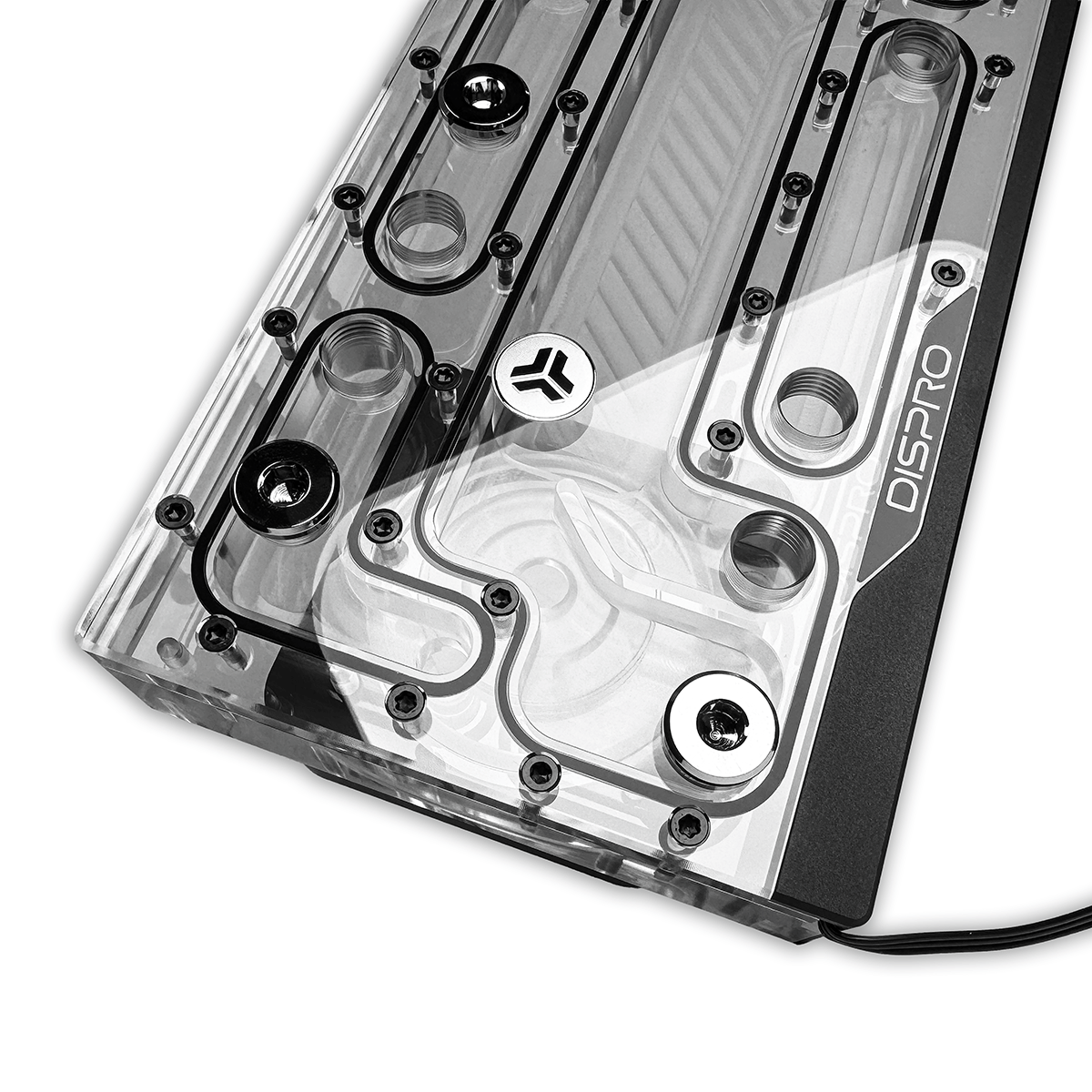

• Premium Craftsmanship: Precision acrylic glass, built for durability and brilliance.
• Flexible System: 13x G1/4" ports for maximum freedom in tube routing.

Technical Specifications

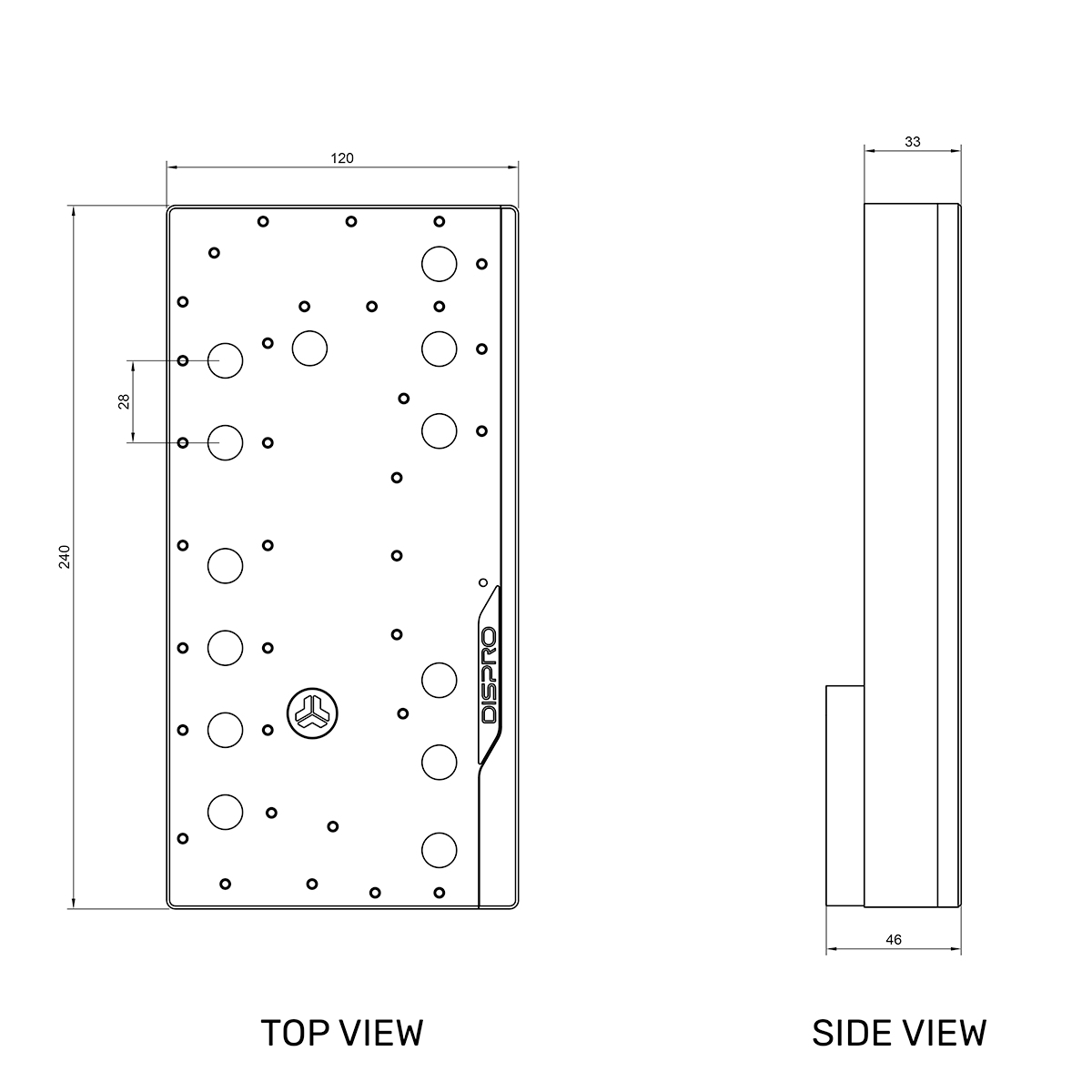

• Dimensions (W x H x D): 240 x 120 x 33 mm
• Material: High-quality acrylic glass, black anodized aluminum cover
• Ports: 13x G1/4 inch threads
• Capacity: approx. 150 ml
• Lighting: 500 mm D-RGB cable (5V adr.)
• Origin: Designed & Made in Germany
• Mounting: 4x M4 screws for installation in a 120 mm fan slot (Recommended: SK-UNI mounting bracket 60 mm for D5 pumps & SK-UNI mounting bracket 28 mm for DDC pumps)

Scope of Delivery

• 1x SC DisPro 240R Distroplate
• 4x M4 Mounting screws
• 5x G1/4 Plugs
