Phanteks NV9 x Stealkey Distroplate D-RGB
Ready to ship 1-3 days
Details

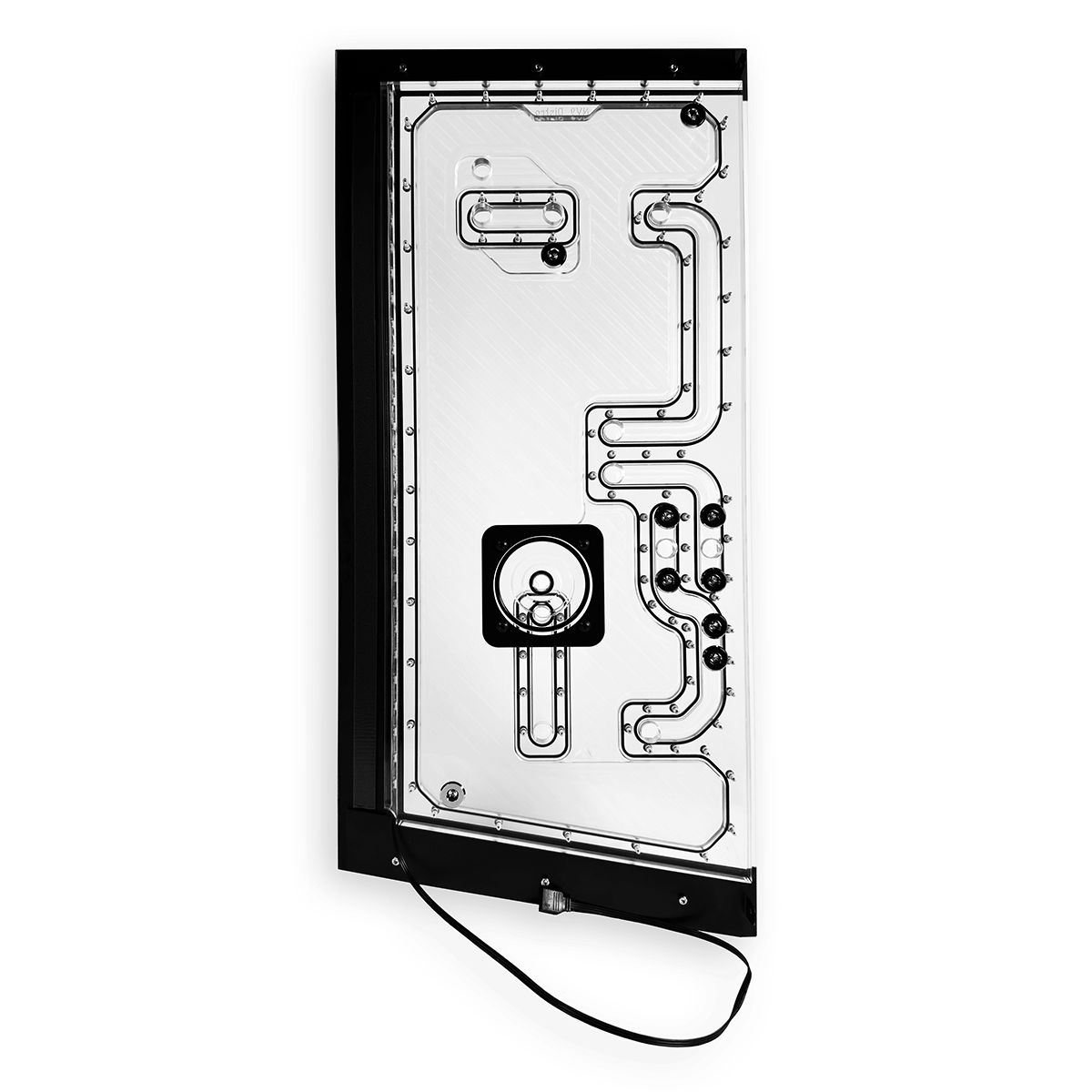

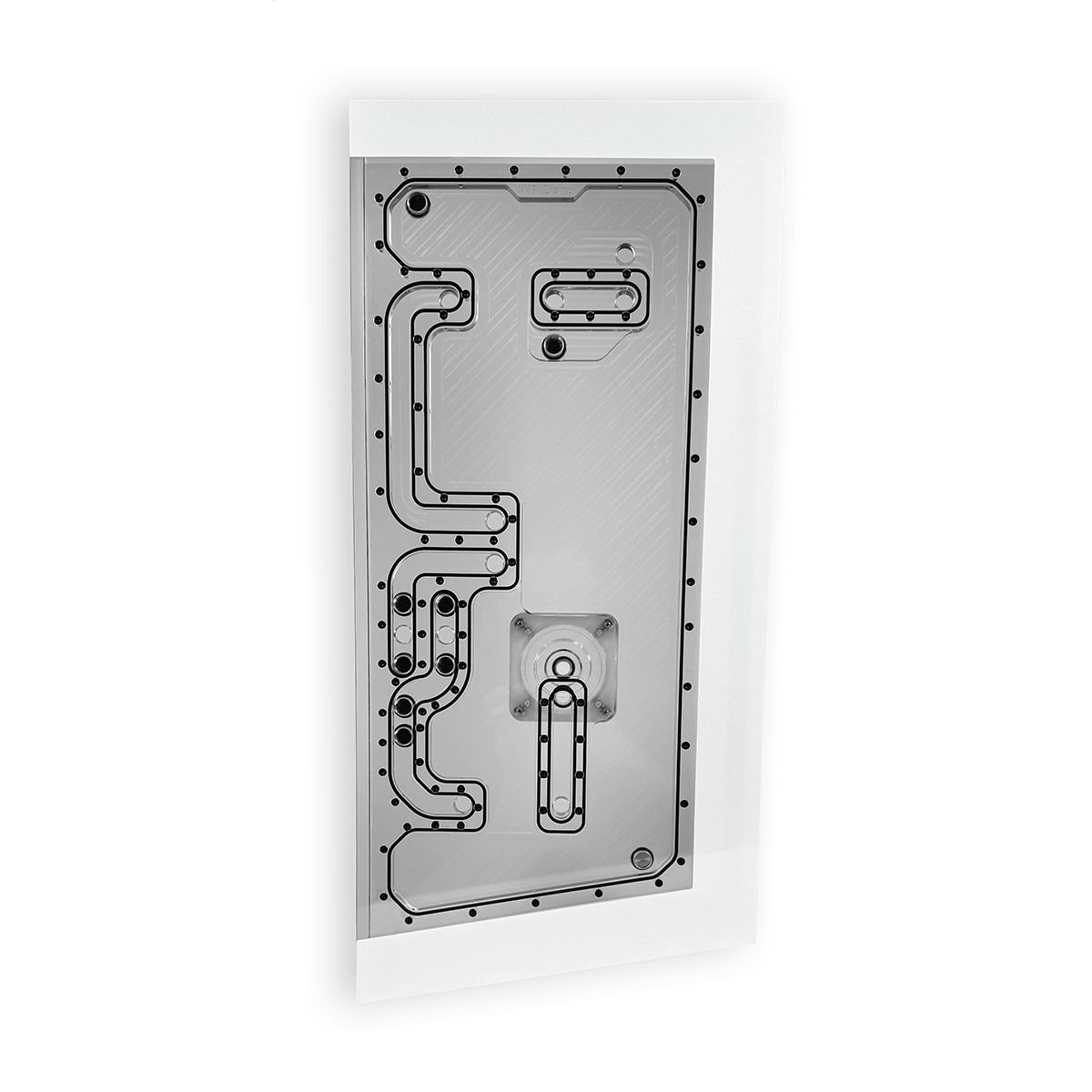

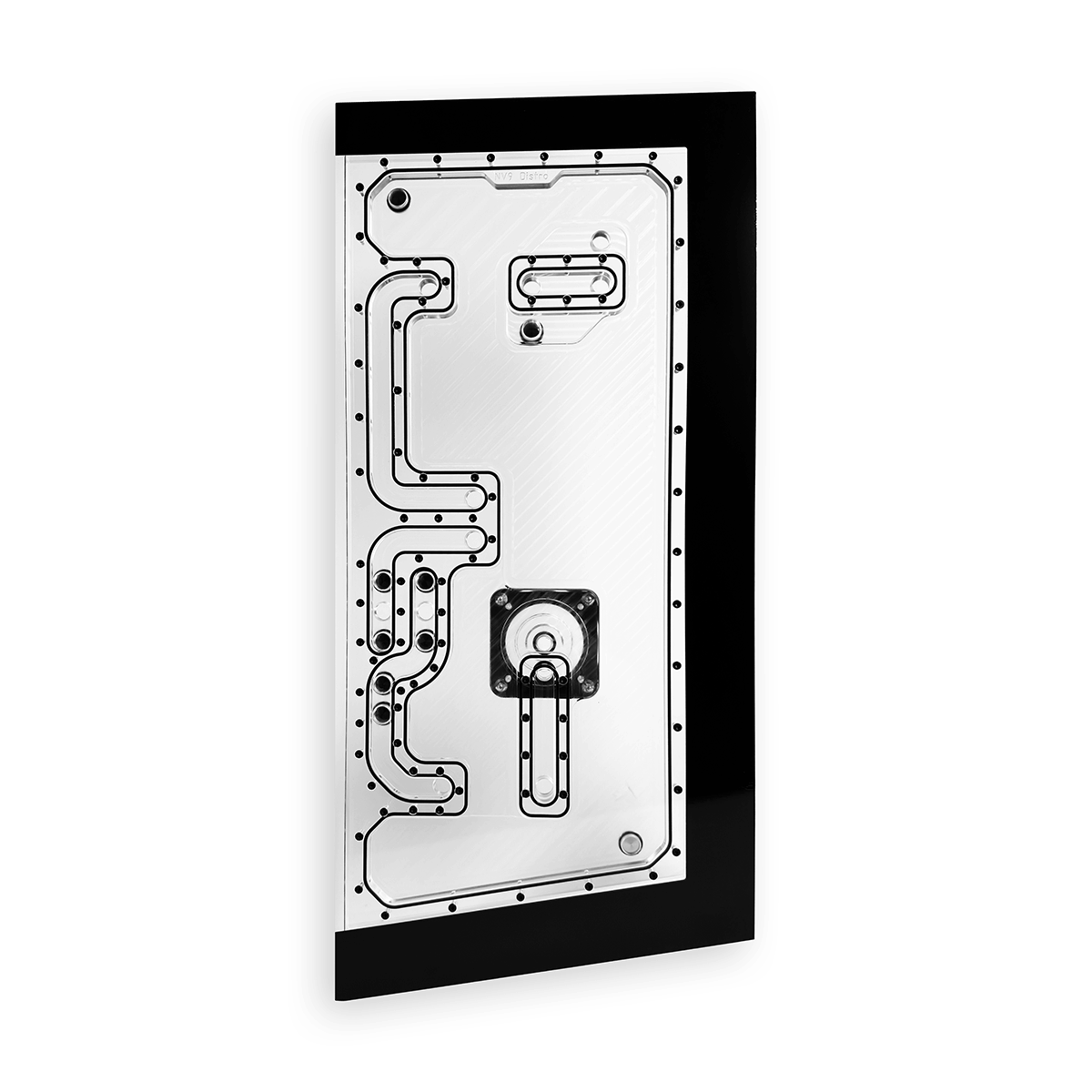

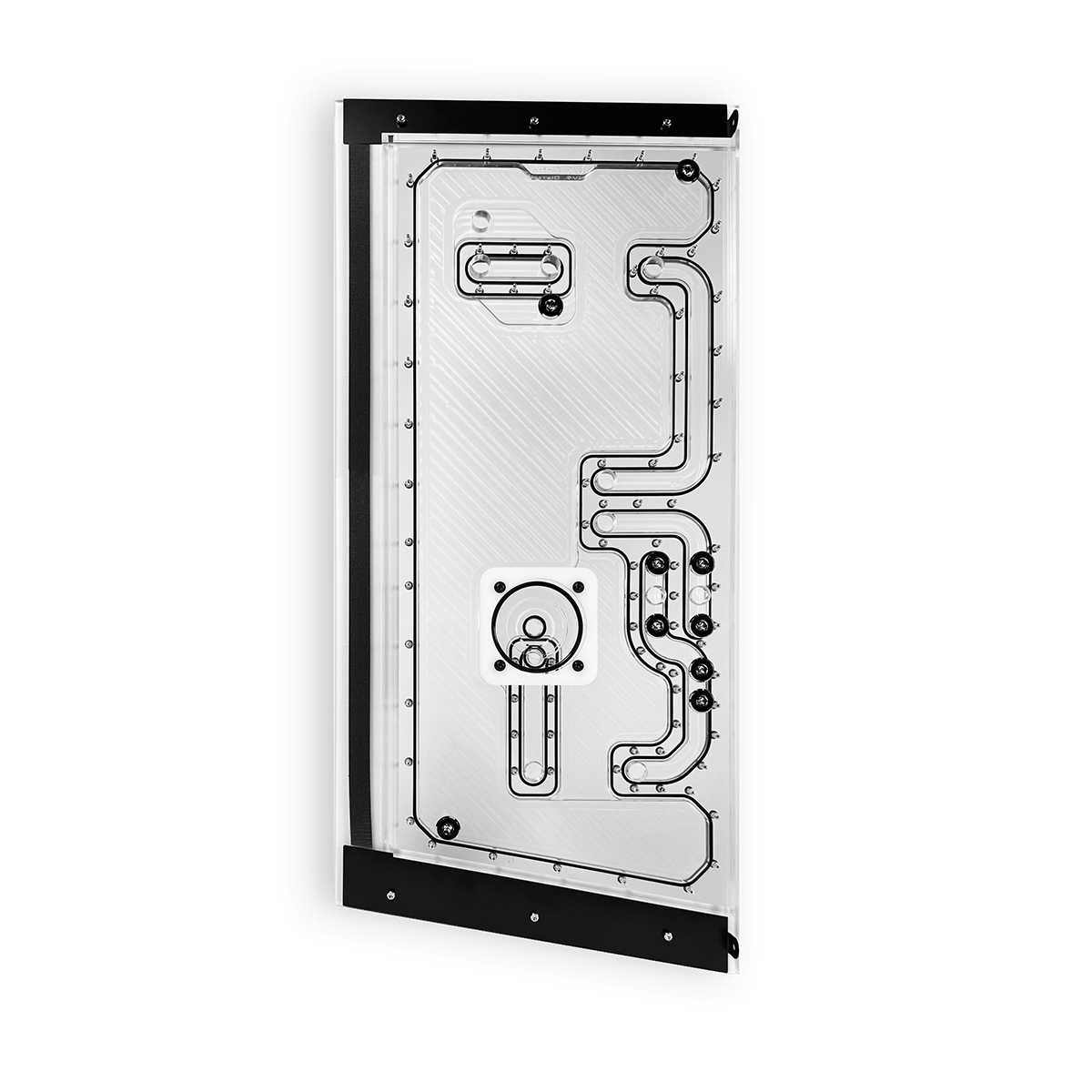

The Phanteks NV9 x Stealkey Distroplate D-RGB is the foundation for your high-end custom water cooling setup for the Phanteks NV9 case (without RGB kit). It combines reservoir, coolant routing, and pump solution into one premium component for your PC water cooling system.

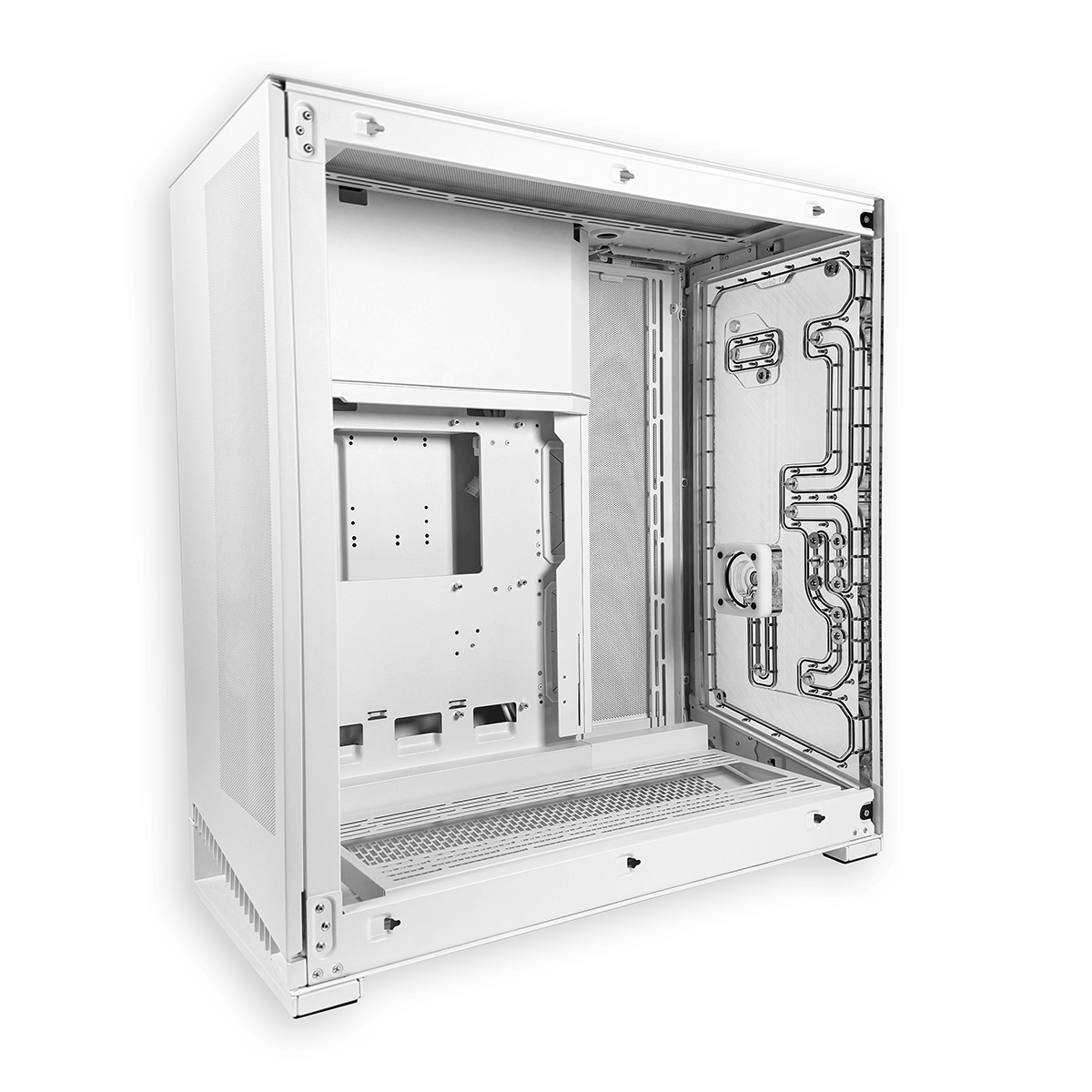

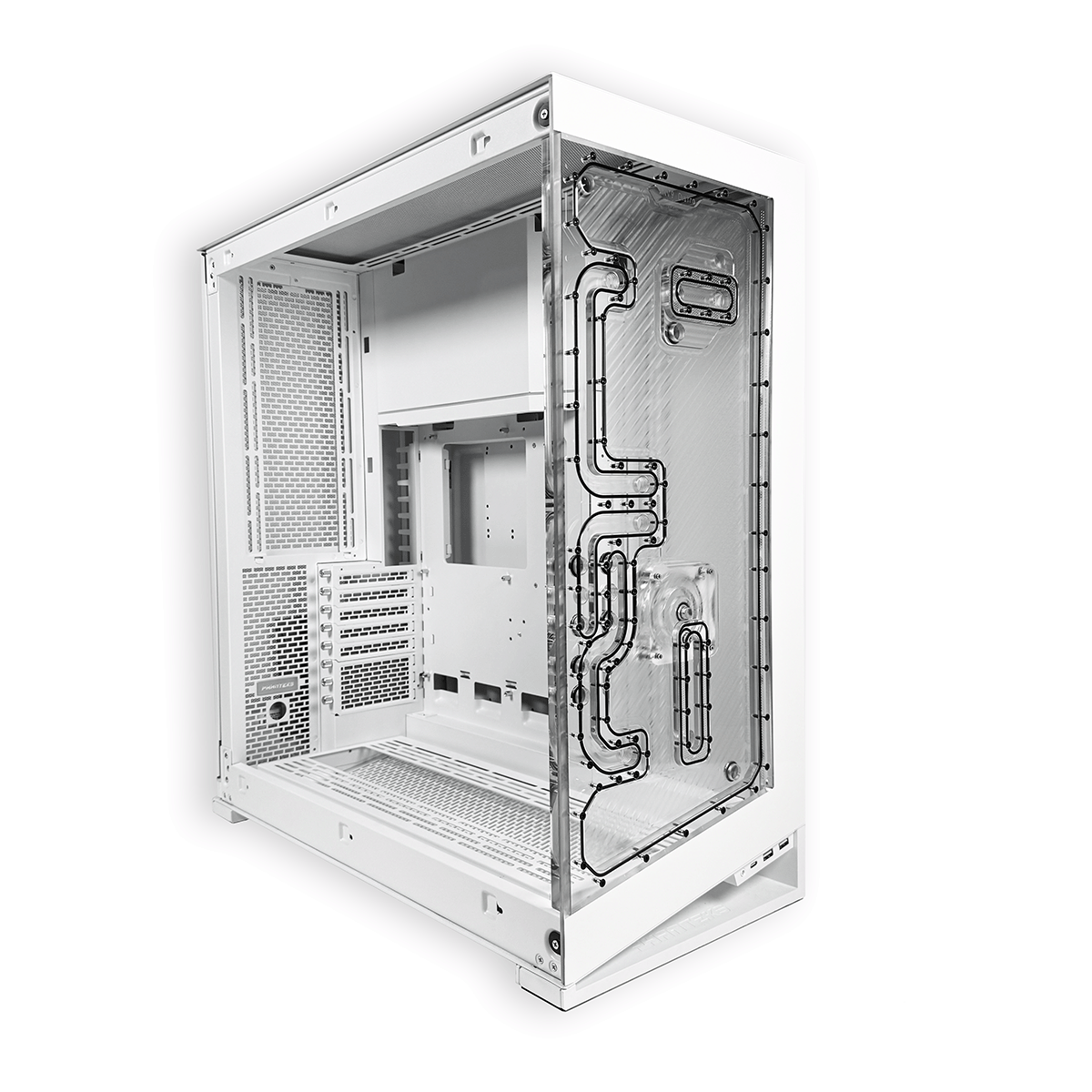

This front distroplate replaces the original front glass of the NV9 case and is mounted identically using specially designed steel brackets. No case modifications or additional mounting hardware are required during installation.
Thanks to the included adapter, the distroplate is compatible with both D5 and DDC pumps. A D5 pump is secured using a POM ring, while the DDC pump can be mounted directly – offering maximum flexibility when planning your water cooling loop.

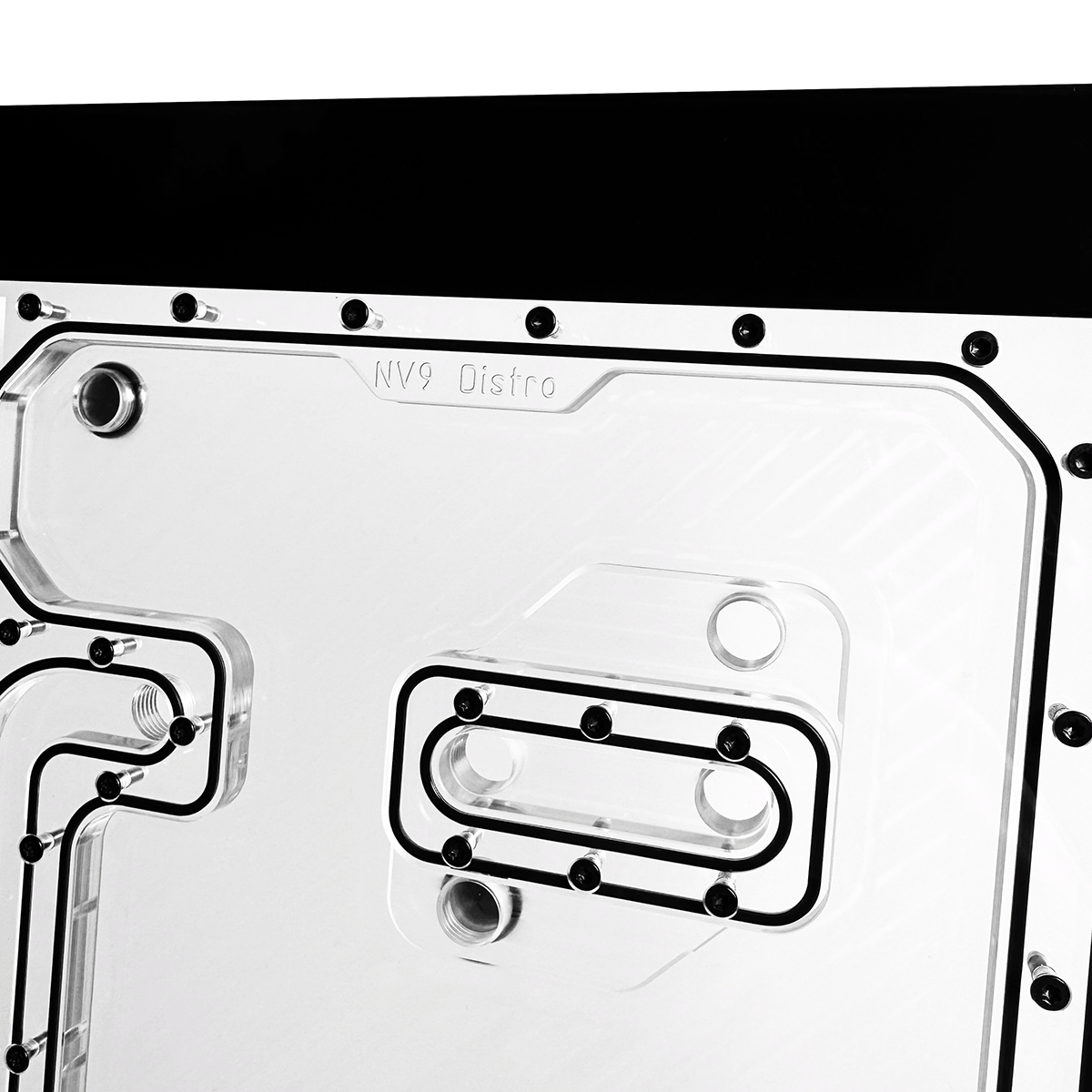

The NV9 Distroplate is made of clear, high-quality acrylic and undergoes a precise manufacturing process including CNC machining, assembly, and quality control. With 19x standard G1/4-inch ports, the NV9 front distroplate provides maximum flexibility in your water cooling setup – ideal for GPU (horizontal or vertical), CPU, and up to three 420 mm radiators with minimal tubing bends. This unleashes the full potential of the NV9 case, ensuring your hardware remains perfectly cooled even under high load – whether for high-end gaming or professional workloads.
In addition to its functional features, the distroplate also delivers a premium aesthetic, supported by integrated D-RGB lighting across the entire plate. The D-RGB lighting is controlled via the 5V RGB header on your motherboard.
Radiator and Fan Compatibility
- Bottom: 360/420 mm radiator up to 48 mm thick + 30 mm fans (PushPull possible)
- Top: 360/420 mm radiator up to 48 mm thick + 30 mm fans (PushPull possible)
- Side: 360/420 mm radiator up to 48 mm thick + 30 mm fans
Recommended Radiators
- Bottom: Watercool HEATKILLER RAD 360-L
- Top: Watercool HEATKILLER RAD 360-L
- Side: Watercool HEATKILLER RAD 360-L
Technical Specifications of the NV9 Distroplate
- CNC-milled and hand-assembled in Germany
- Product dimensions (W x H x D): 592 x 276 x 52 mm
- Color: Transparent
- Material: Acrylic glass
- Supports integration of up to 3 radiators, one CPU water block, and one GPU water block
- Ports: 19x G1/4" connections
Scope of Delivery
- 1x Phanteks NV9 x Stealkey Distroplate D-RGB
- 9x SK-Plug G1/4 inch Stop Fittings - Silver
Important Notice
- Using incompatible coolants may damage acrylic components.
- Only compatible with the Phanteks NV9 case.
- DDC or D5 pumps are lubricated by coolant – running them dry may cause permanent bearing damage.
- Tighten fittings into the distroplate only by hand.
- Do not clean the reservoir or distroplates with alcohol-based cleaners or solvents, as they can damage the acrylic.
