Lian Li O11 Dynamic EVO XL x Stealkey Crosscool II Distribution Plate

Details

Distro Plate for 3x 420mm Radiators in the O11D EVO XL

The Lian Li Crosscool II is the ultimate solution for high-end water cooling in the O11D EVO XL. As a consistent further development of our Crosscool series, this distro plate offers maximum flexibility for enthusiasts.

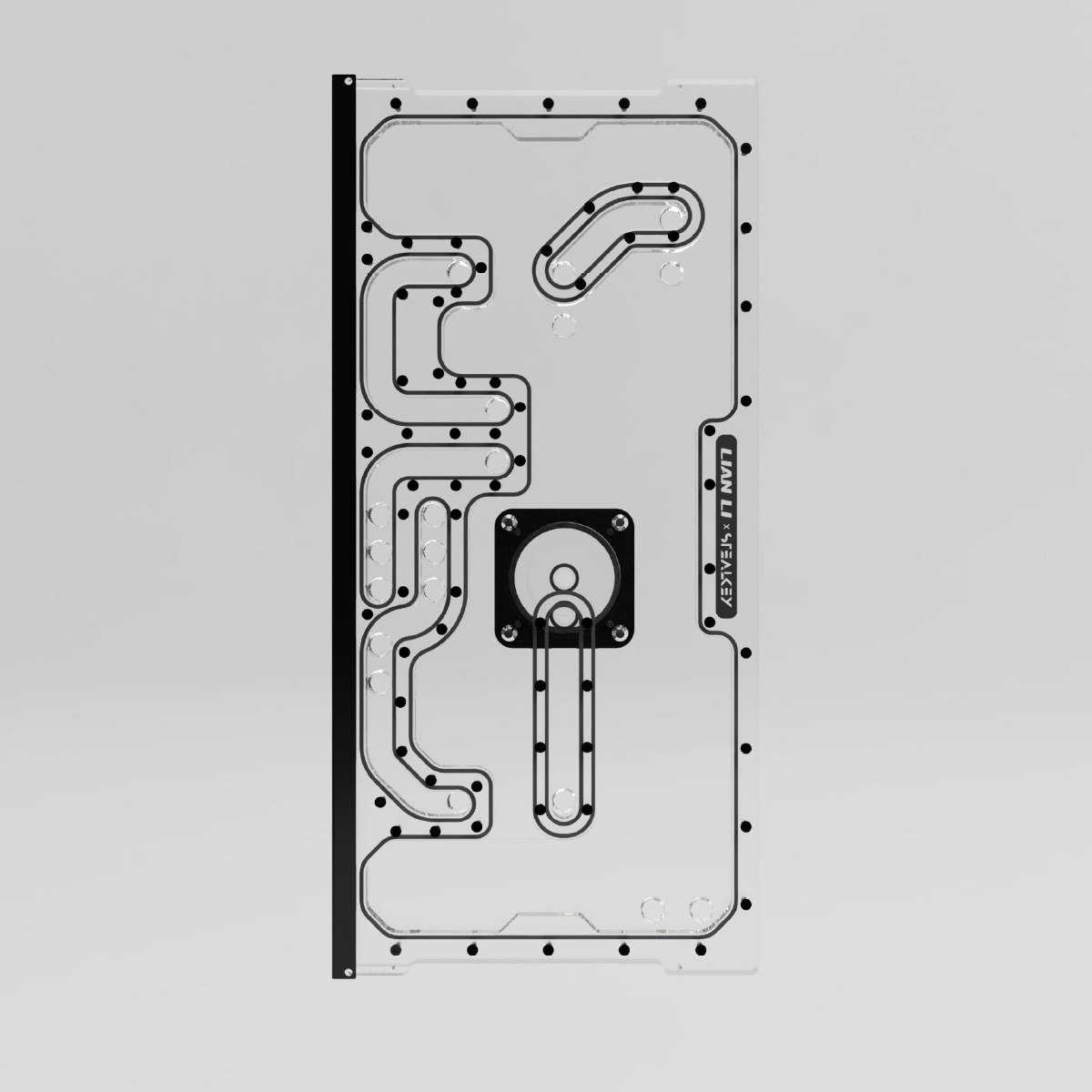

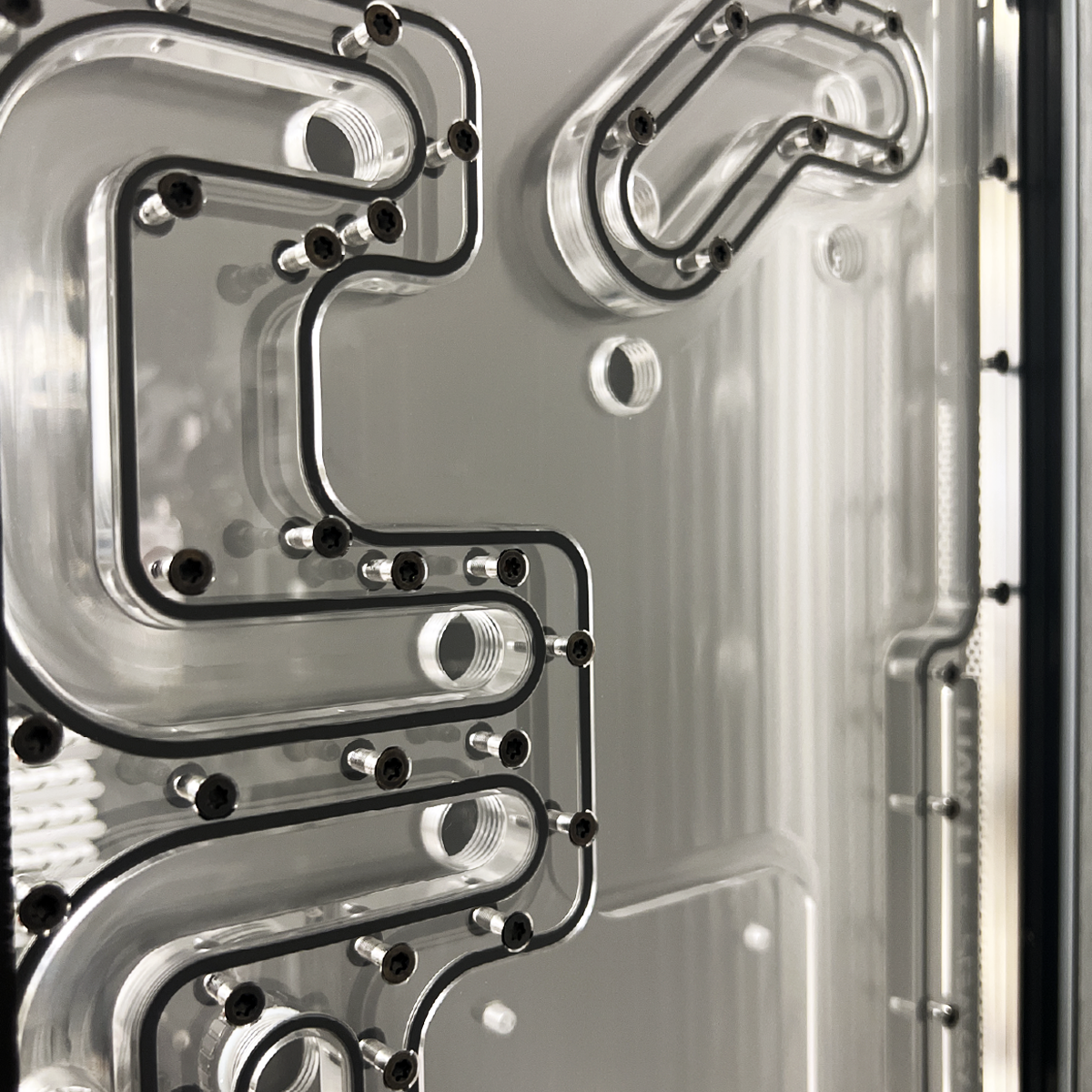

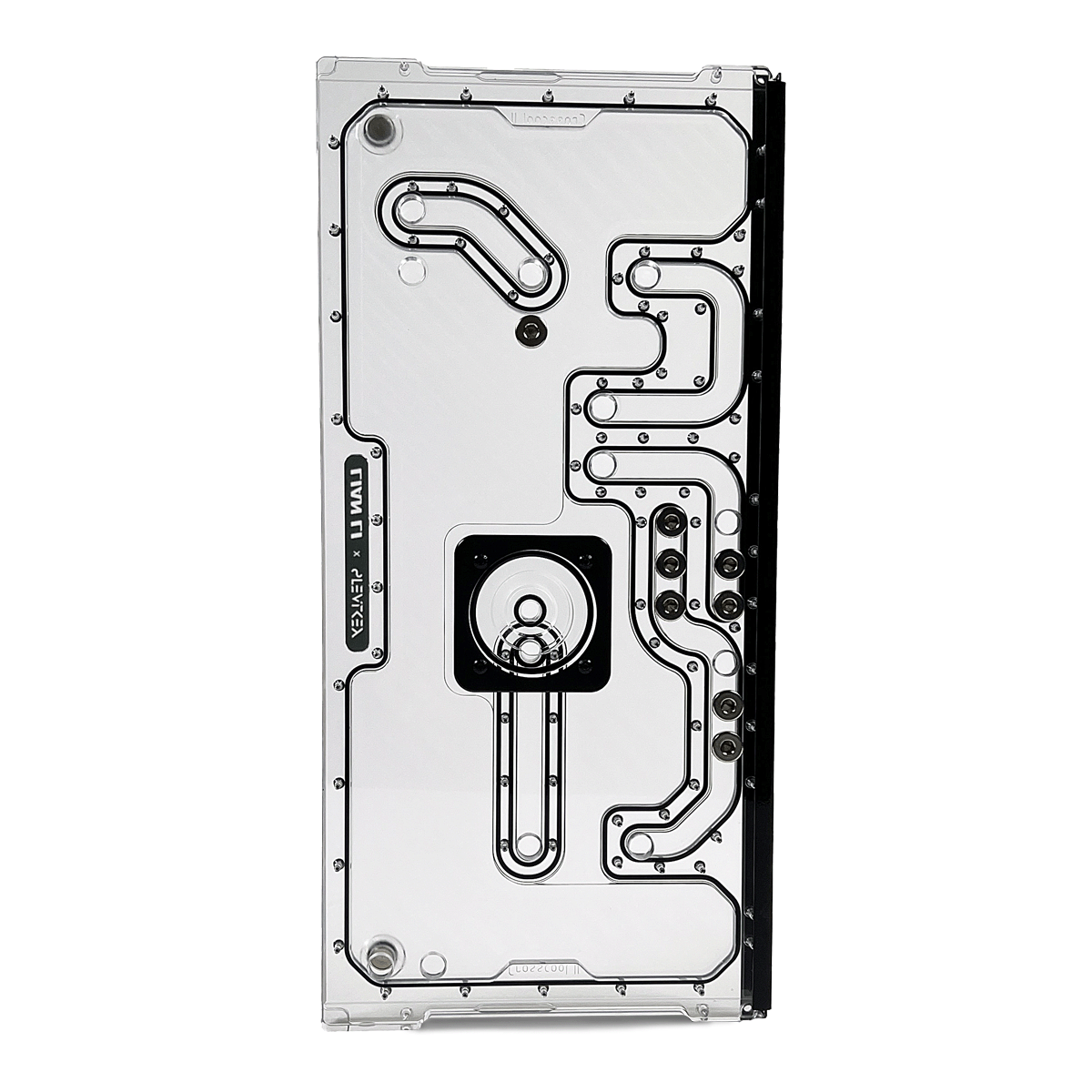

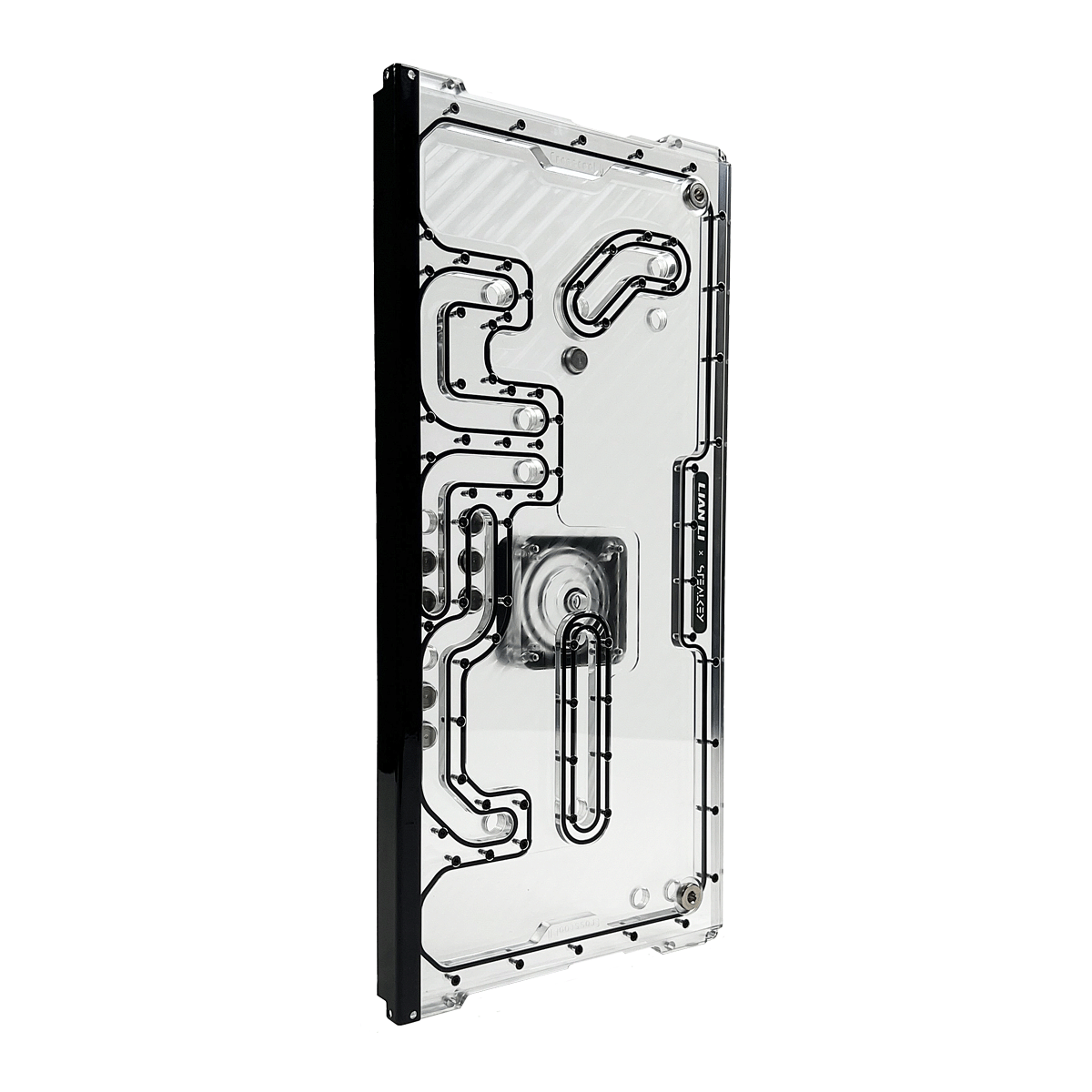

Crafted from high-quality, transparent acrylic glass, this distribution plate features 21 G1/4-inch ports, enabling a clean connection for CPU, GPU, and – as a special highlight – up to 3x 420mm radiators simultaneously.

Why the Crosscool II is the Best Choice for the EVO XL:

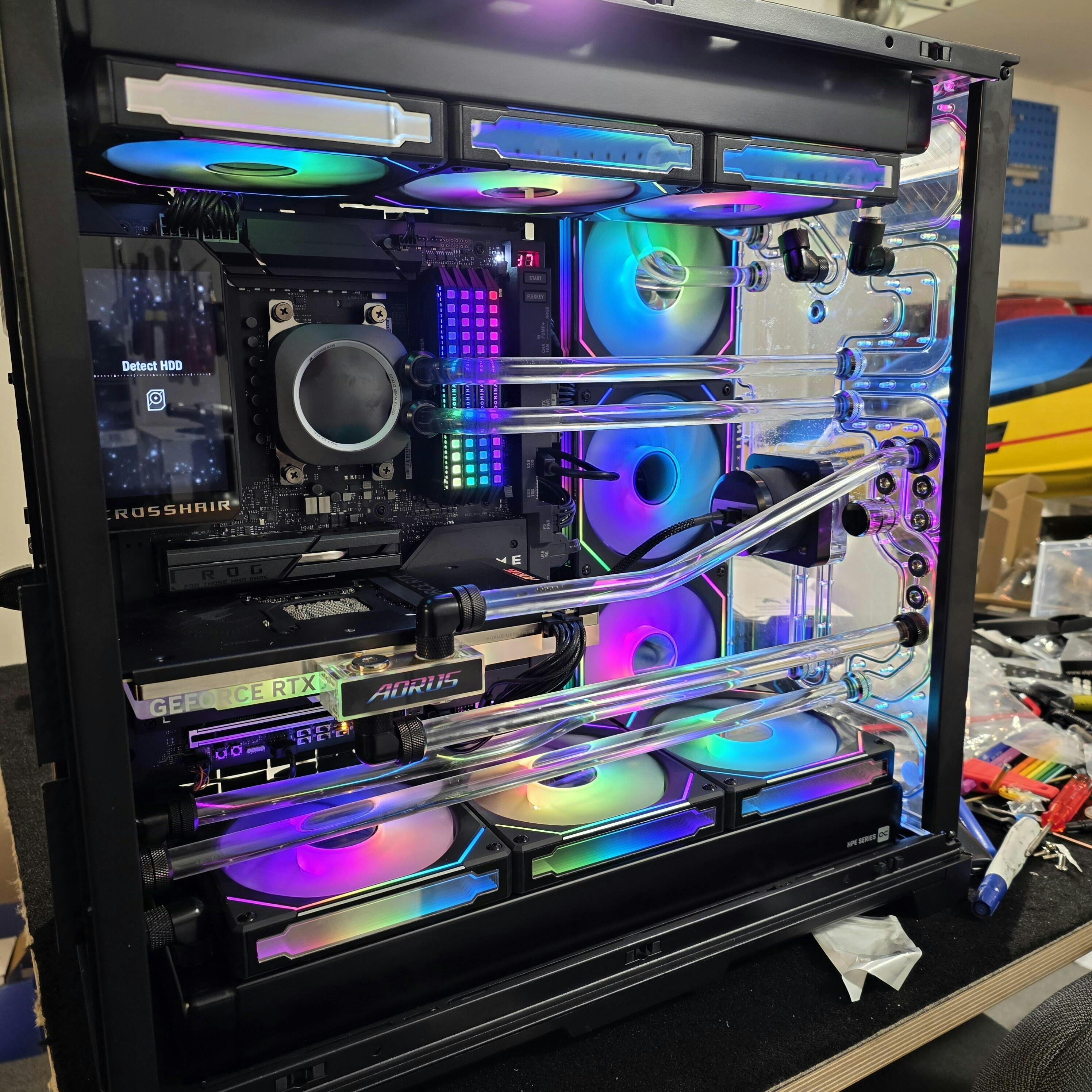

• Maximum Radiator Power: Supports 3x 420mm radiators for extreme cooling performance – ideal for RTX 5090 builds.
• Universal Pump Compatibility: Thanks to the pre-installed adapter, it is compatible with both D5 and DDC pumps.
• Flexible GPU Routing: Supports horizontal, vertical, and even upright GPU mounting.
• Easy Installation: Utilizes existing mounting holes in the Lian Li chassis (no drilling required).

Features in Detail

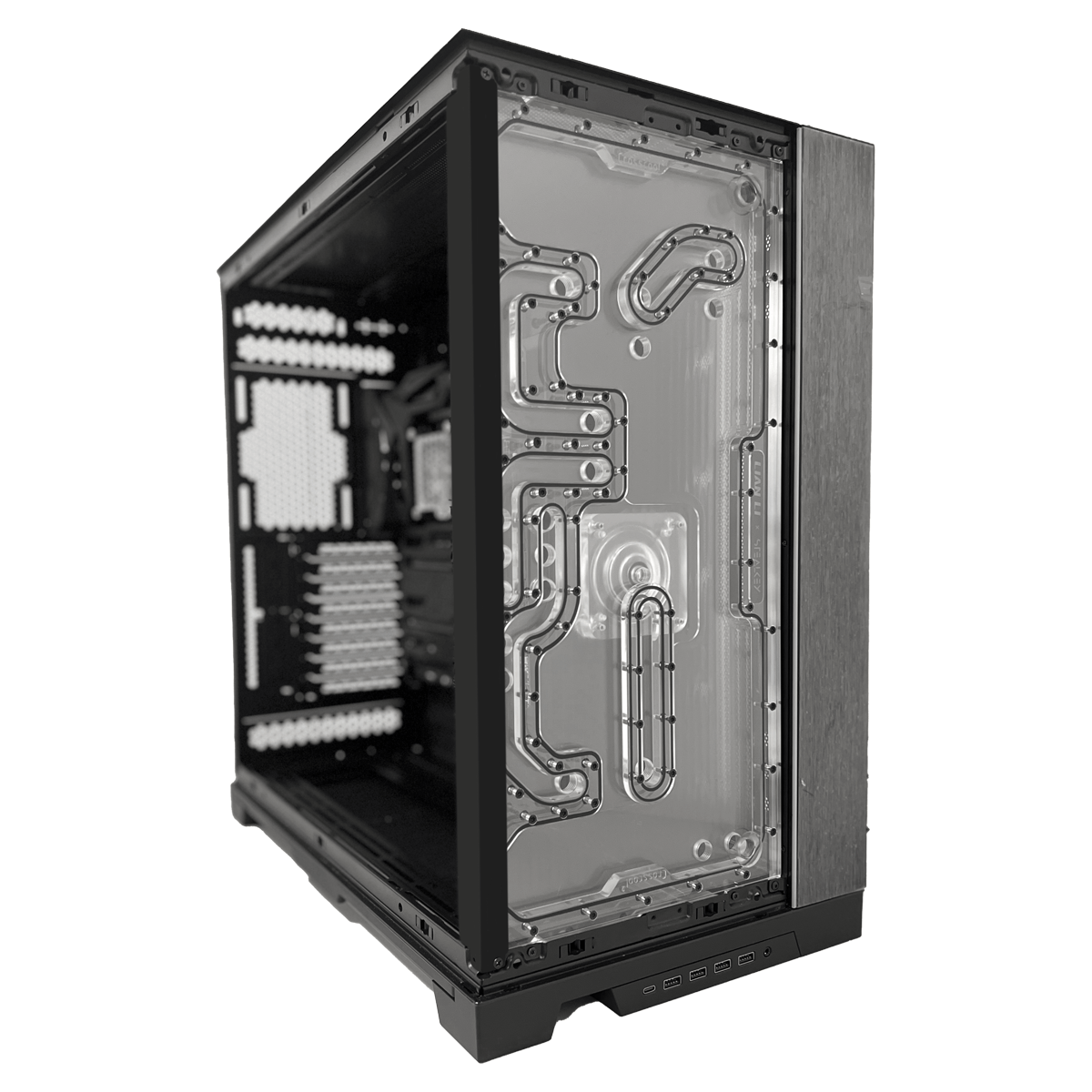

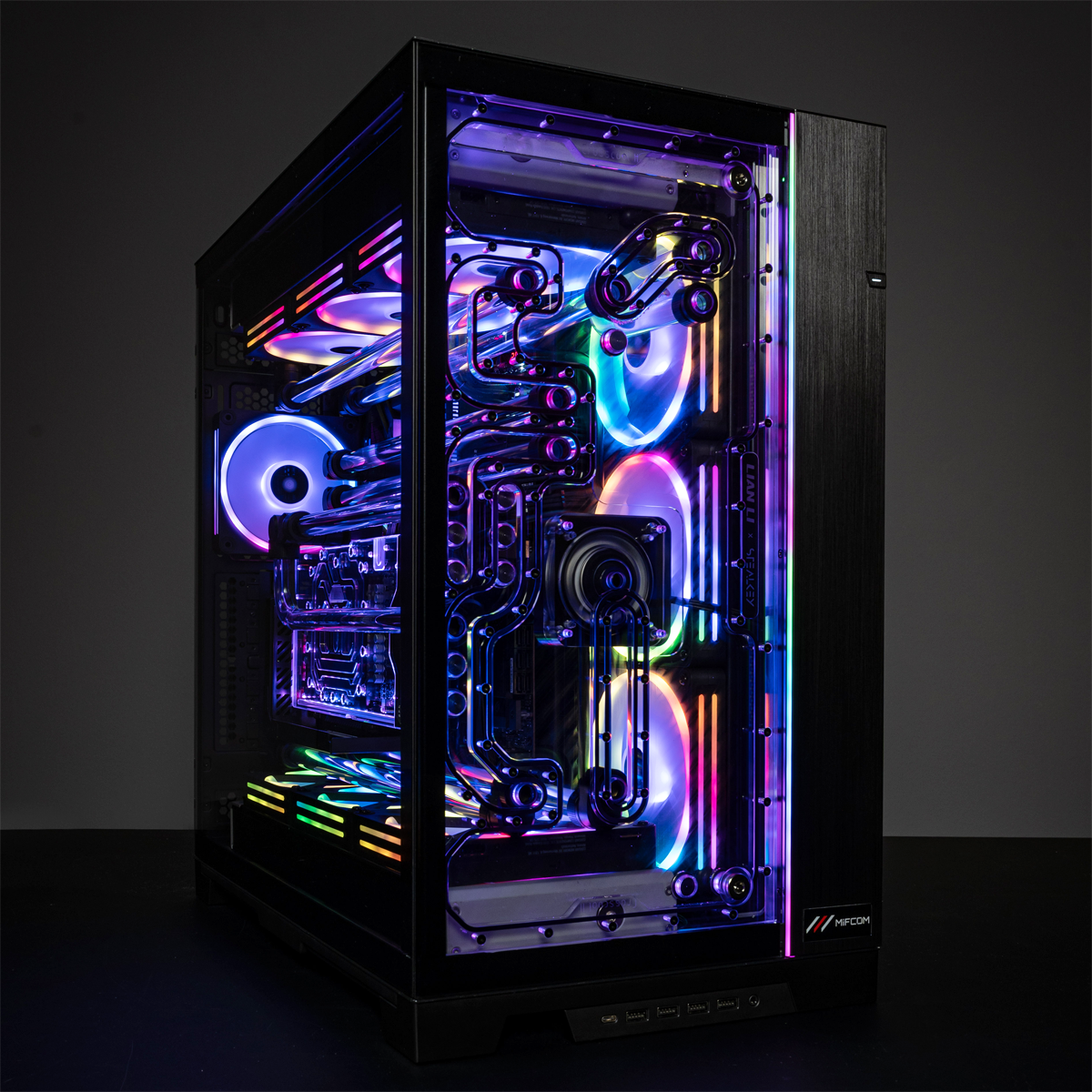

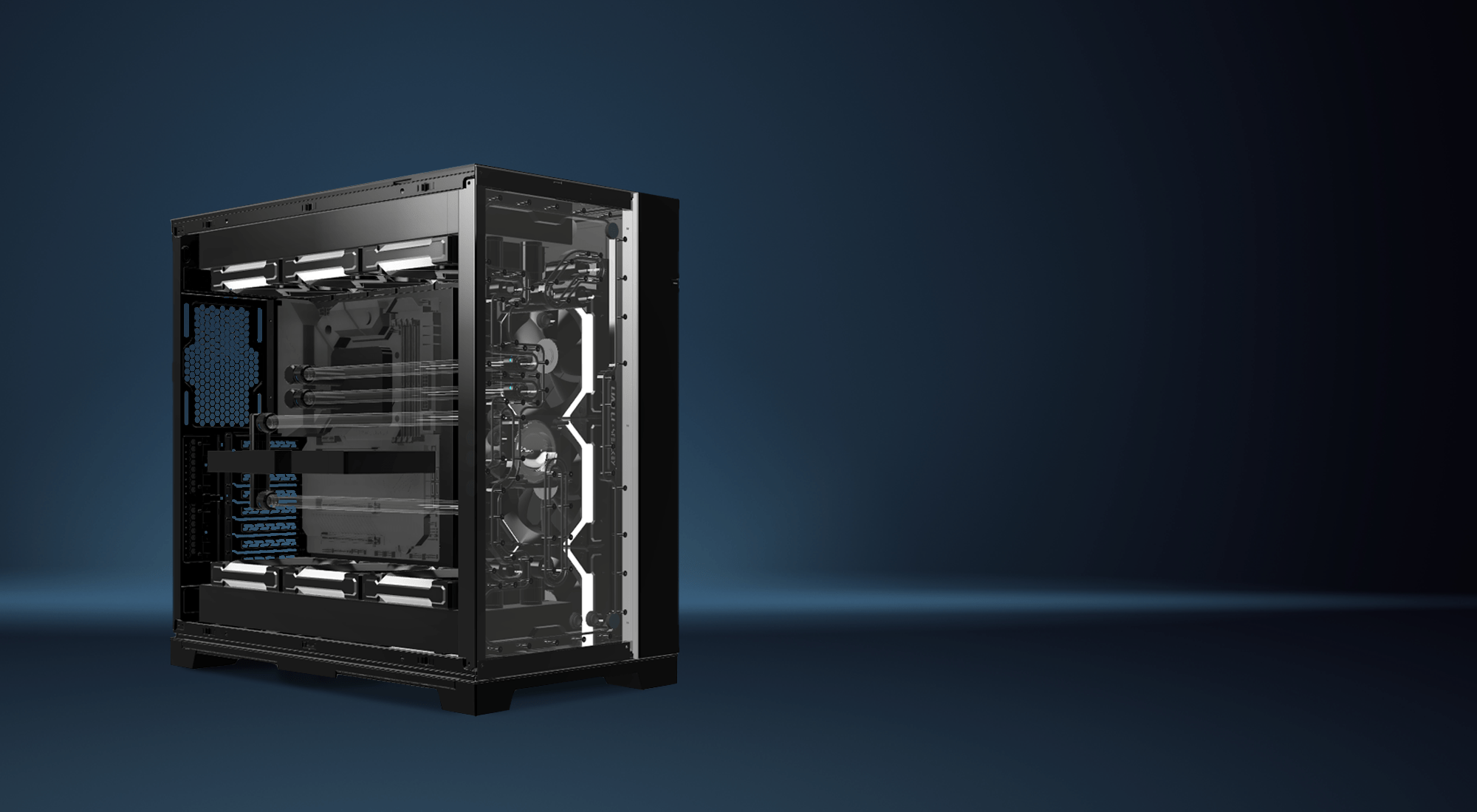

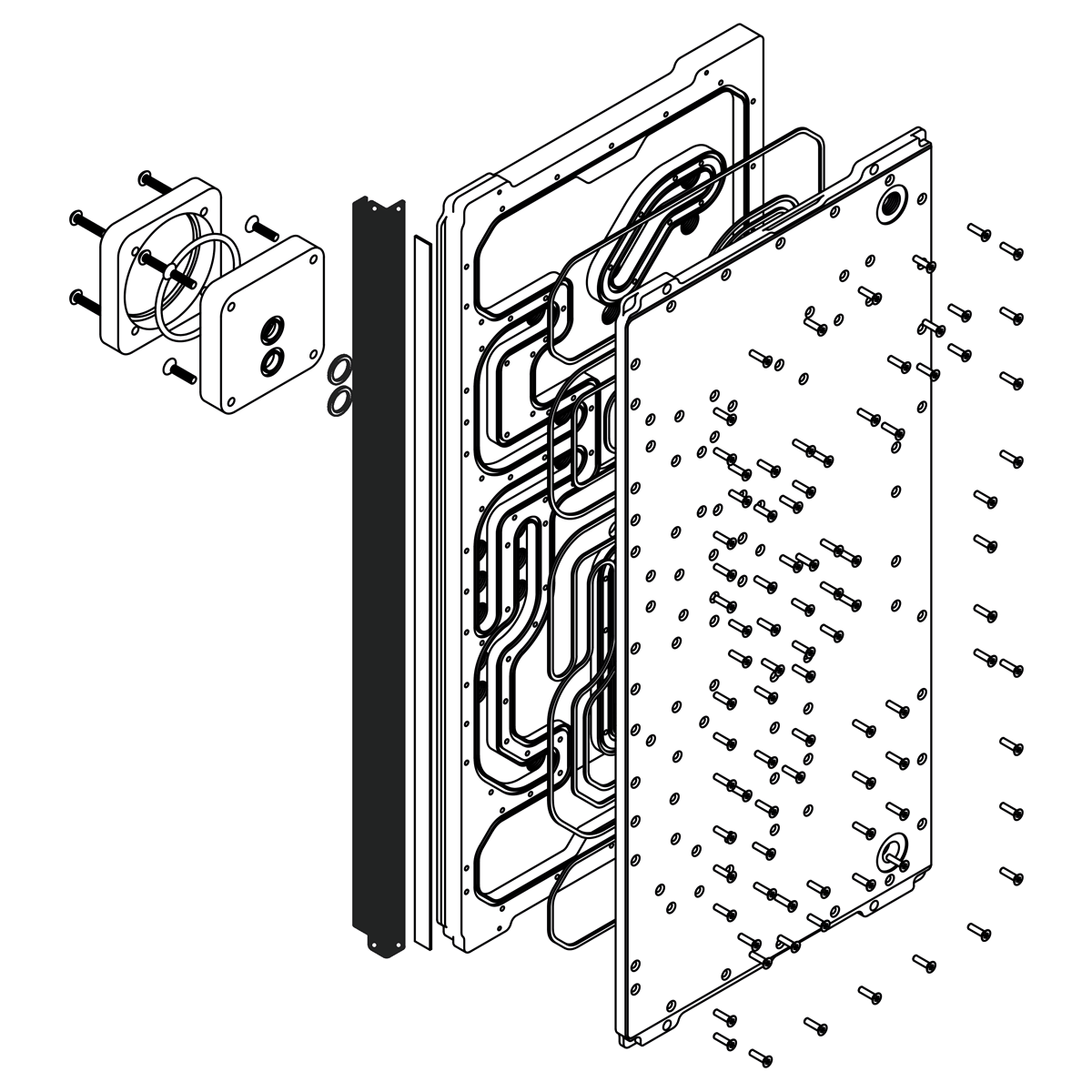

The Lian Li O11 Dynamic EVO XL x Stealkey Crosscool 2 mounts with four screws to the front of the chassis, directly behind the front glass panel. Our distro plate relies on a well-thought-out and proven mounting system. The custom-made adapter comes pre-installed and allows for the easy integration of both pump types. For D5 pumps, a precision-fit POM ring is used, which is placed over the pump and then securely connected to the adapter. DDC pumps can be attached directly to the adapter.

Compatible Radiators

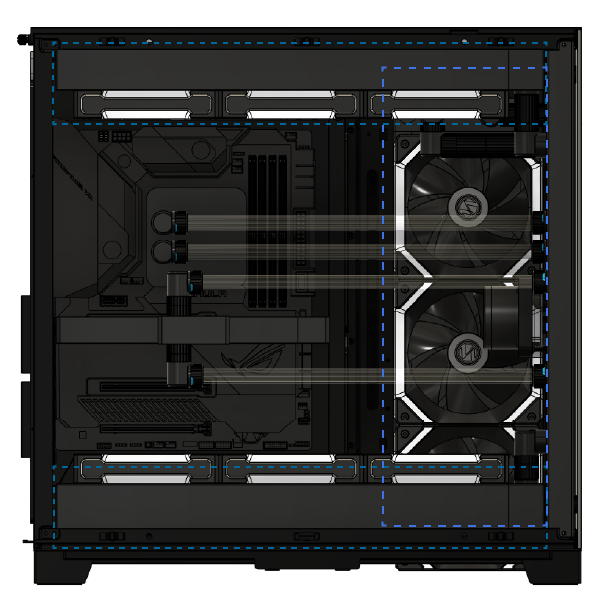

The distro plate supports up to 3x 420mm radiators, allowing the size advantages of the chassis to be fully exploited. With the distro plate installed, the maximum radiator thickness is as follows:

• Top: 78 mm + maximum 30 mm fan thickness
• Bottom: 78 mm + maximum 30 mm fan thickness
• Side: 48 mm + maximum 25 mm fan thickness

Addressable D-RGB Lighting

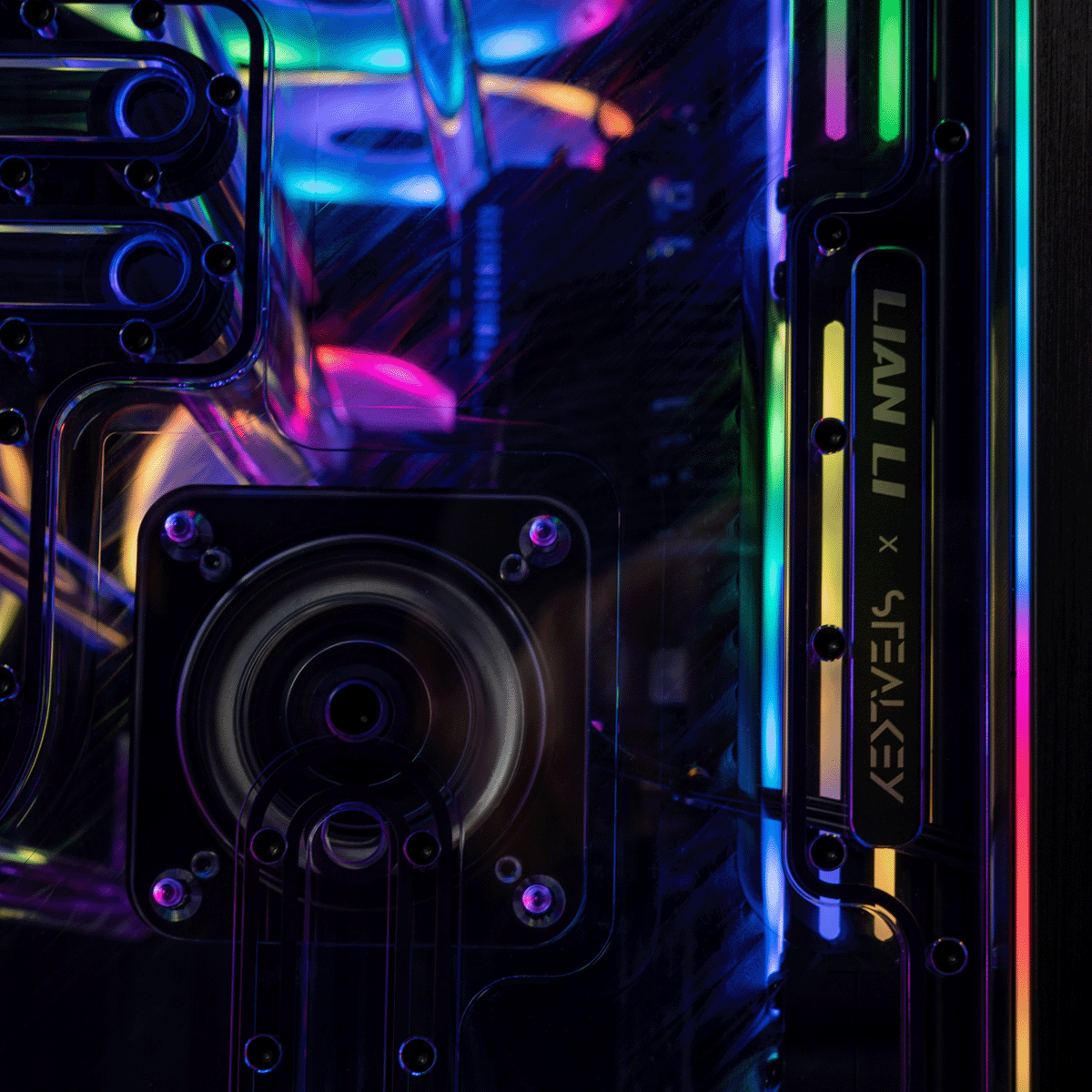

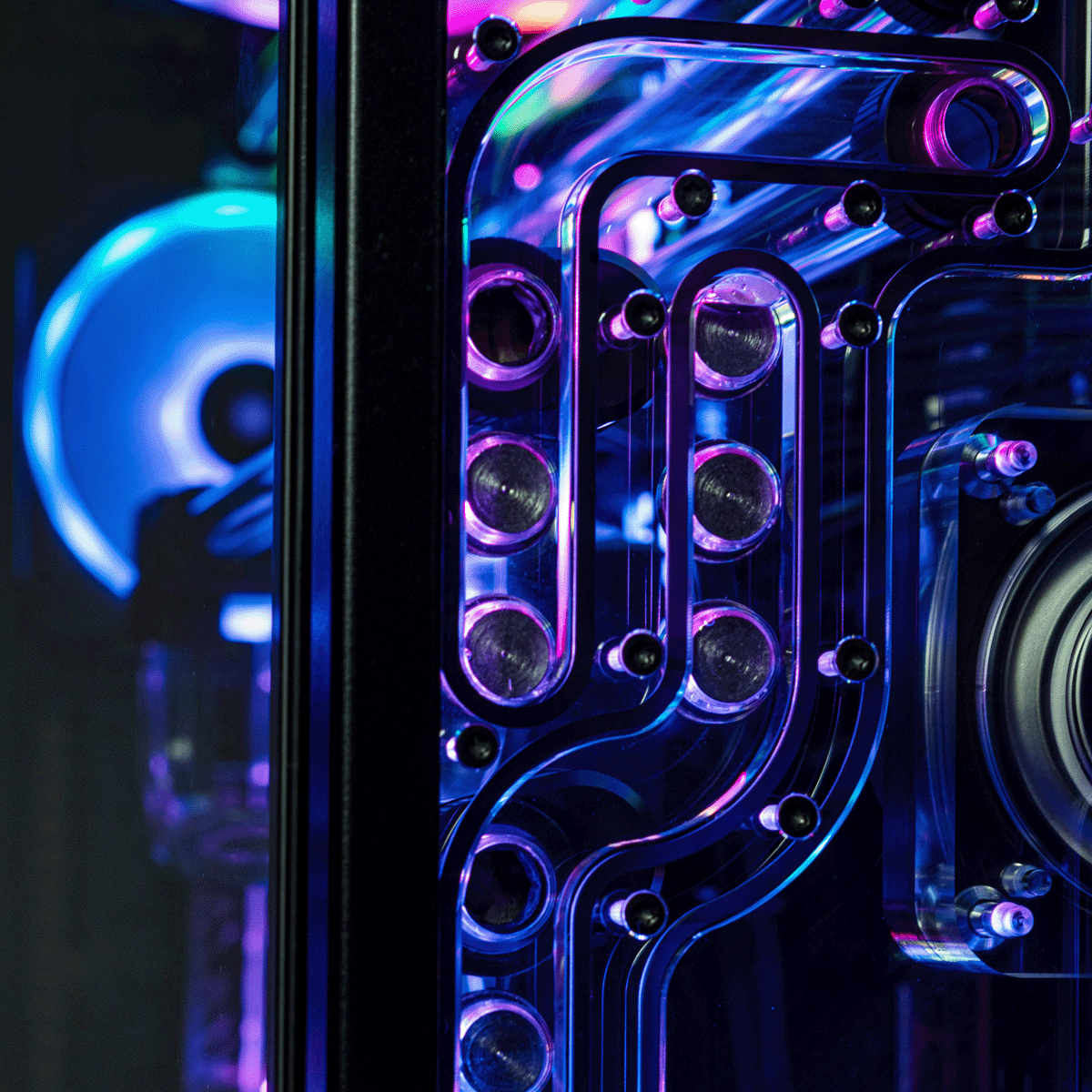

The included addressable D-RGB LED strip presents the Crosscool II in perfect light. A powder-coated steel cover conceals the individual LED spots, creating a uniform glow that illuminates the distro plate and the coolant. Compatible with MSI MYSTIC LIGHT, ASROCK POLYCHROME, ASUS AURA, and GIGABYTE RGB FUSION.

Features at a Glance

• Optimized for the Lian Li O11 Dynamic EVO XL chassis
• Supports up to 3x 420mm radiators (Maximum cooling performance)
• D5 & DDC pump compatible (Universal adapter included)
• Easy installation using existing chassis mounting holes
• Enables straight tubing for CPU & GPU
• Compatible with horizontal, vertical & upright GPU positions
• Integrated 5V ARGB lighting
• 21x G1/4 inch ports for maximum loop freedom

Technical Details

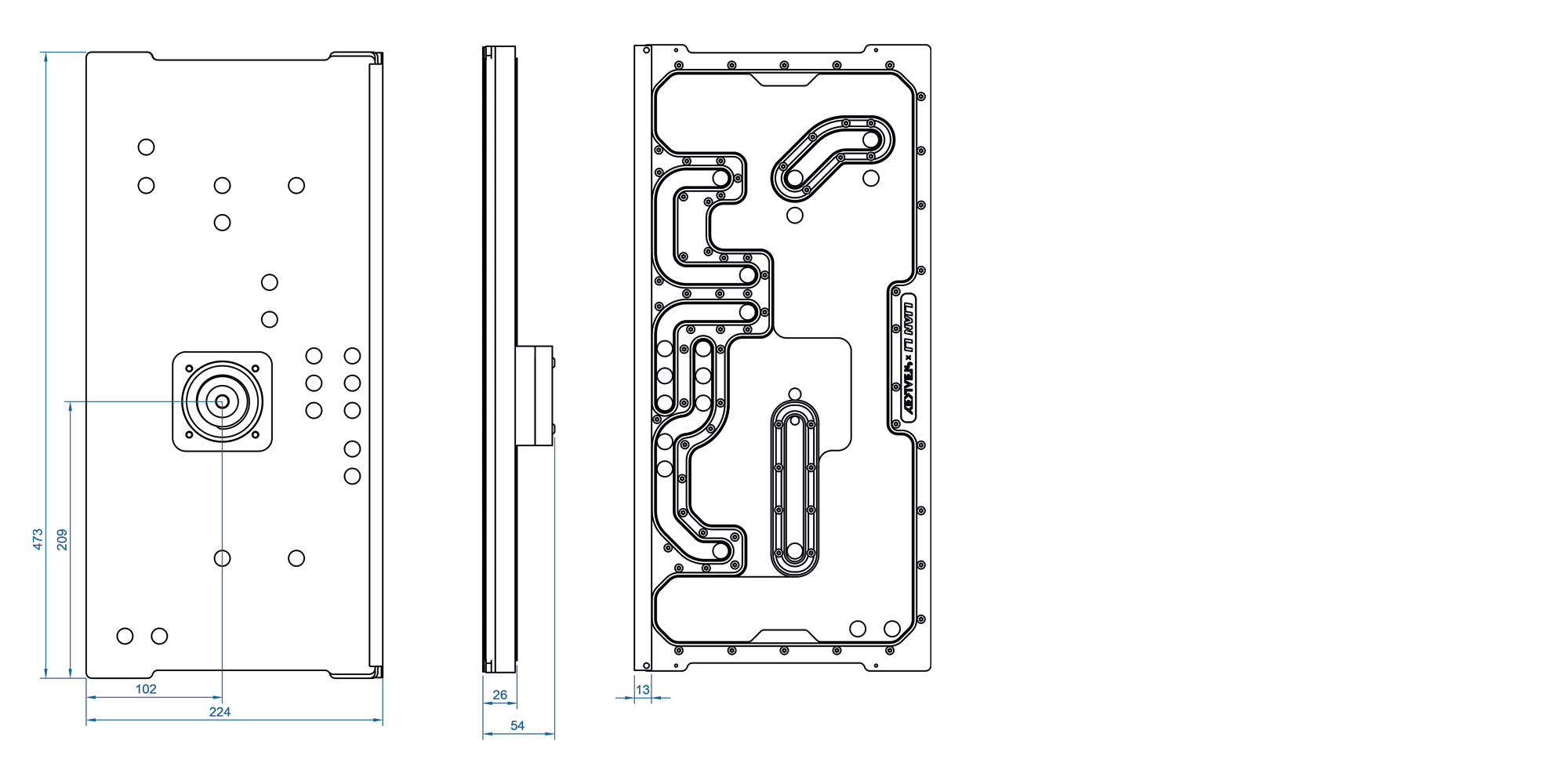

• Product Dimensions (WxHxD): 473x224x26 mm
• Color: Black and Transparent
• Material: Acrylic glass, plastic, powder-coated steel
• Ports: 21x G1/4"
• Reservoir Capacity: 410 ml
• D-RGB Connector: Standard 3-pin (+5V, Data, Ground)

Scope of Delivery

• 1x Lian Li O11 Dynamic EVO XL x Stealkey Crosscool II Distroplate
• 4x Mounting screws
• 1x Universal adapter for DDC/D5 pumps
• 11x Plugs
