SK-UNI FLEX mounting bracket 28mm (120mm fan)

Details

The SK-FLEX mounting bracket 28 mm (120 mm fan) is a steel bracket. It is used to mount the CubeTube Distroplates to all 120 mm (105 mm hole spacing) mounting holes on the fan grille/radiator/fan.

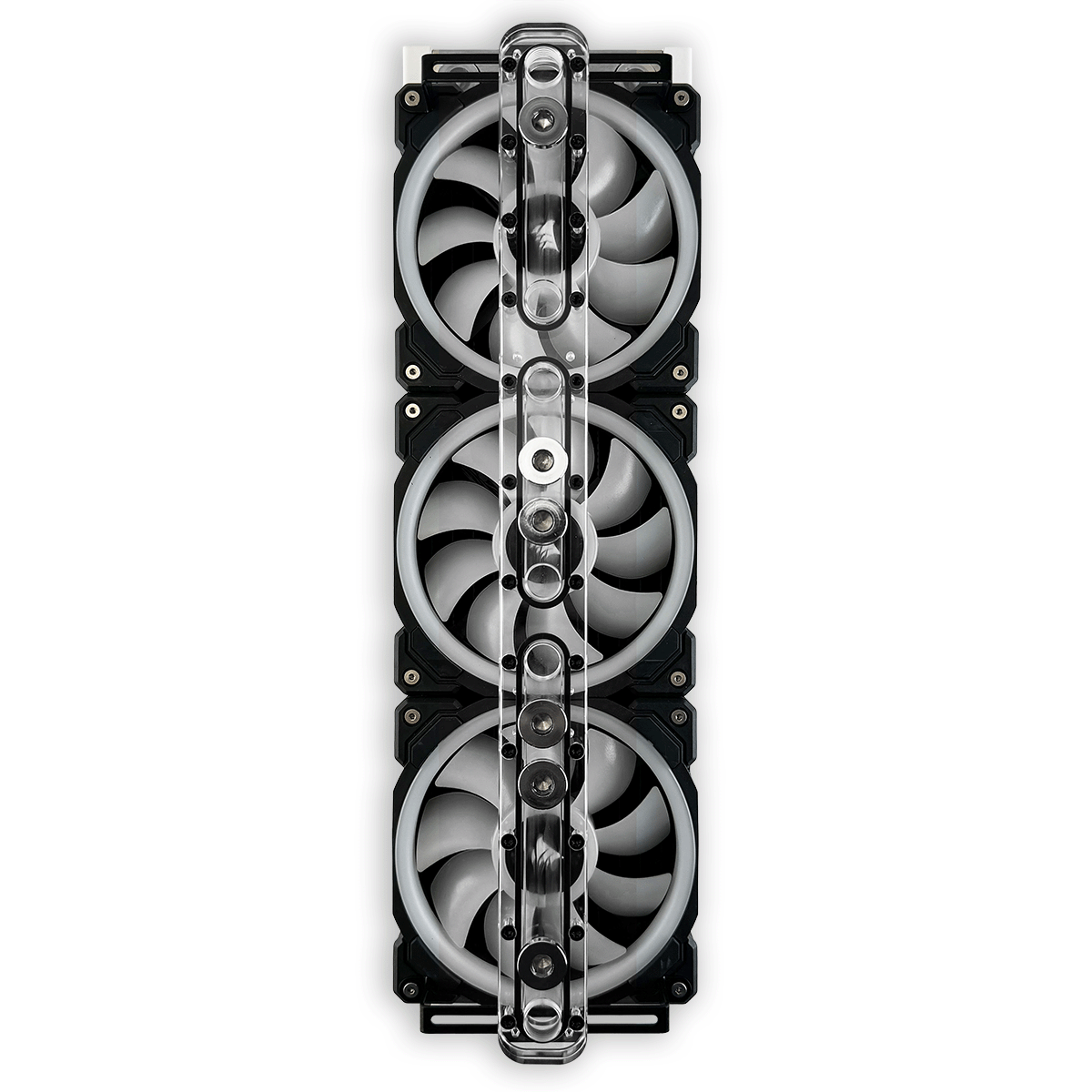

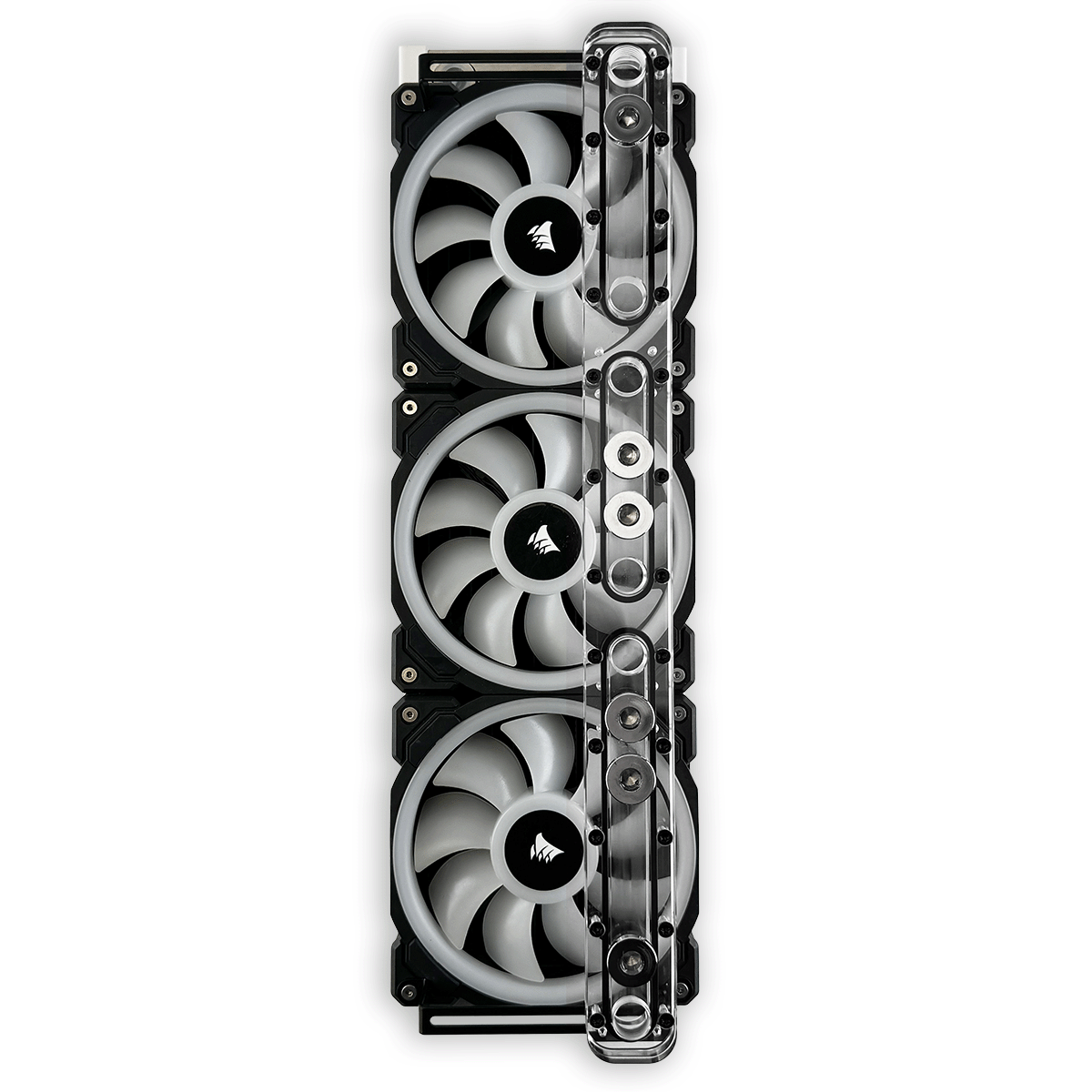

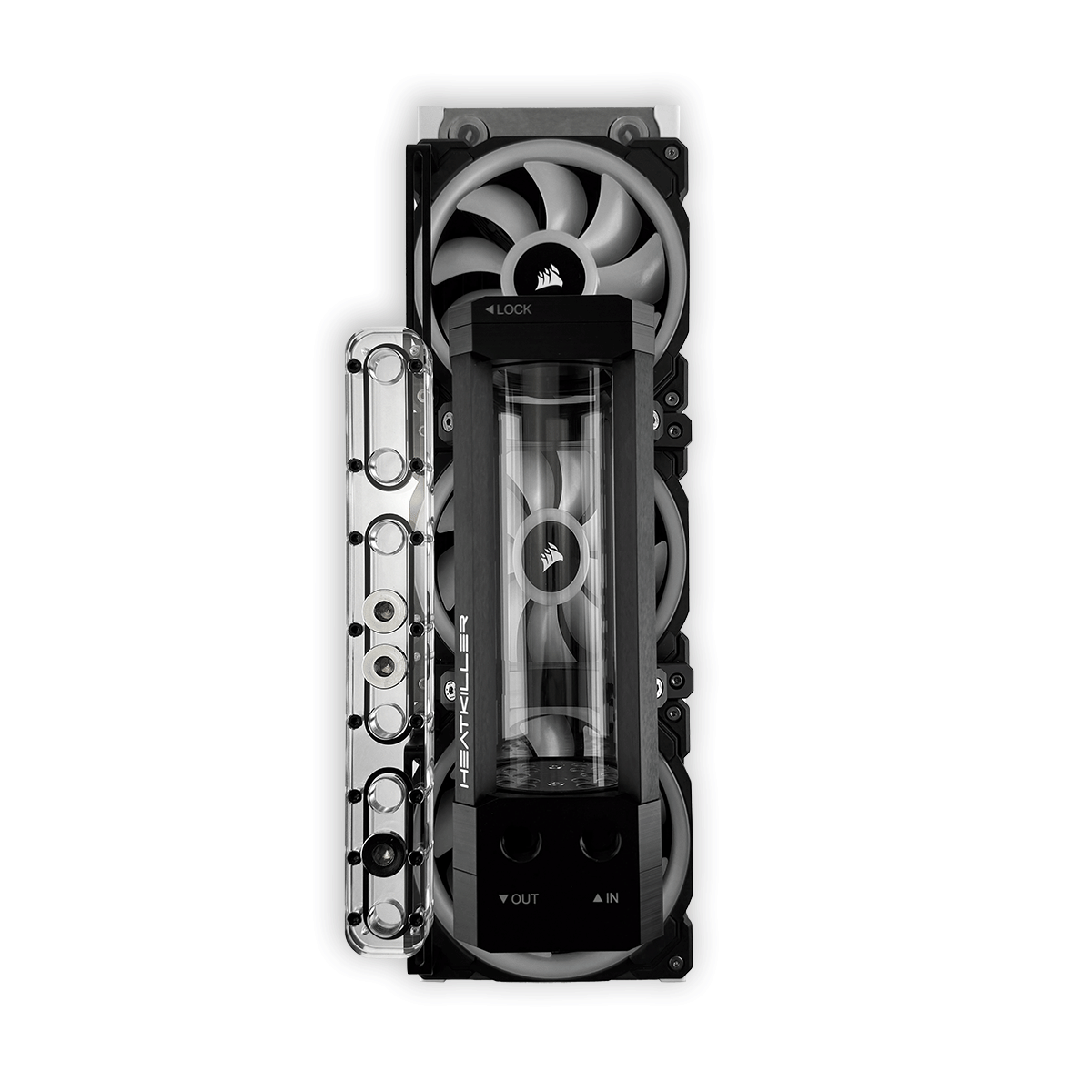

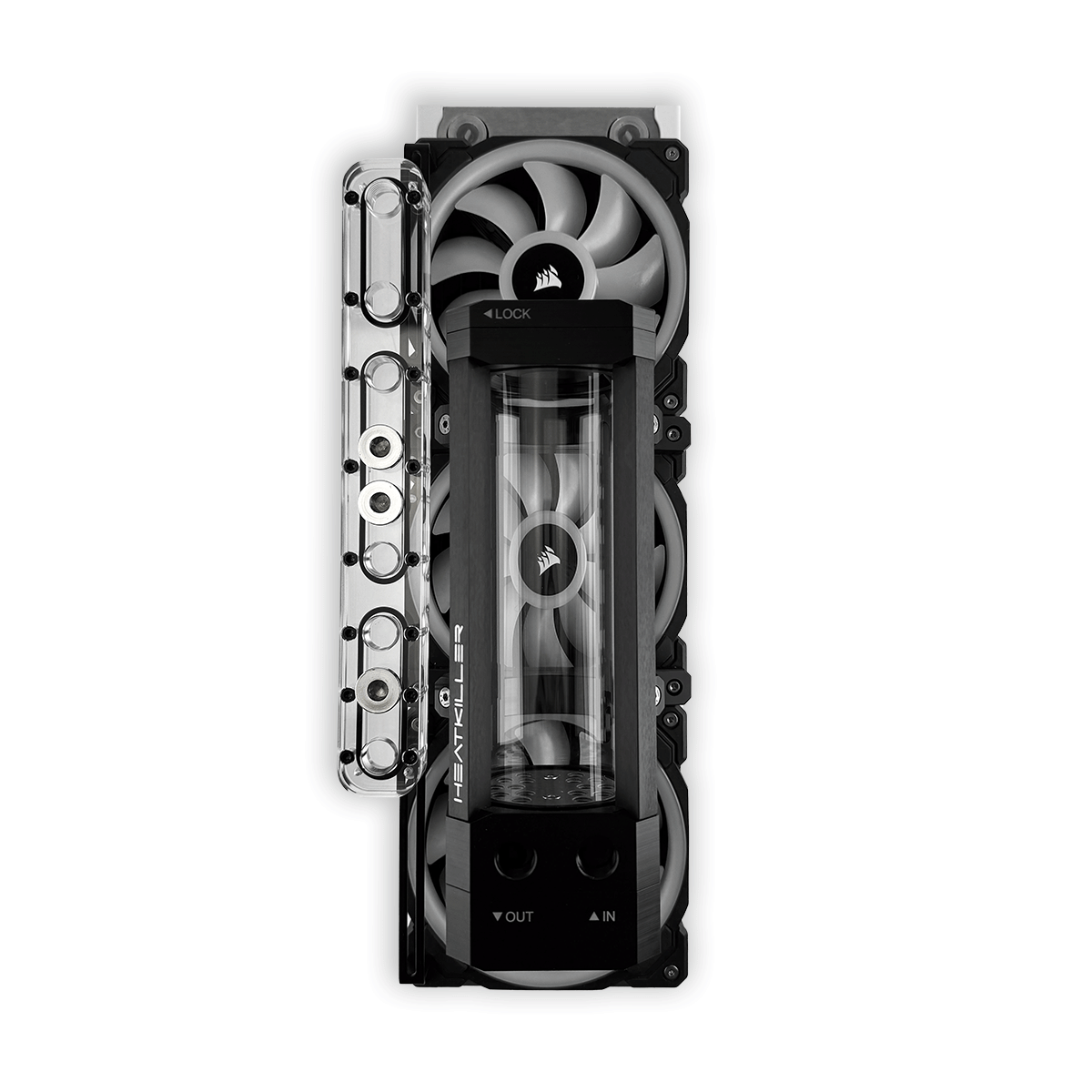

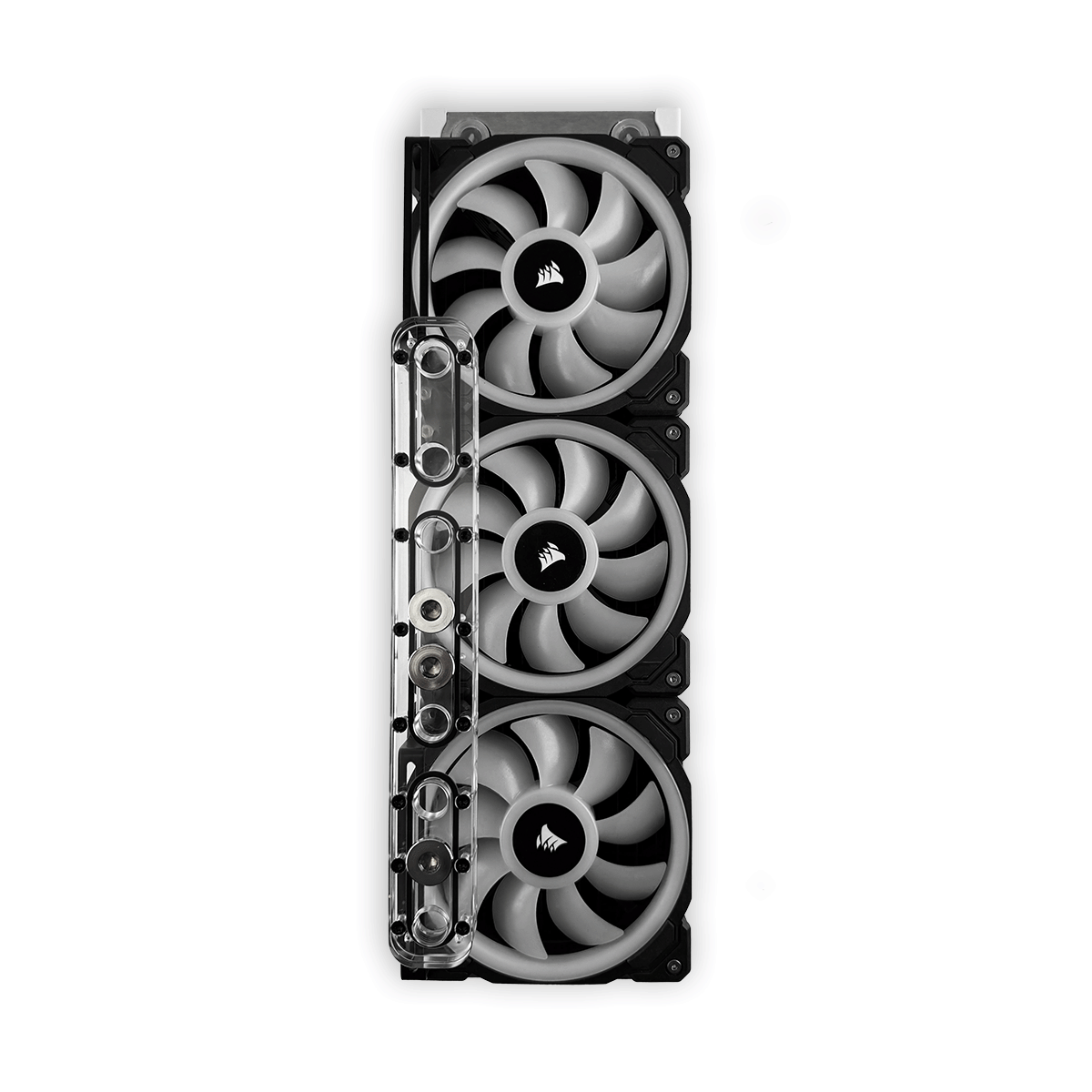

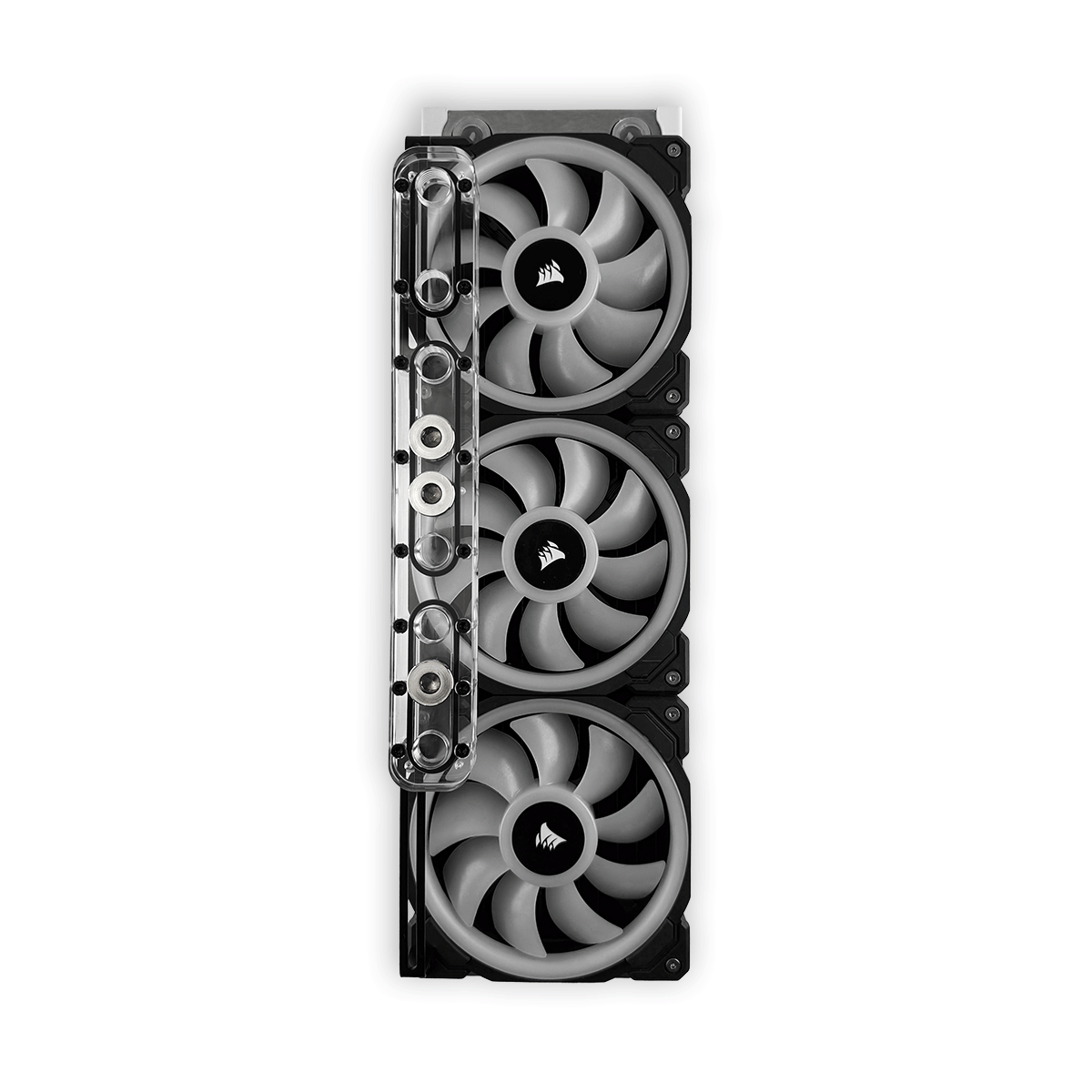

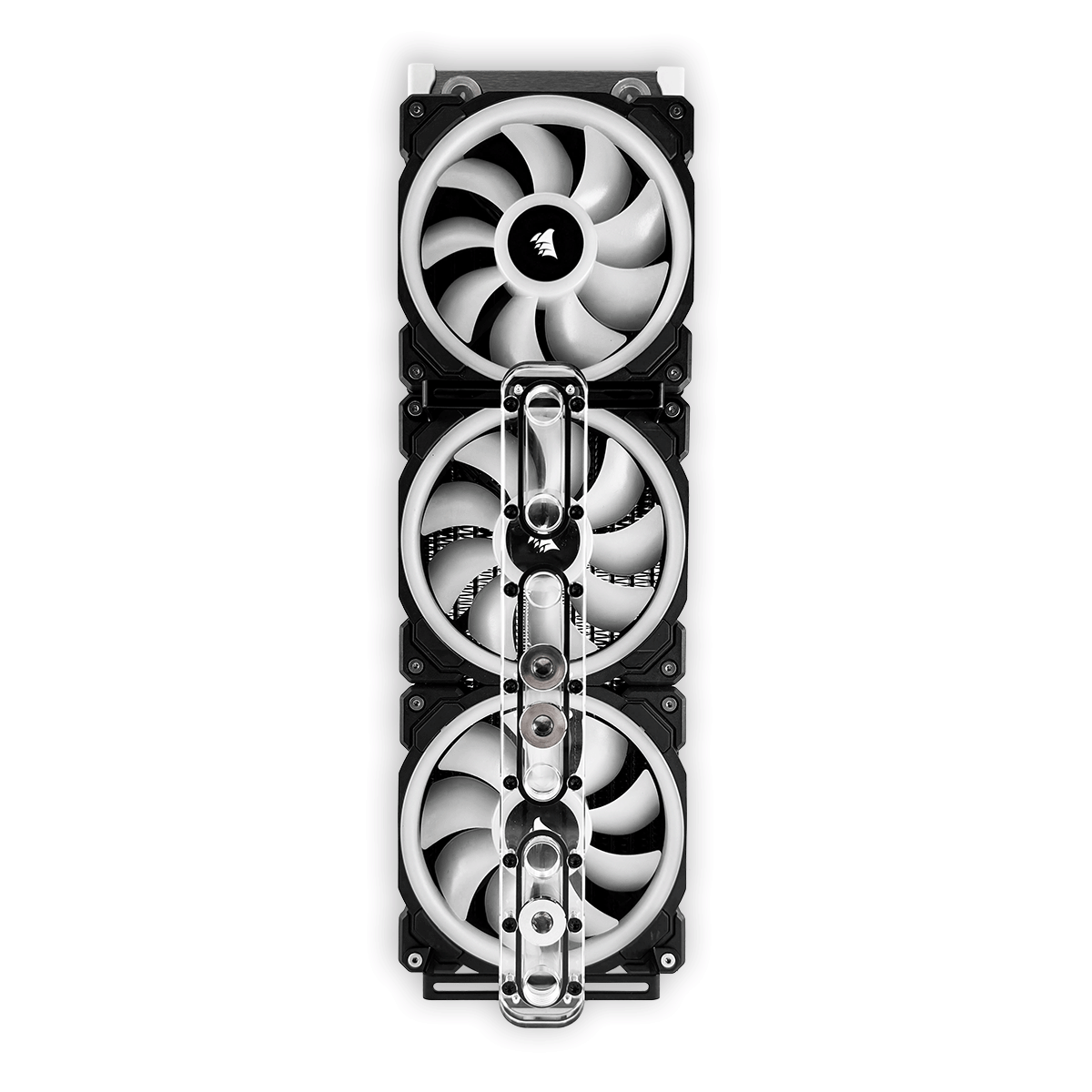

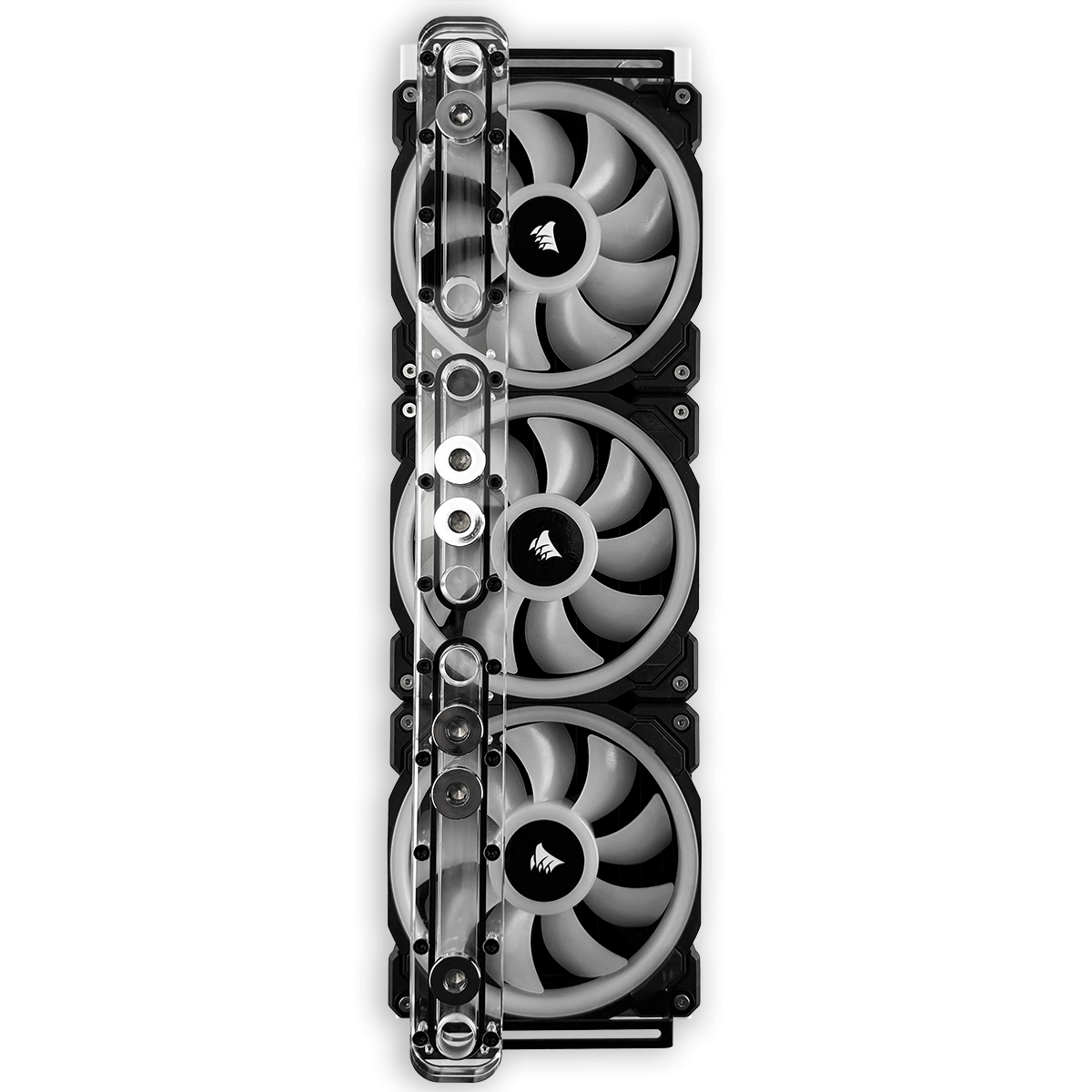

The rails allow flexible mounting of the CubeTube Distroplates vertically and horizontally.

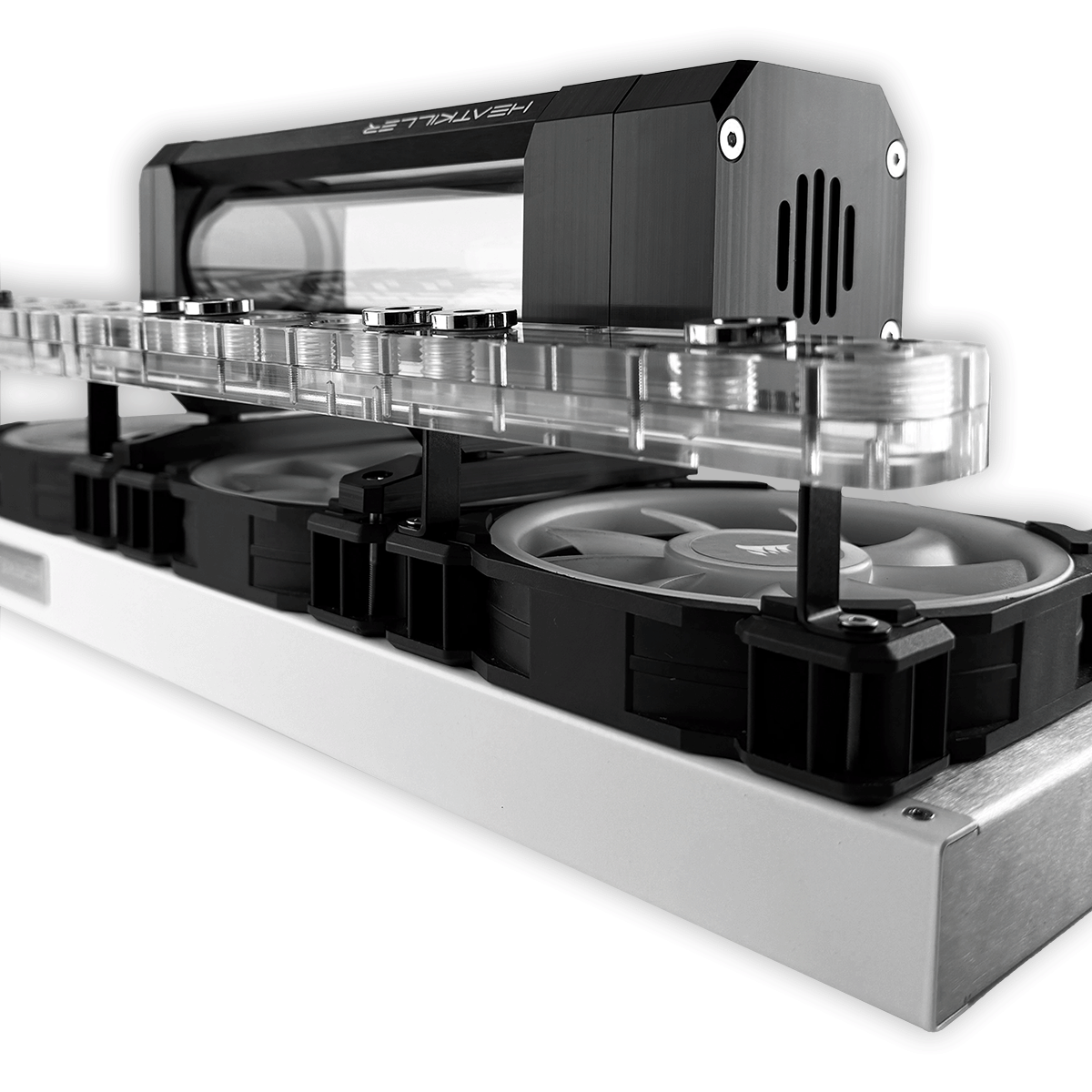

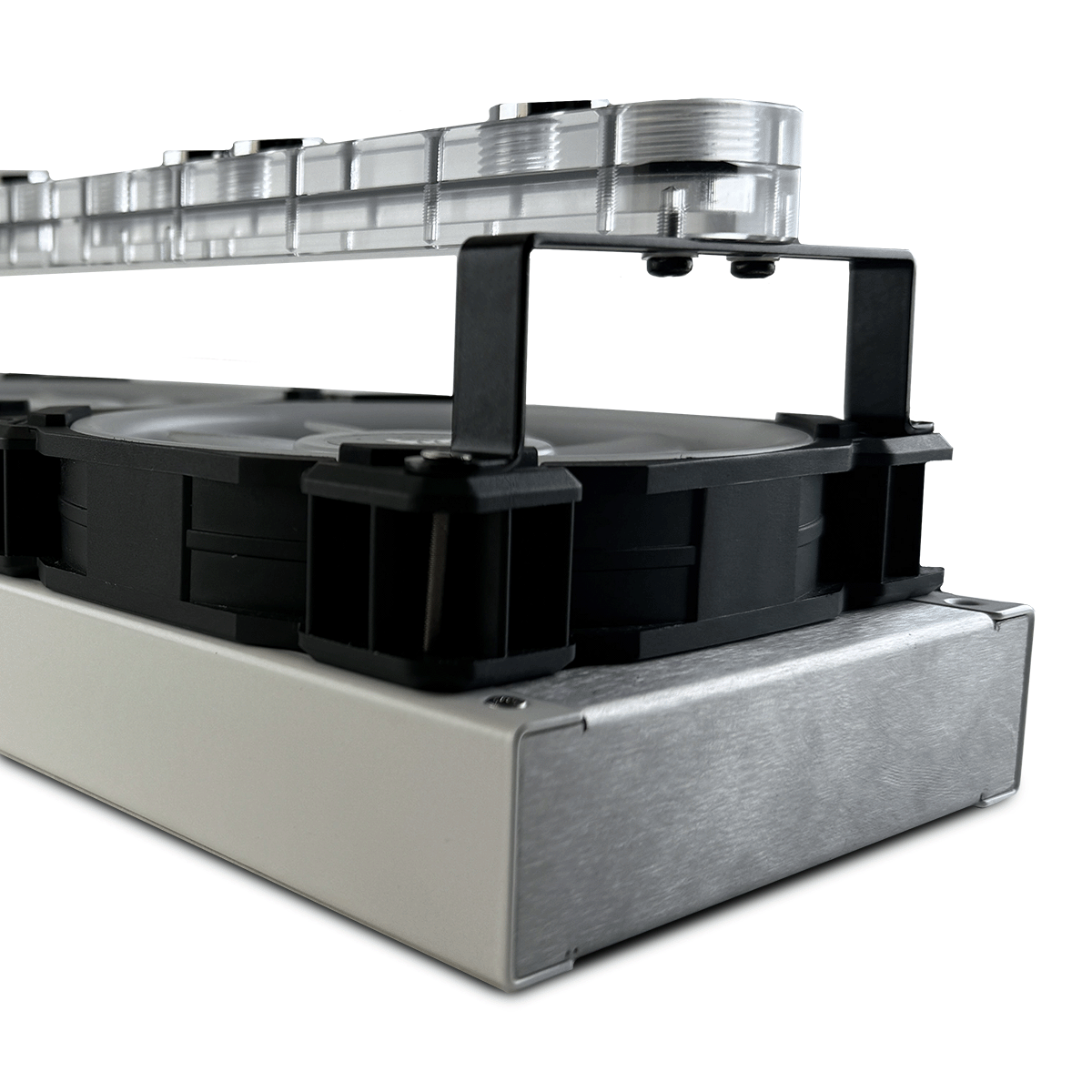

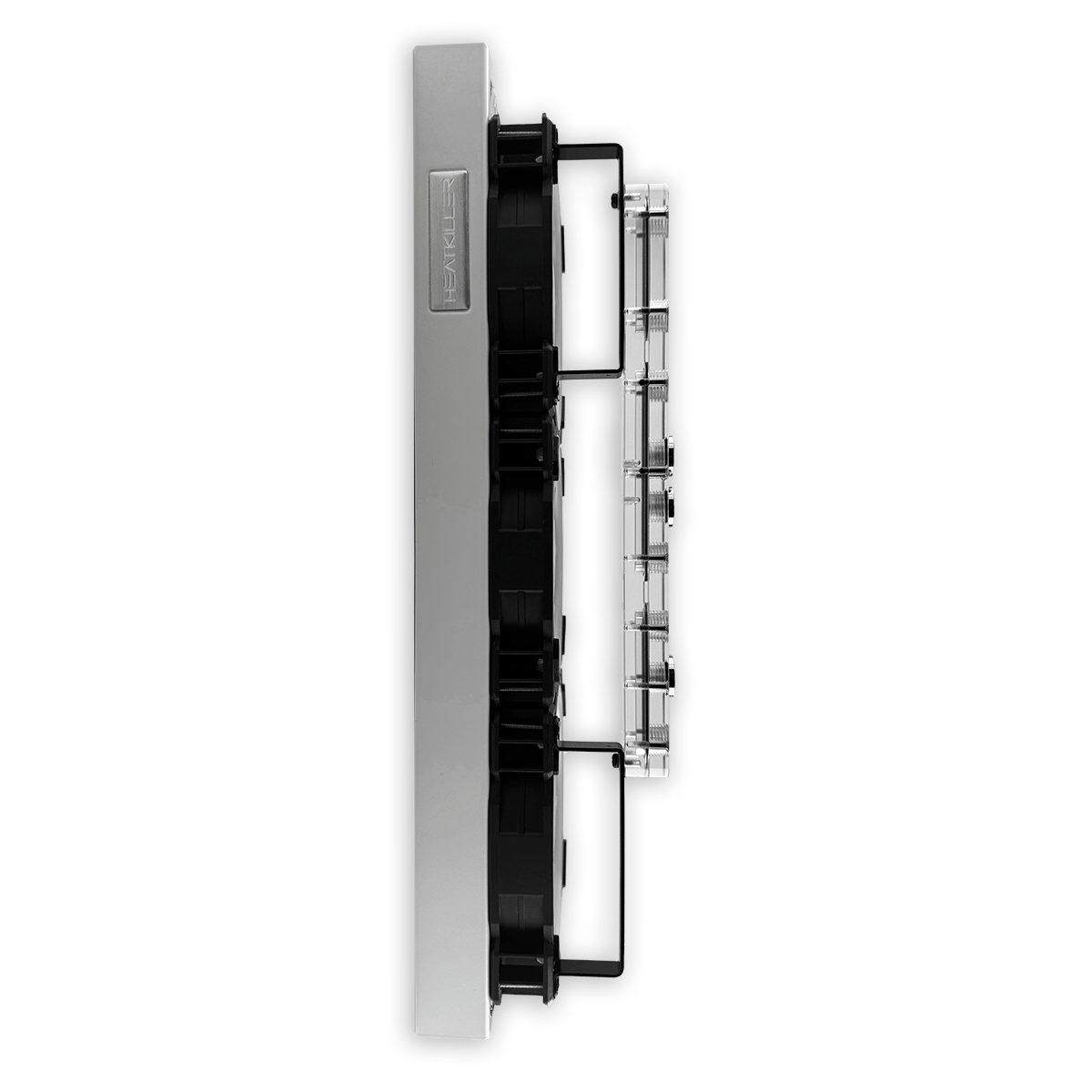

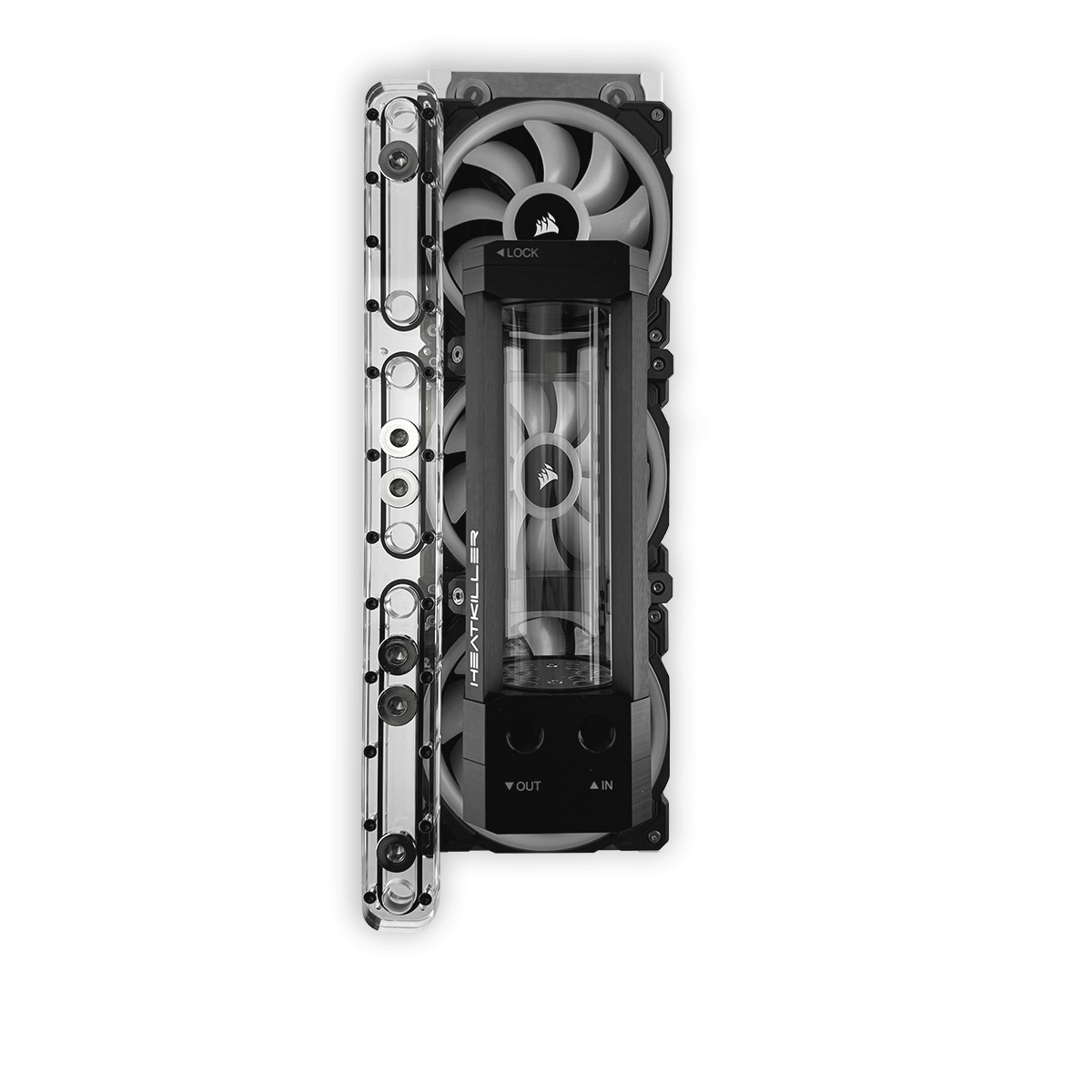

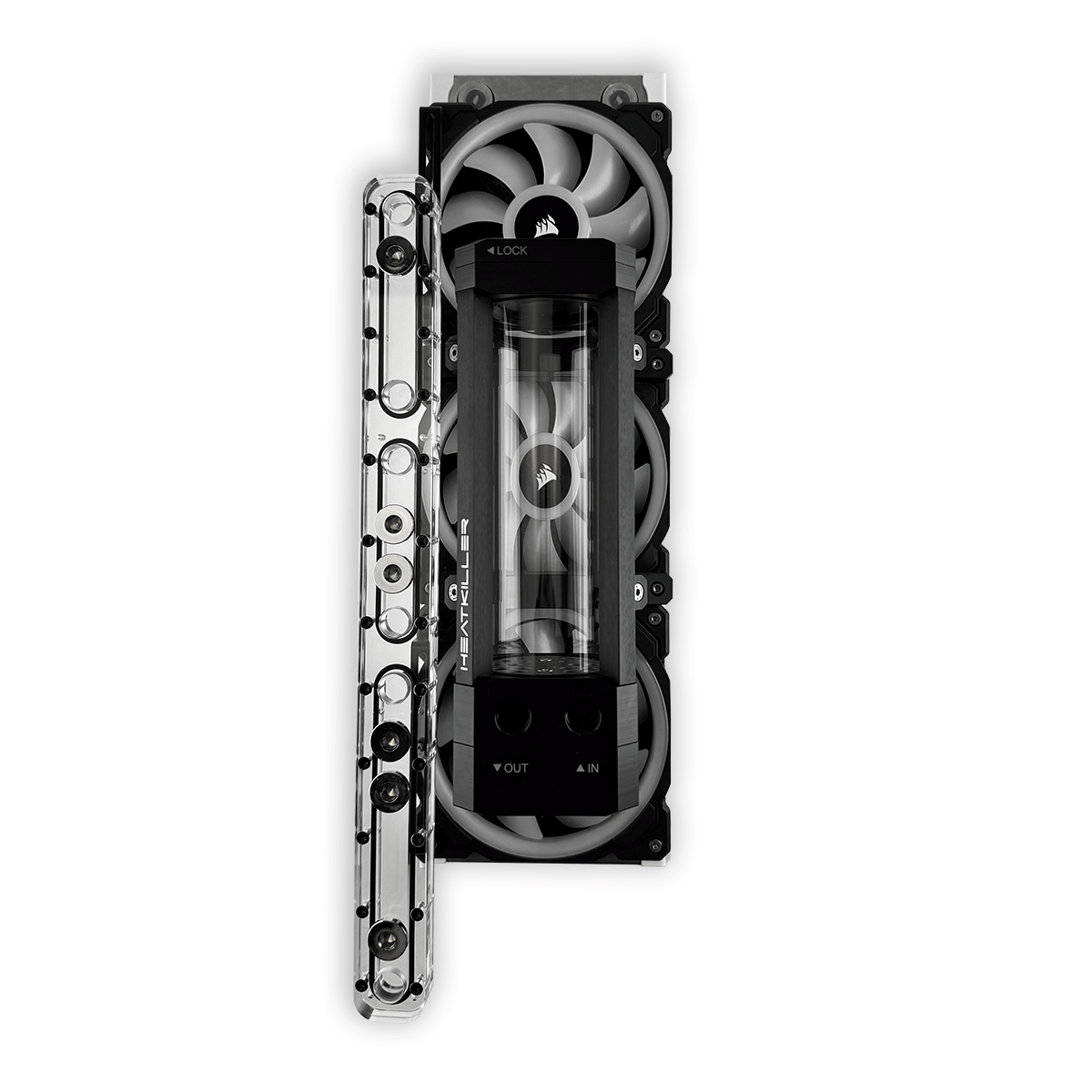

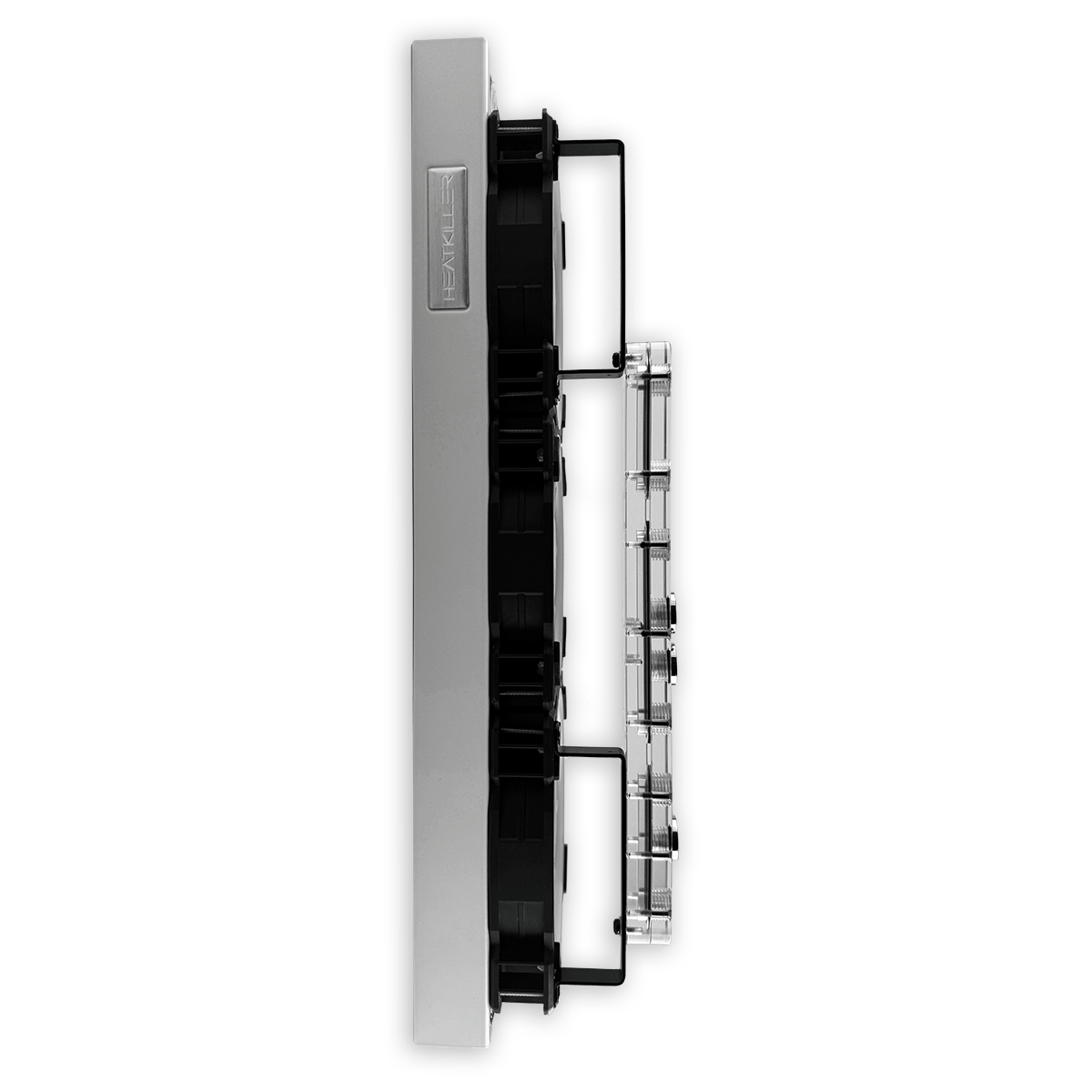

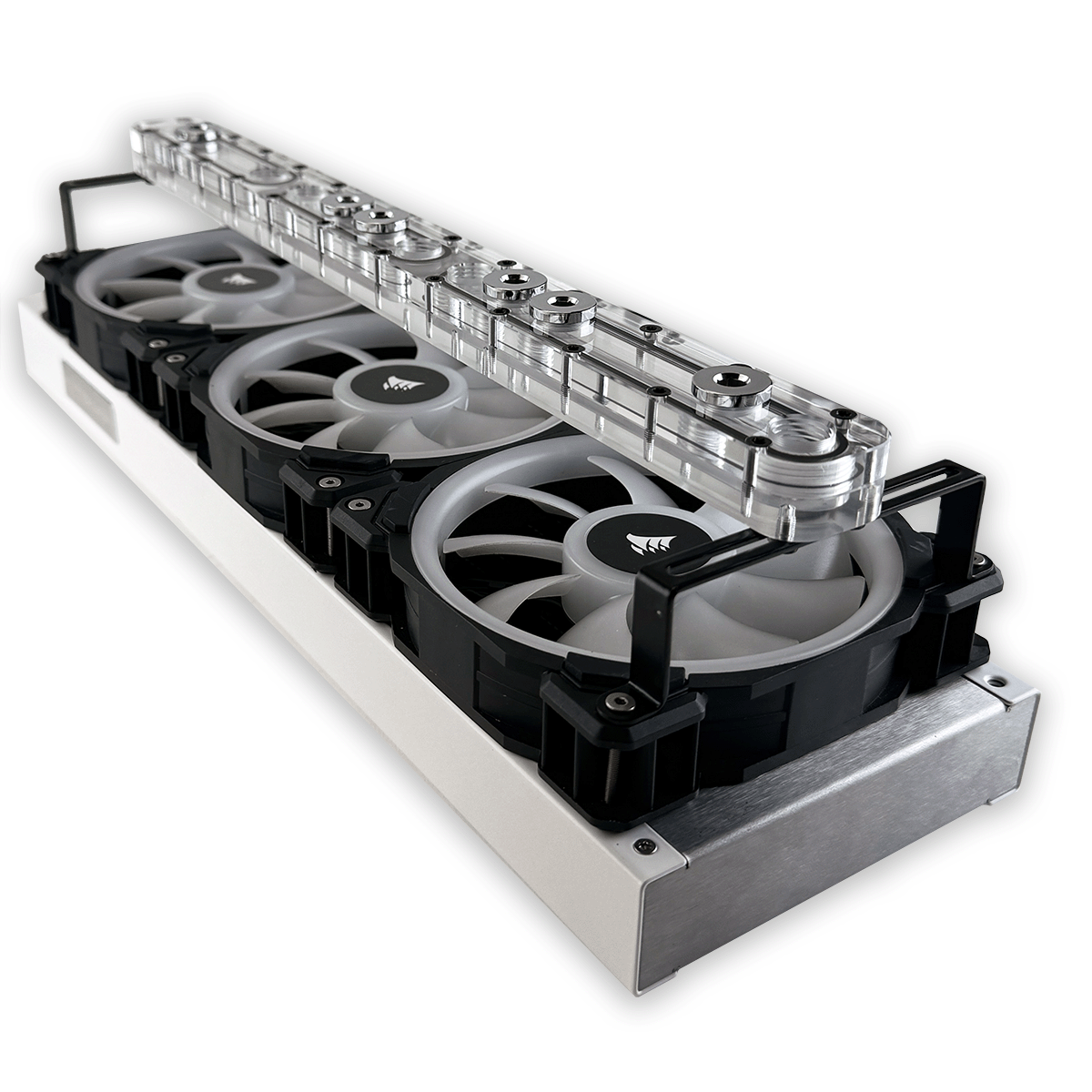

The distance of 28 mm ensures a larger airflow that can flow unhindered through the case when the CubeTube Distroplate is mounted in front of a radiator/fan.

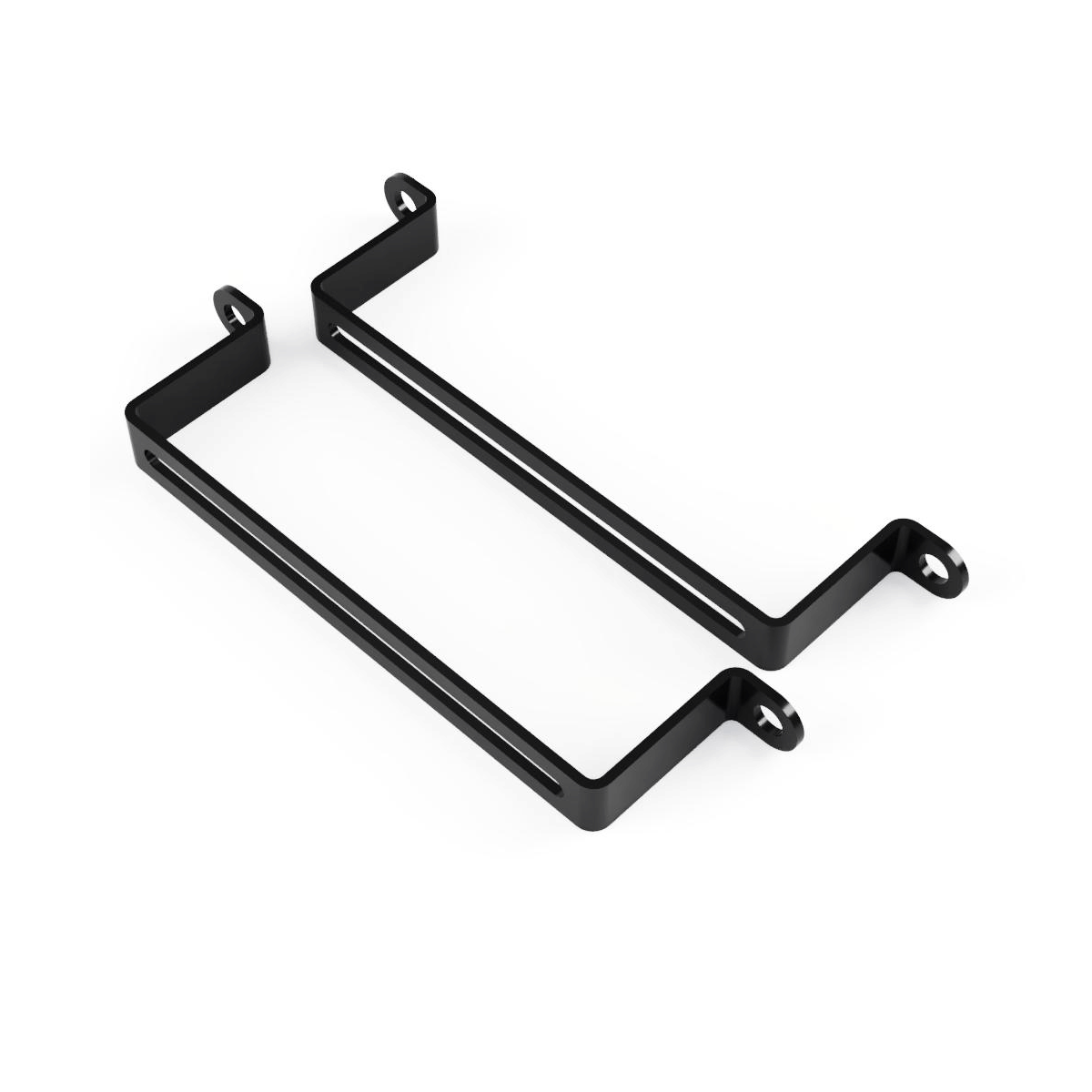

Made from folded, 1.5mm thick, black painted steel, our SK-FLEX mounting bracket 28 mm ensures stable mounting.

Compatibility list

• Stealkey CubeTube Distroplate 240 mm - Acrylic
• Stealkey CubeTube Distroplate 360 mm - Acrylic

Technical details

• Product dimensions (WxHxD): 115x28x13 mm
• Colour: Black
• Material: Steel

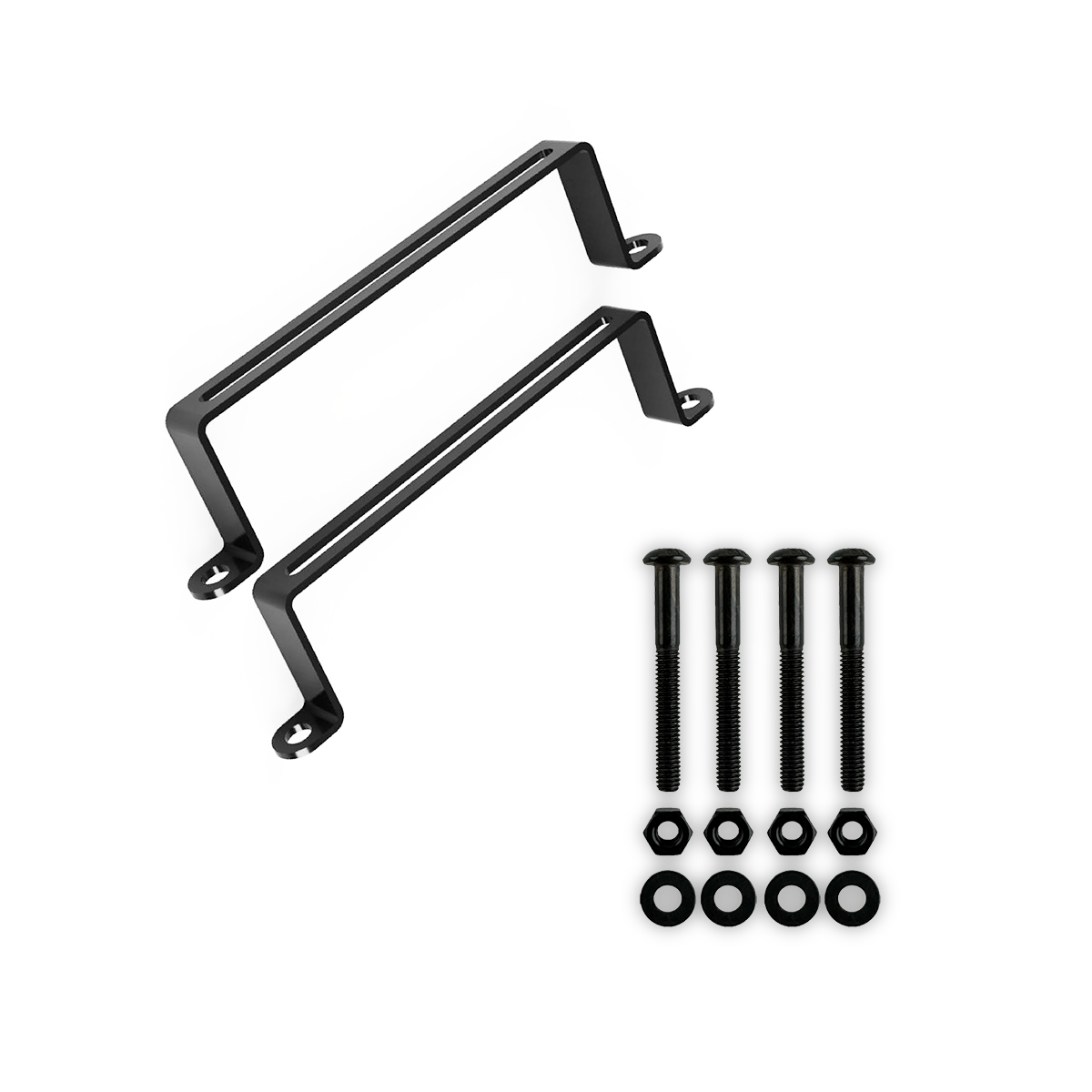

Included in delivery

• 1x pair of SK-FLEX mounting brackets 28 mm (120 mm fan)
• 4x M4 washers
• 4x M4x35 mm mounting screws
• 4x M4x6 mm mounting screws
• 4x M4 nuts
