SK-Crosscool III Lian Li O11 DYNAMIC EVO RGB Distroplate D-RGB
Ready to ship 1-3 days
Details

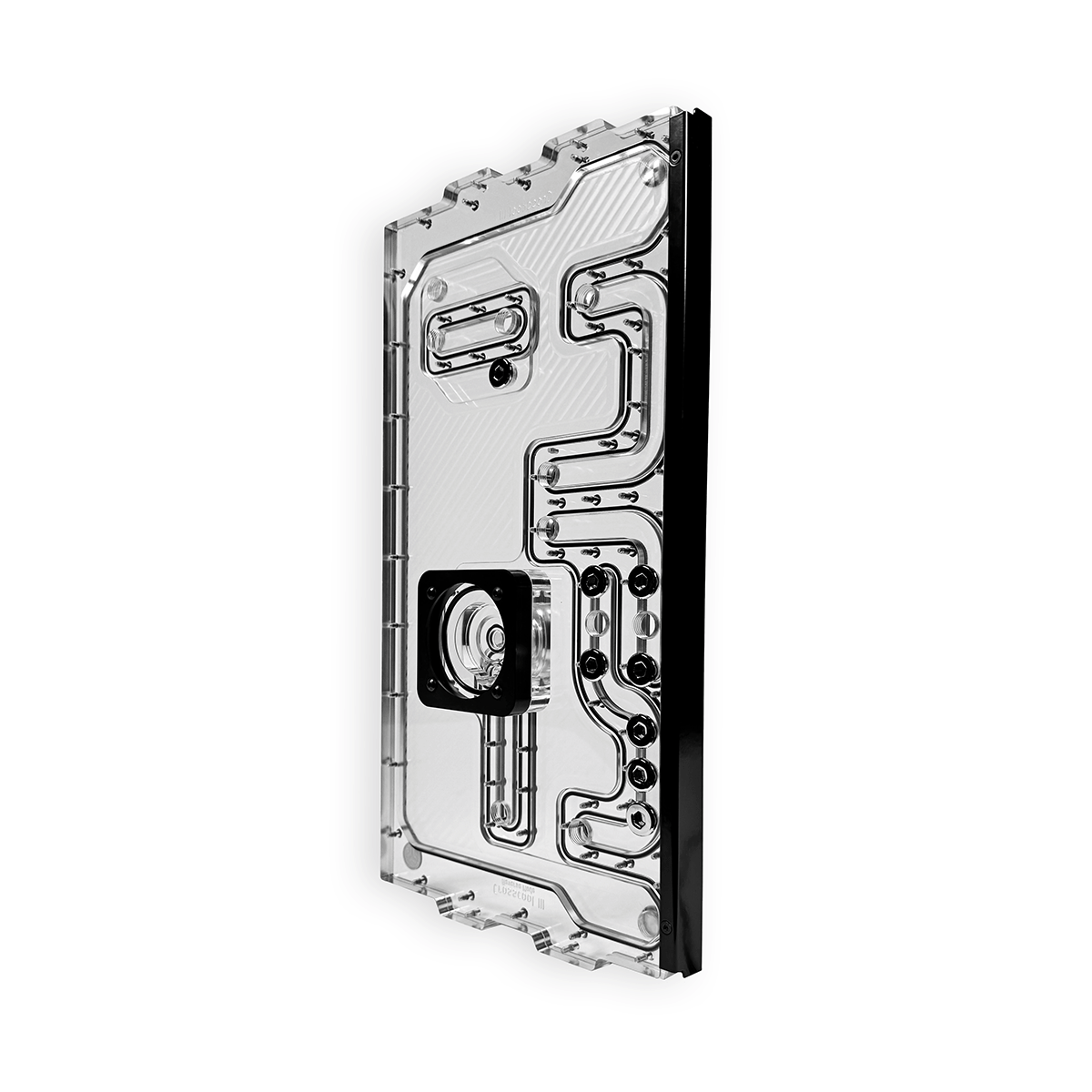

The SK-Crosscool III Lian Li O11 DYNAMIC EVO RGB Distroplate D-RGB is a distro plate, as well as an expansion tank and pump solution in one. Suitable for the front of the Lian Li O11 Dynamic EVO RGB case.
High quality materials
Only branded acrylic glass is used for the production of the distro plates. The material is machined on precision machines in the Stealkey Customs halls. In addition, M3 stainless steel screws are used to assemble the distroplates. Powder-coated sheet steel covers the D-RGB stripes on the side, which are soldered by hand.

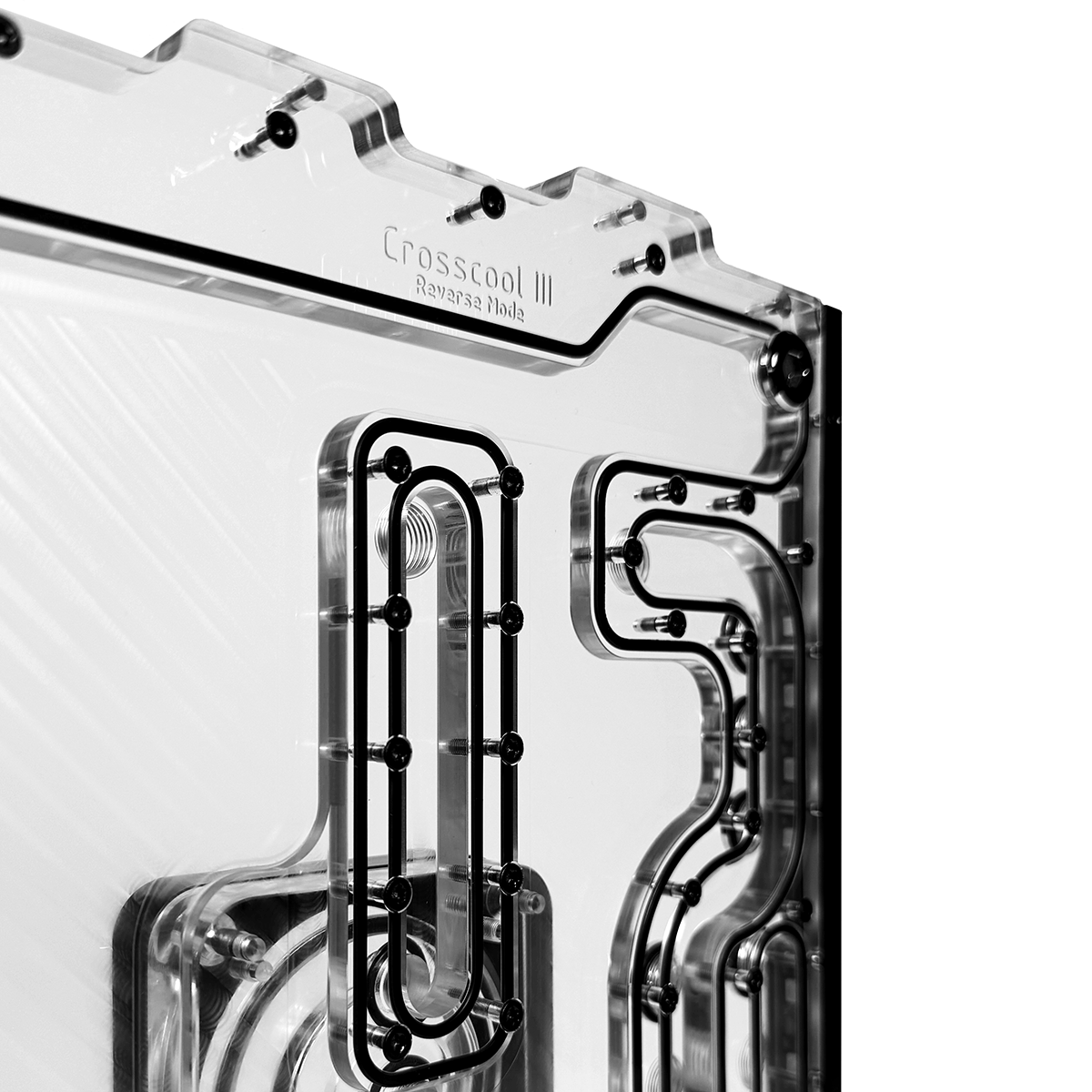

Reverse Mode
The Crosscool 3 allows you to invert your configuration. This is because the Lian Li O11 DYNAMIC EVO RGB case can be mirrored if required. The graphics card and mainboard then do not have to be viewed from the left, but can be viewed from the right side panel.
Ideal for CPU and GPU waterblocks
A total of 9 ports ensure the connection of a vertically and horizontally installed GPU cooler. Of these, 6 ports are available for the input and 3 for the output. Their spacing is selected so that the graphics card cooler can be connected to the connections on the distroplate in a straight line, regardless of the PCI slot in which the graphics card is located. can be connected in a straight line. Two further ports with a distance of 28 mm enable a CPU cooler to be connected to the distroplate in a straight line.
Compatible radiators
The Distroplate supports up to 3x 360mm radiators, so that the size advantages of the case can be exploited to get the full potential out of the hardware components.
With the Distroplate installed, the maximum radiator thickness is as follows:
Pump holder for D5 and DDC pumps

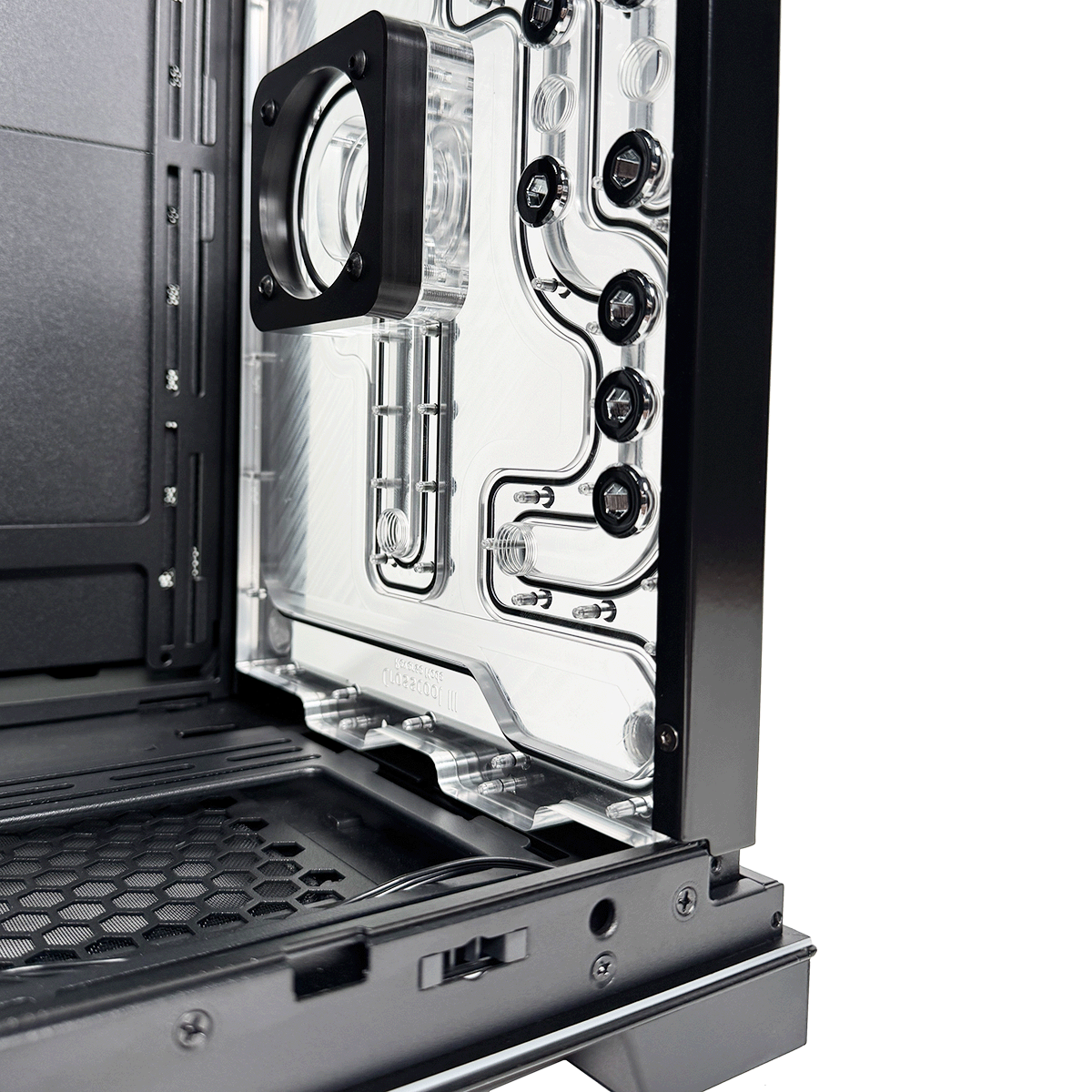

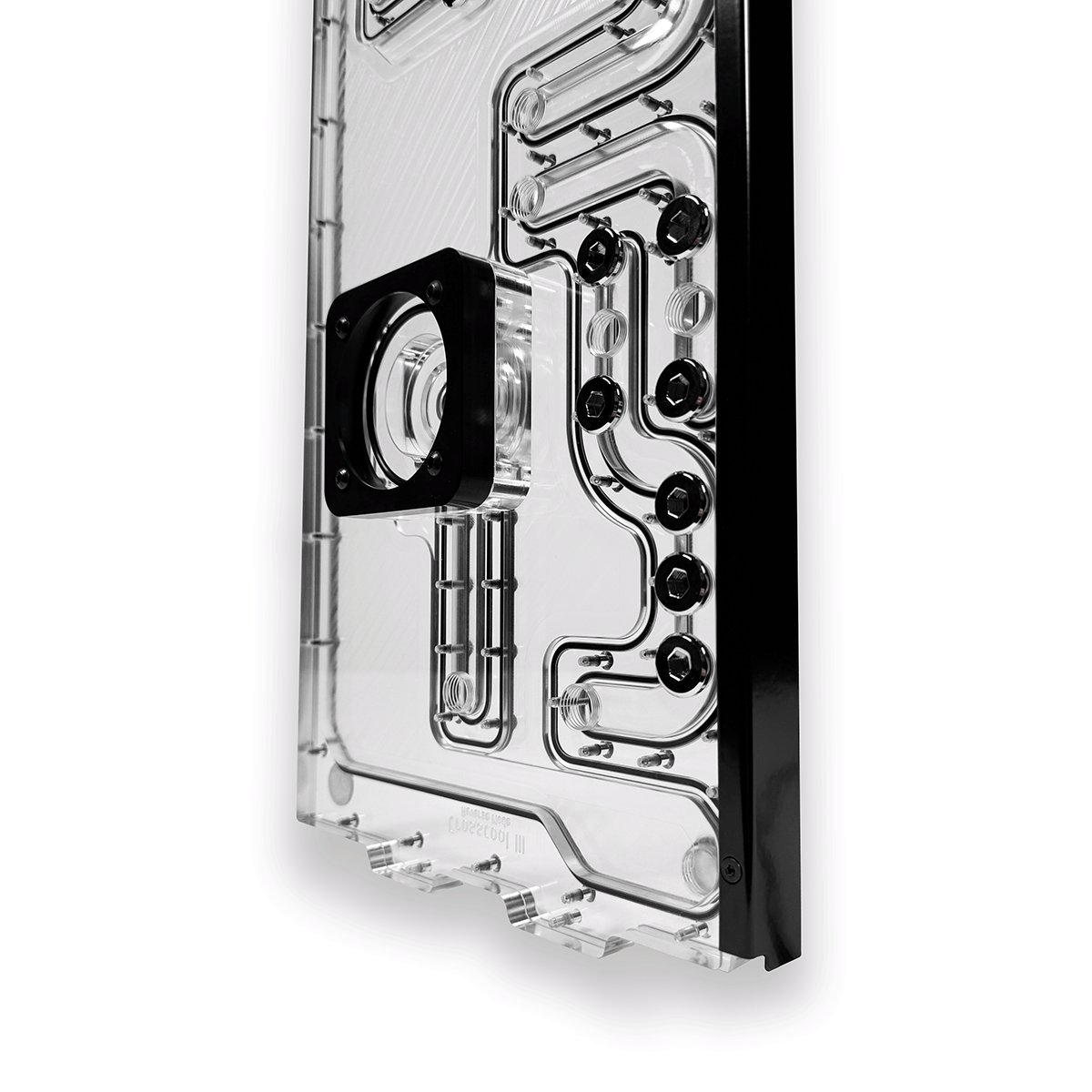

We use a proven principle for mounting the Xylem Lowara D5 and DDC pumps. A custom-made adapter is attached to the distro plate. A D5 ring made of POM is slipped over the D5 pump and then fixed to the adapter. The DDC pump, on the other hand, can be attached directly to the adapter. However, this requires M4x25 mm (available separately in the store). The result is a universally usable distro plate for both D5 and DDC pump enthusiasts.
Easy installation of the Distroplate

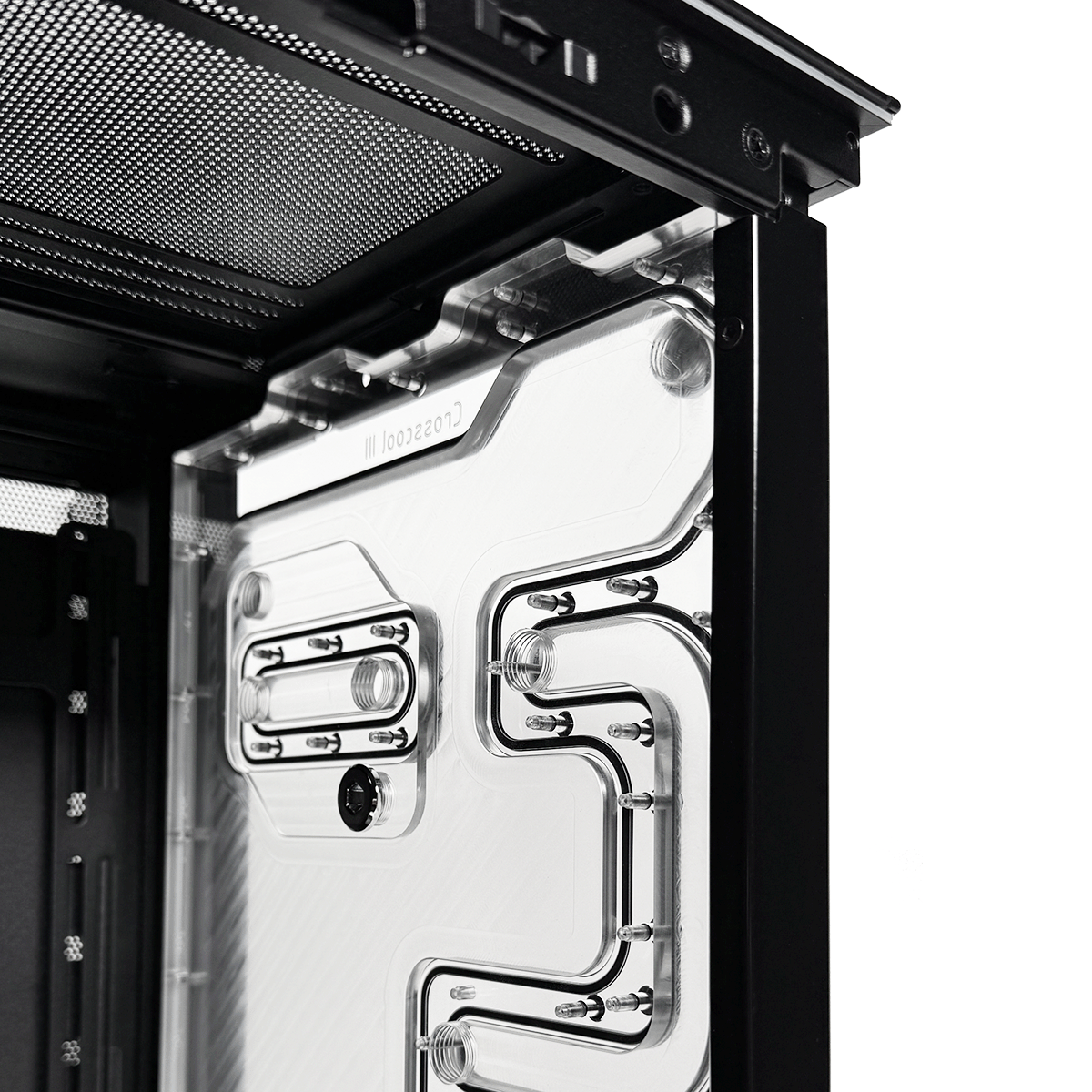

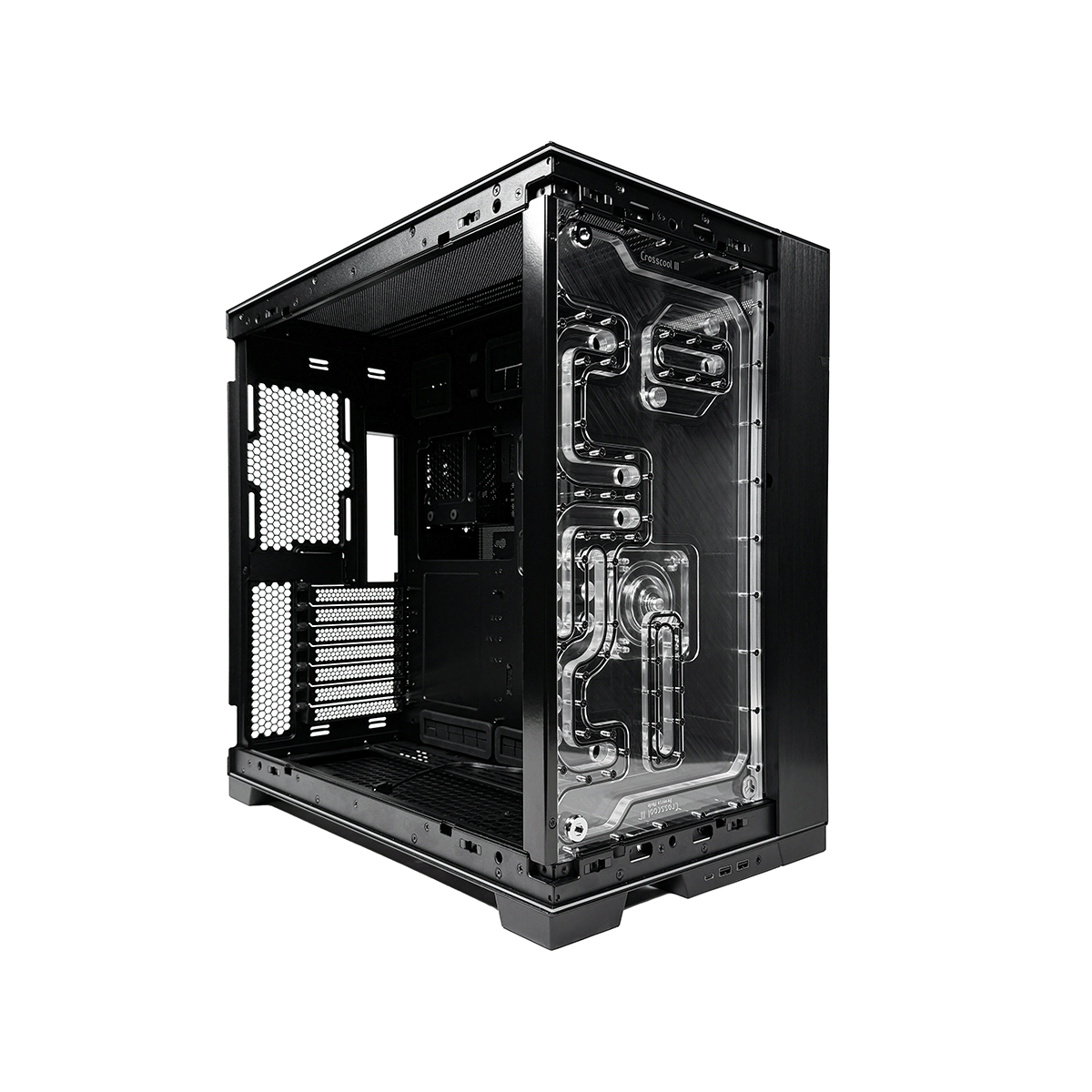

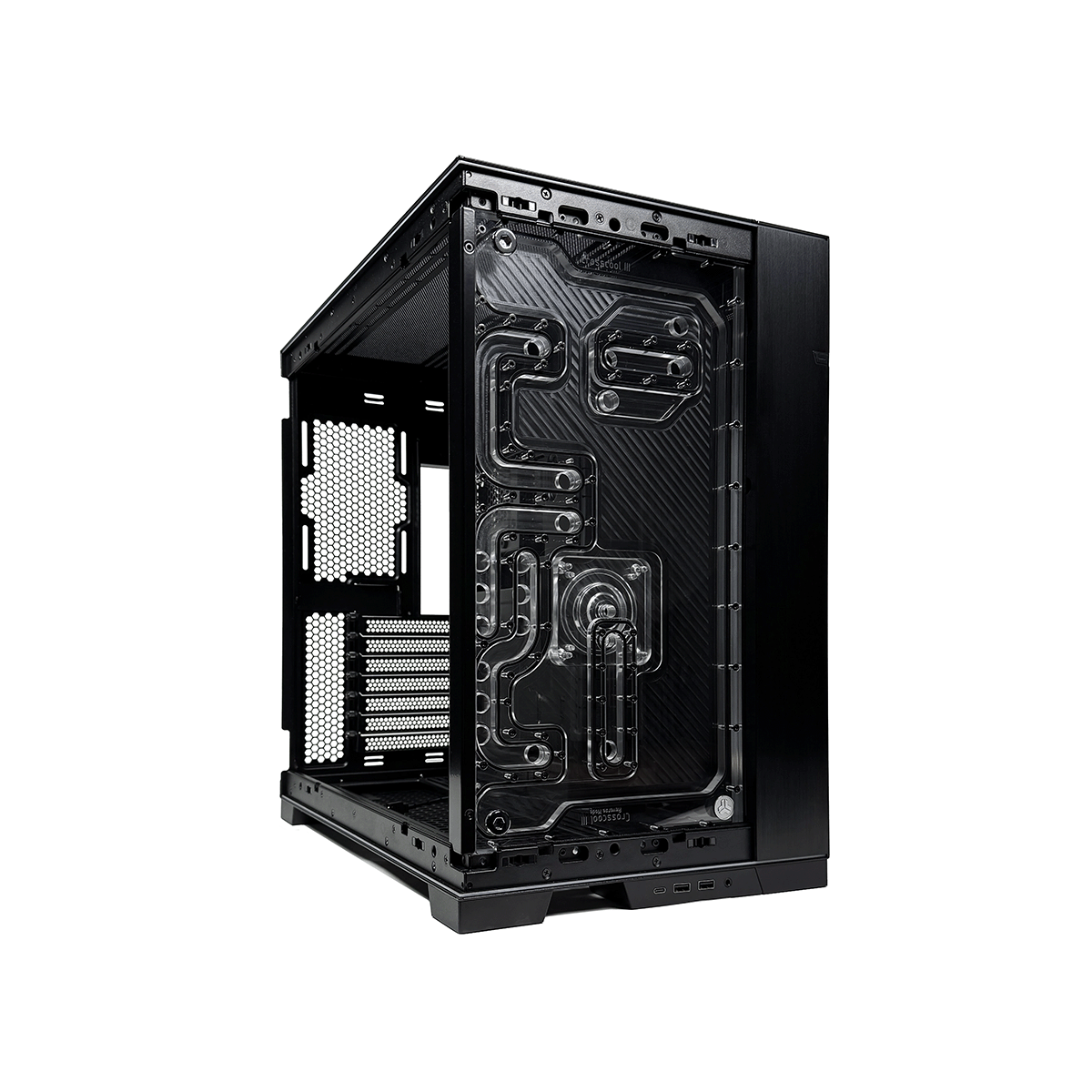

The Crosscool III is mounted with four screws on the front of the housing, directly behind the windshield. Two screws at the top and two screws at the bottom ensure a perfect fit. These screws fit exactly into the existing mounting holes of the housing, making installation particularly easy and user-friendly. easy and user-friendly.
Addressable D-RGB lighting
To give your configuration that little bit extra, we have of course thought of the D-RGB lighting. It is connected to a 3-pin 5V header on the motherboard. A powder-coated steel strip conceals the view of the individual spots on the RGB stripe, so that an even band of light illuminates the distroplate and the coolant. the distroplate including the coolant.
Features at a glance
• Distro Plate, as well as expansion tank and pump solution in one
• High quality materials
• revers mode
• compatible for the Lian Li PC O11 Dynamik EVO RGB
• supports vertical & horizontal installation of the GPU
• Support for GPU, CPU & 3 radiators
• Suitable for D5 & DDC pumps
• Compatible with D5 & DDC pumps
• Simple installation
Technical details
• Product dimensions (W x H x D): 216x419x51 mm
• Color: black and transparent
• Material: Acrylic glass, plastic, powder-coated steel
• Connections: 20x G1/4 inch ports
• Capacity: 300ml
• D-RGB cable length: 500mm
Delivery scope
• 1x SK-Crosscool III Lian Li O11 DYNAMIC EVO RGB Distroplate D-RGB
• 4x mounting screws
• 10x plugs
Instruction
Important notice
- Compatible only with the Lian O11 Dynamik Li EVO RGB case.
- Fixing screws for the DDC pump must be purchased separately.
- The DDC pump or D5 pump is water lubricated and must not run dry; otherwise permanent bearing damage may occur.
- Only screw the fittings hand-tight (0.7-1.5 Nm) into the distroplate. Do not use alcohol-based cleaners. Danger: Acrylic can crack
Customer Reviews

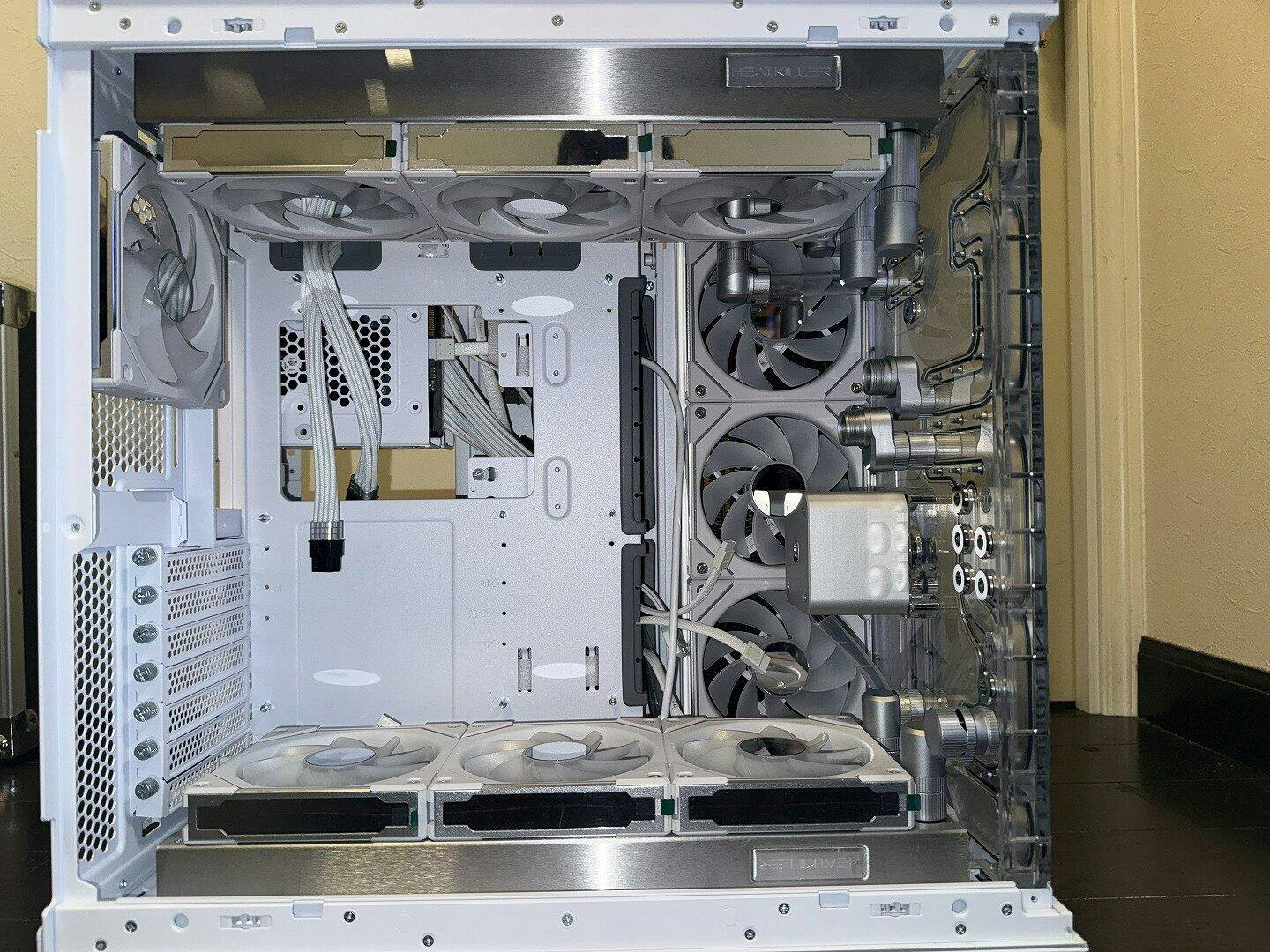

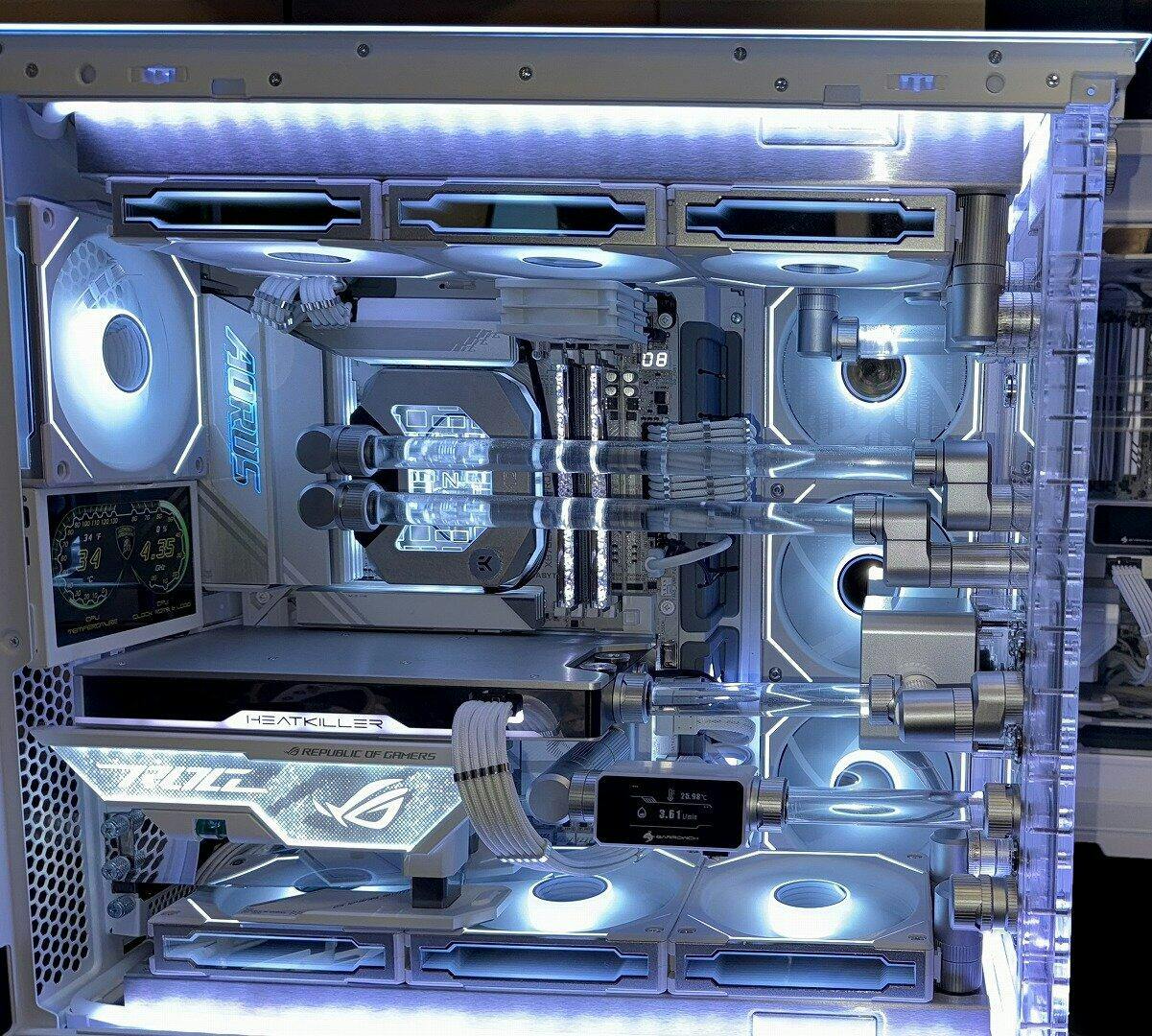

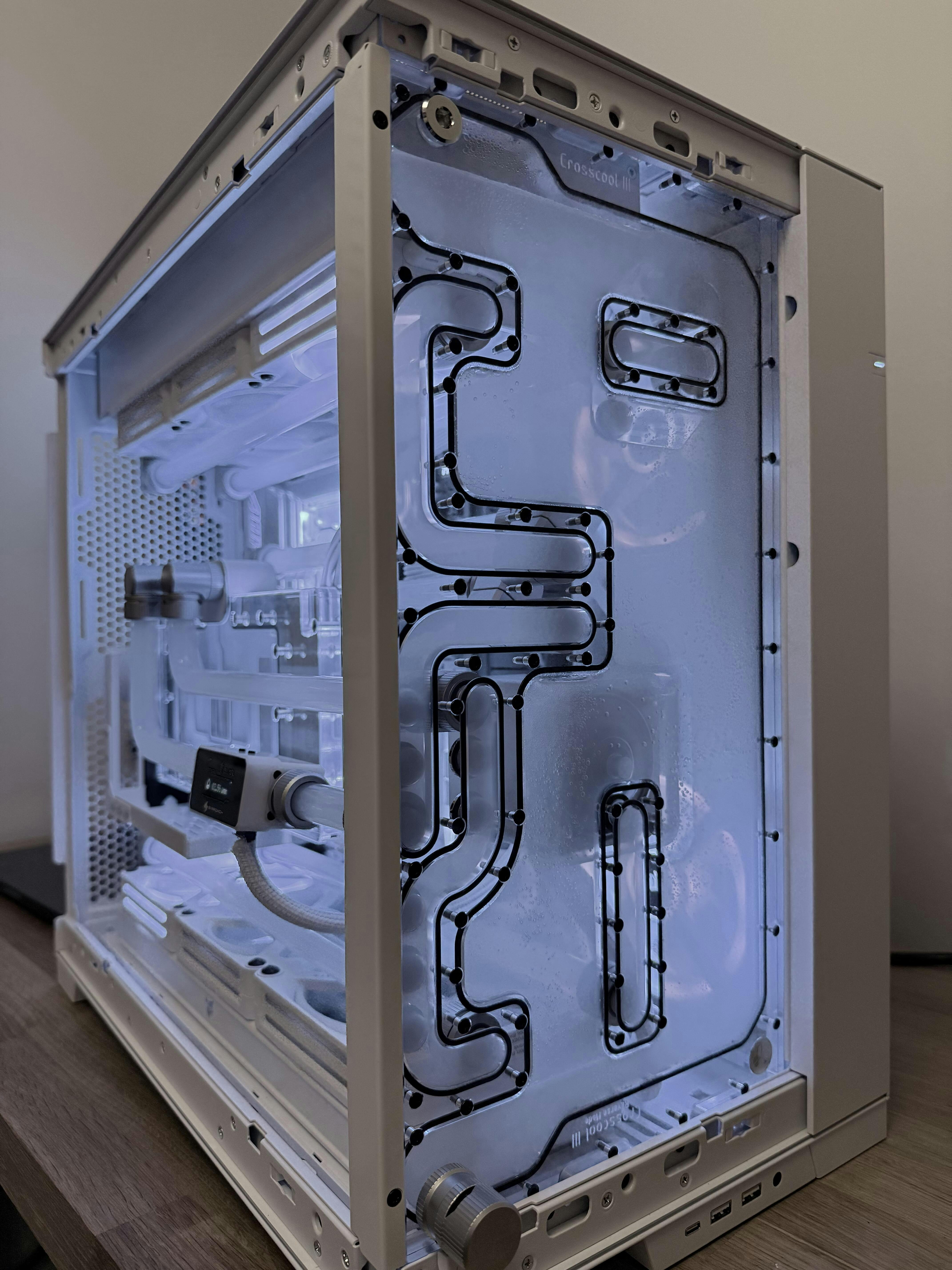

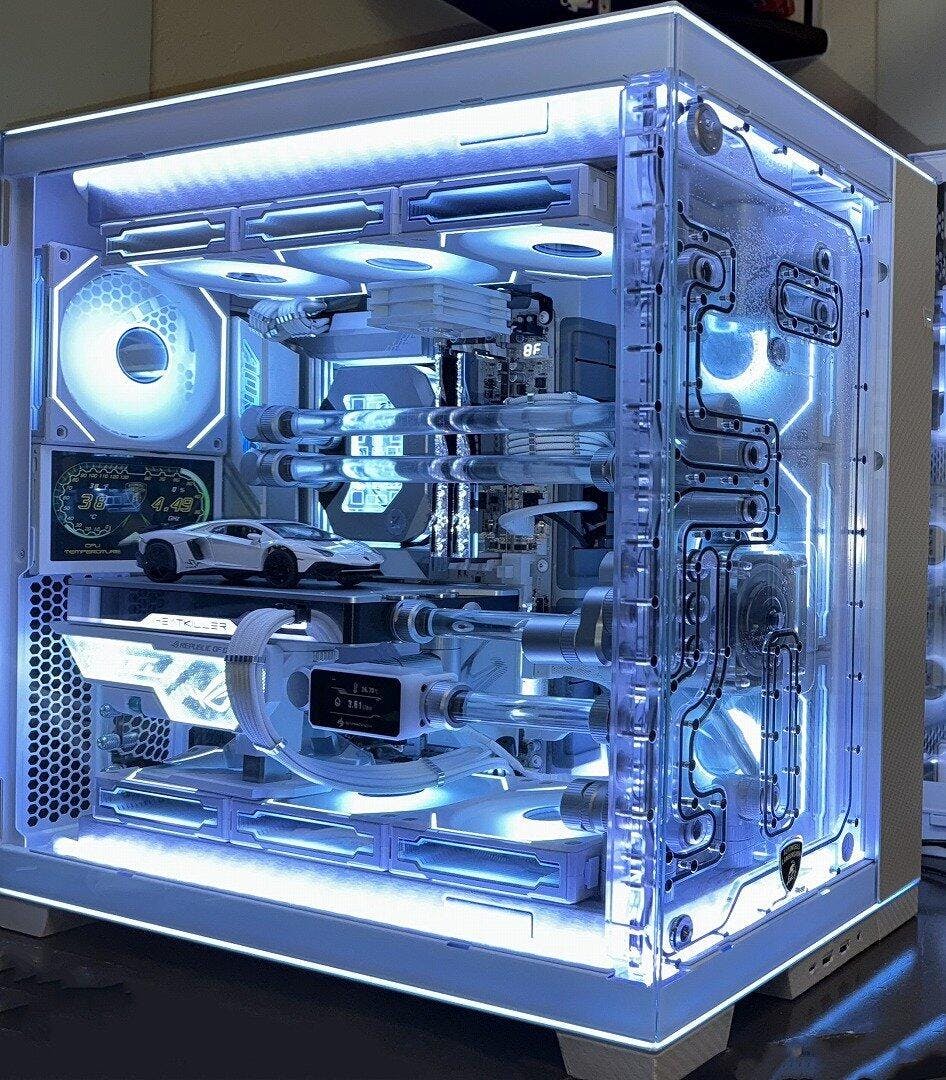

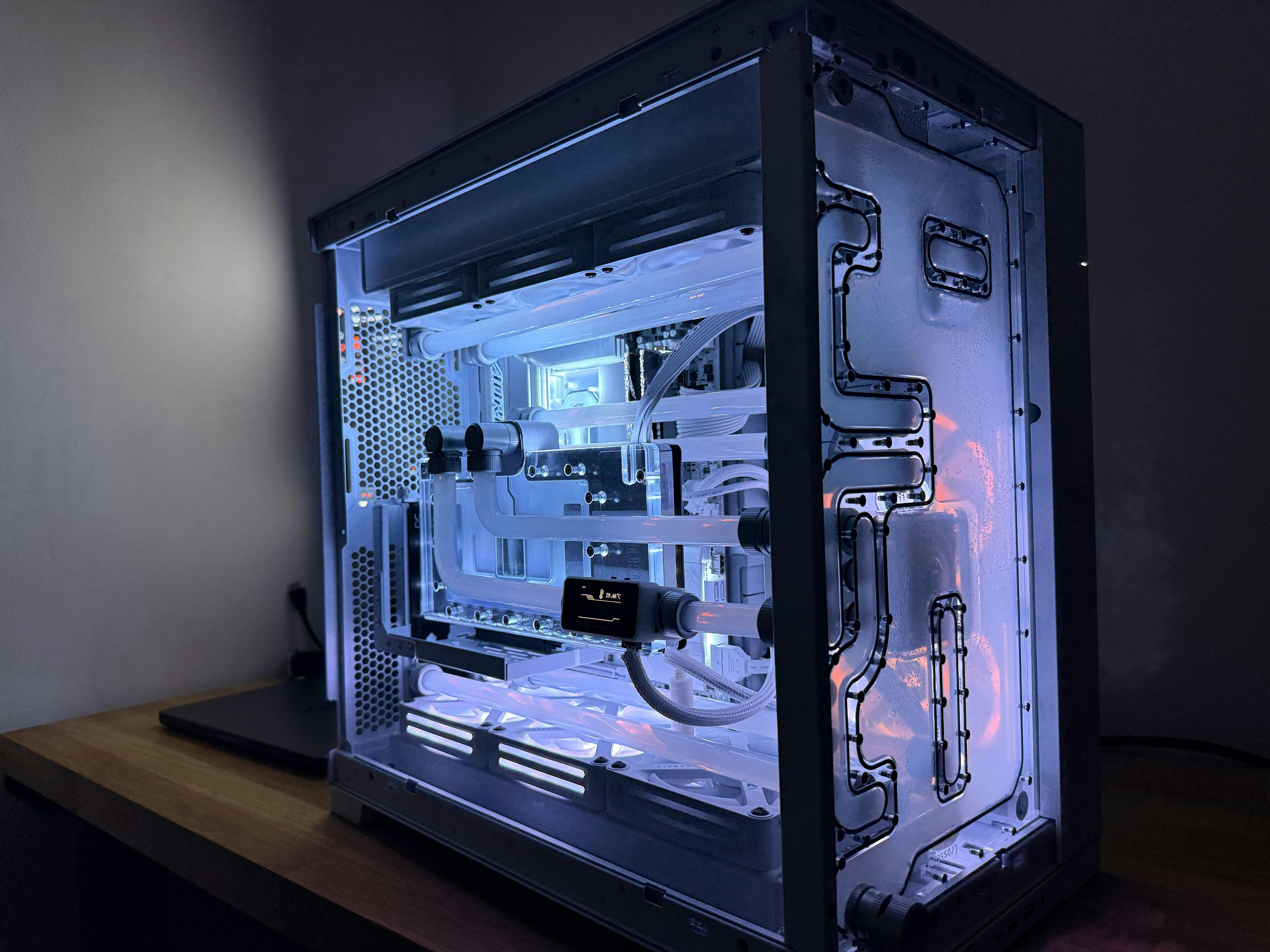

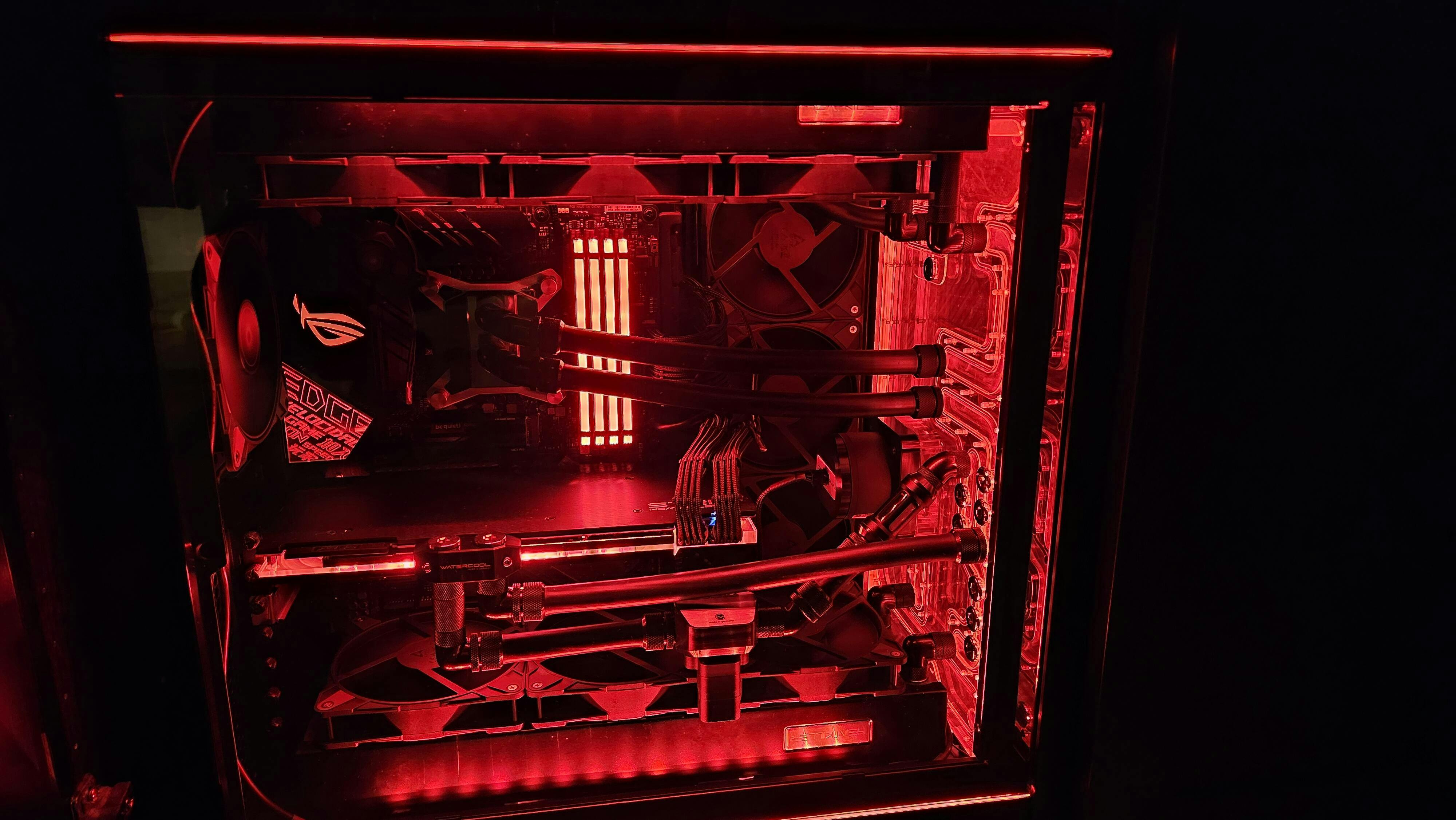

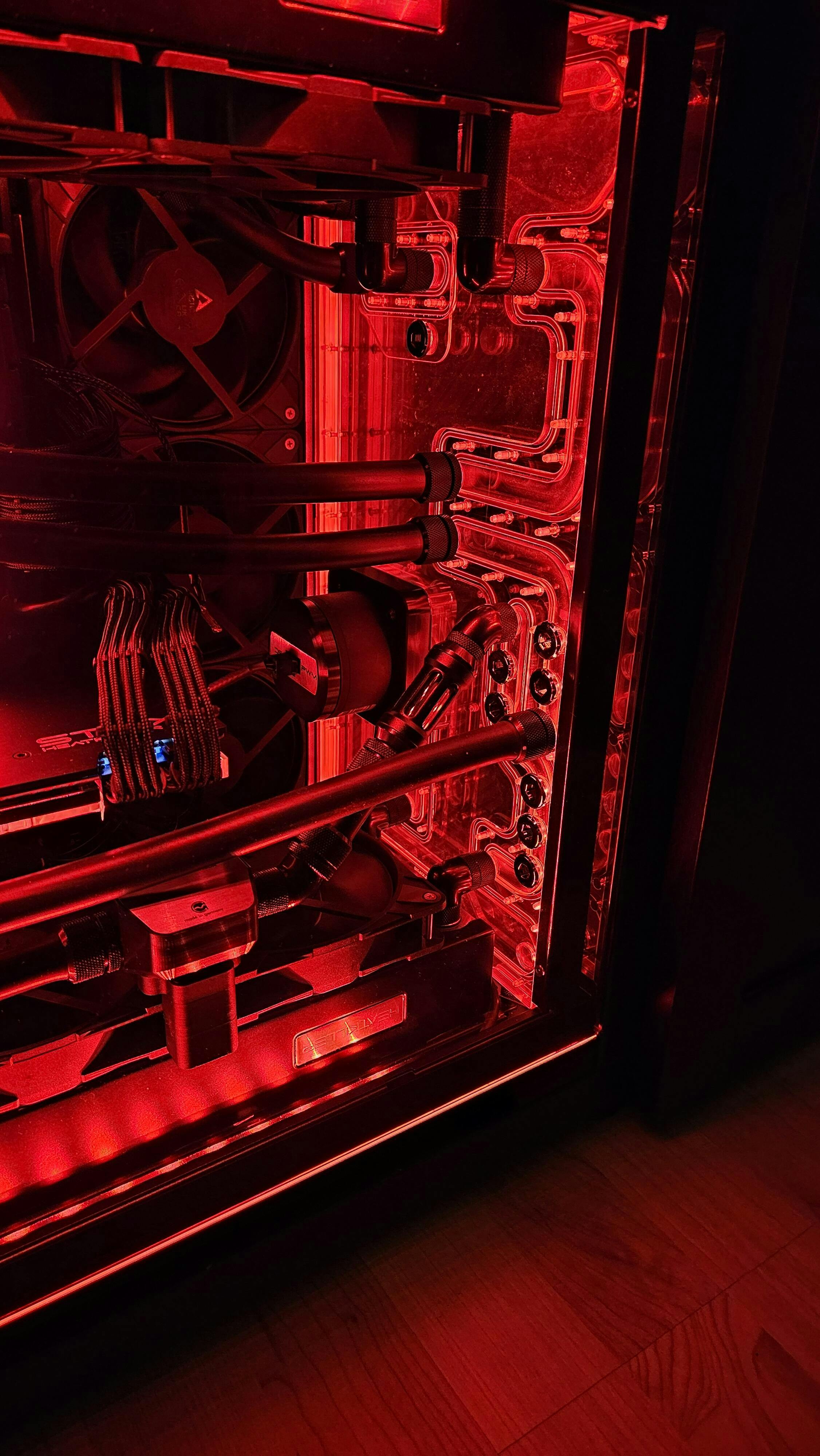

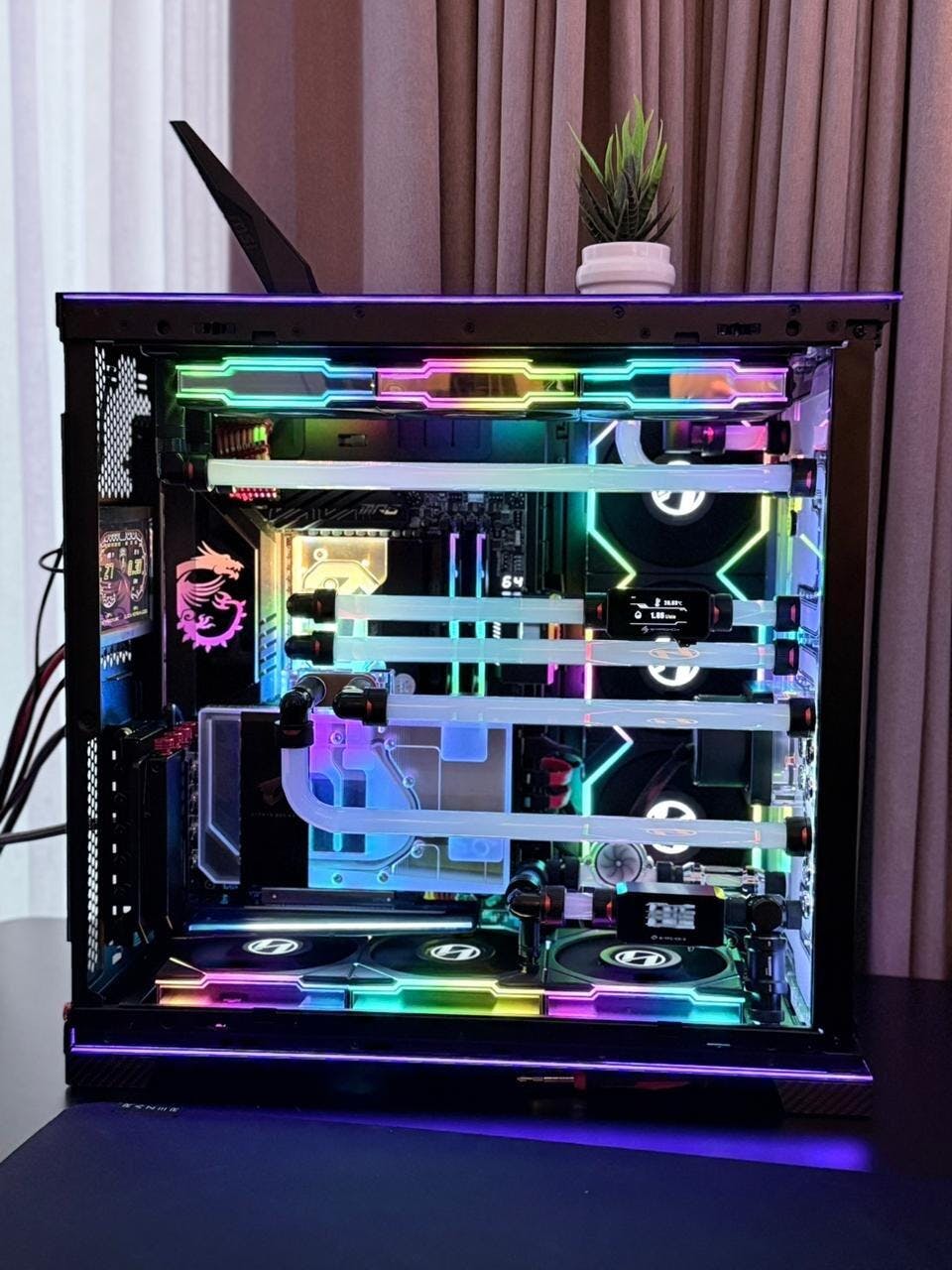

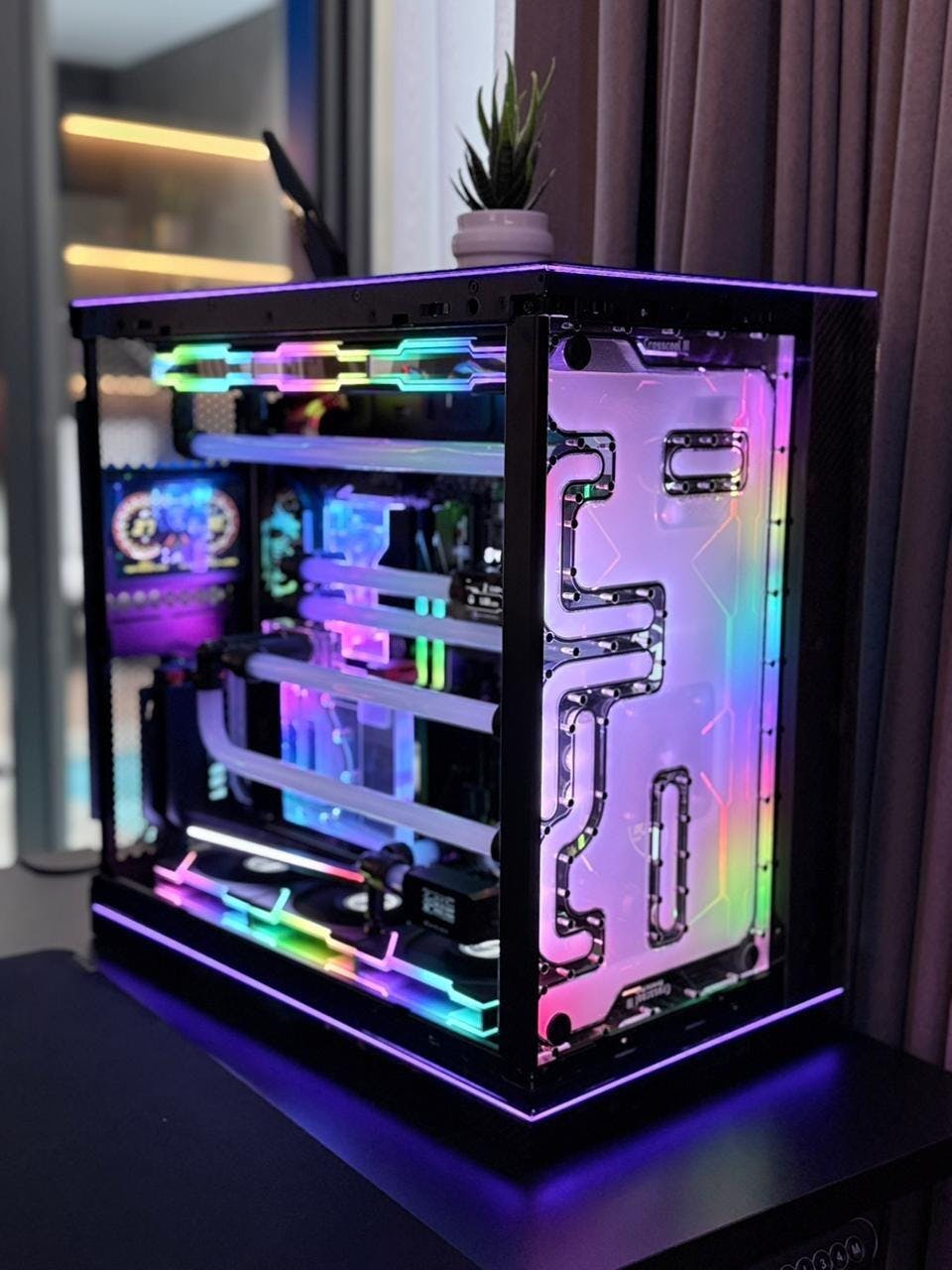

Having waited for a distro plate for the O11D Evo RGB for several months, I jumped at the first opportunity to pre-order this. It was super easy to install, feels very secure, and like other distro plates, they're just cool to look at. It's a hefty chunk of acrylic but I found (accidentally) it doesn't scratch easily, after accidentally bumping it across multiple sharp corners during install. Cannot recommend this unit enough.
I only have 2 things I wish this distro plate had:
1. I wish this plate sat flush with the front of the case to replace the front glass panel. It sits slightly behind the frame so there's a few millimeter gap between the front of the distro plate and where the glass panel would sit. IF you don't use the front glass panel, it can be a tad unsightly as you can see the mounting holes, etc.
2. I wish there was an internally facing drain port opposite of the externally facing one for those who do put the glass panel back on. If you use a drain valve on the front of the distro plate, there won't be enough clearance to put the glass panel back on. This has caused me to add a drain port on one of the other routing tubes which makes draining the loop incredibly time consuming.
But those are minor quibbles and shouldn't detract from buying this lovely product.
Passt wie angegossen ins Case. Lieferung: super schnell. Fertigungsqualität und Verarbeitung ist Klasse. Optik ebenfalls kaum zu toppen. Auch Rückfragen wurden umgehend beantwortet. Einbau mit 3x 360er Radiatoren war etwas frickelig (alle 3 fest mit Winkeln und Verlängerungen an der Distro verschraubt)
Gerne wieder.
