Stealkey Customs
SC ResPro 360 D5/DDC D-RGB
Expected to be available from 19.08.2025
Details

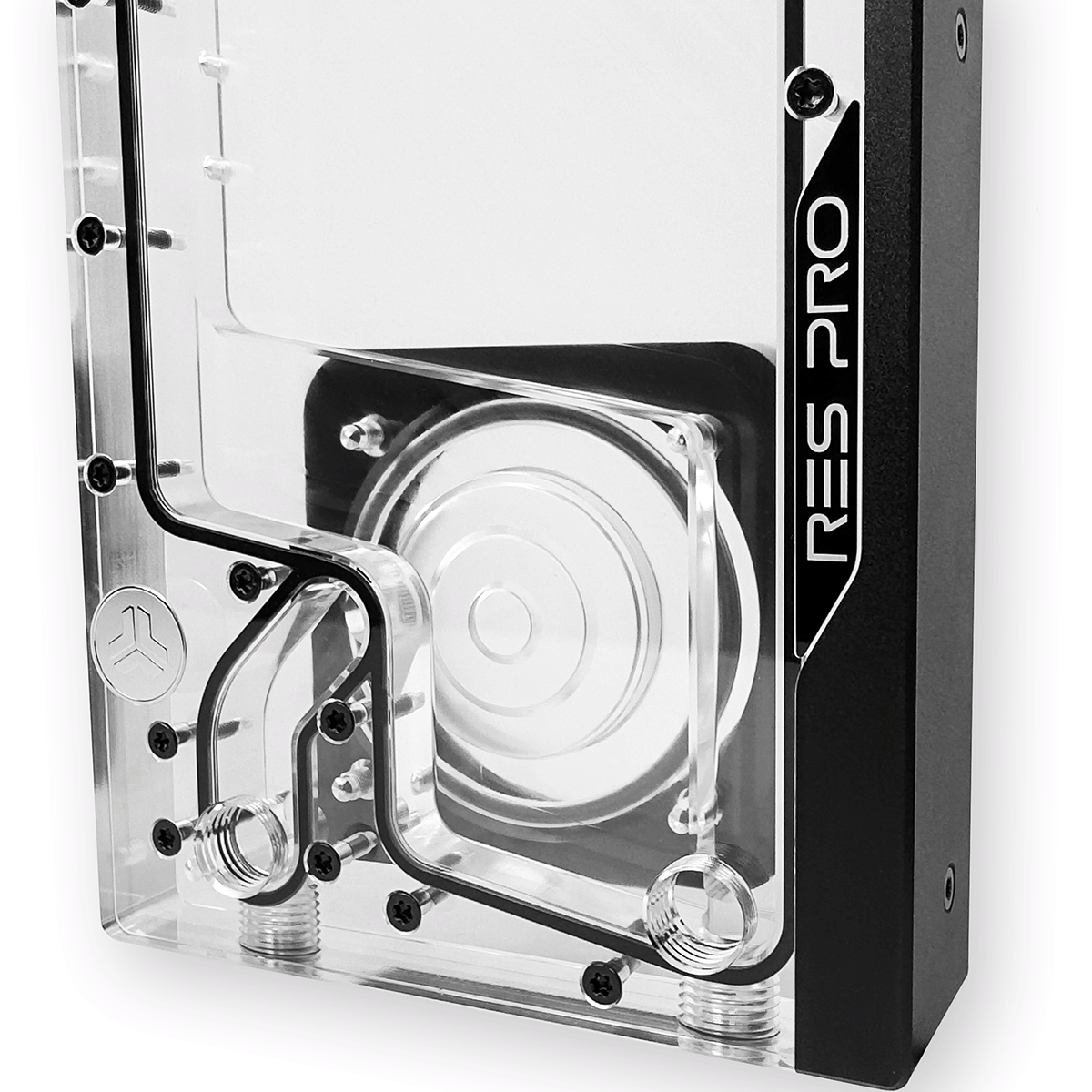

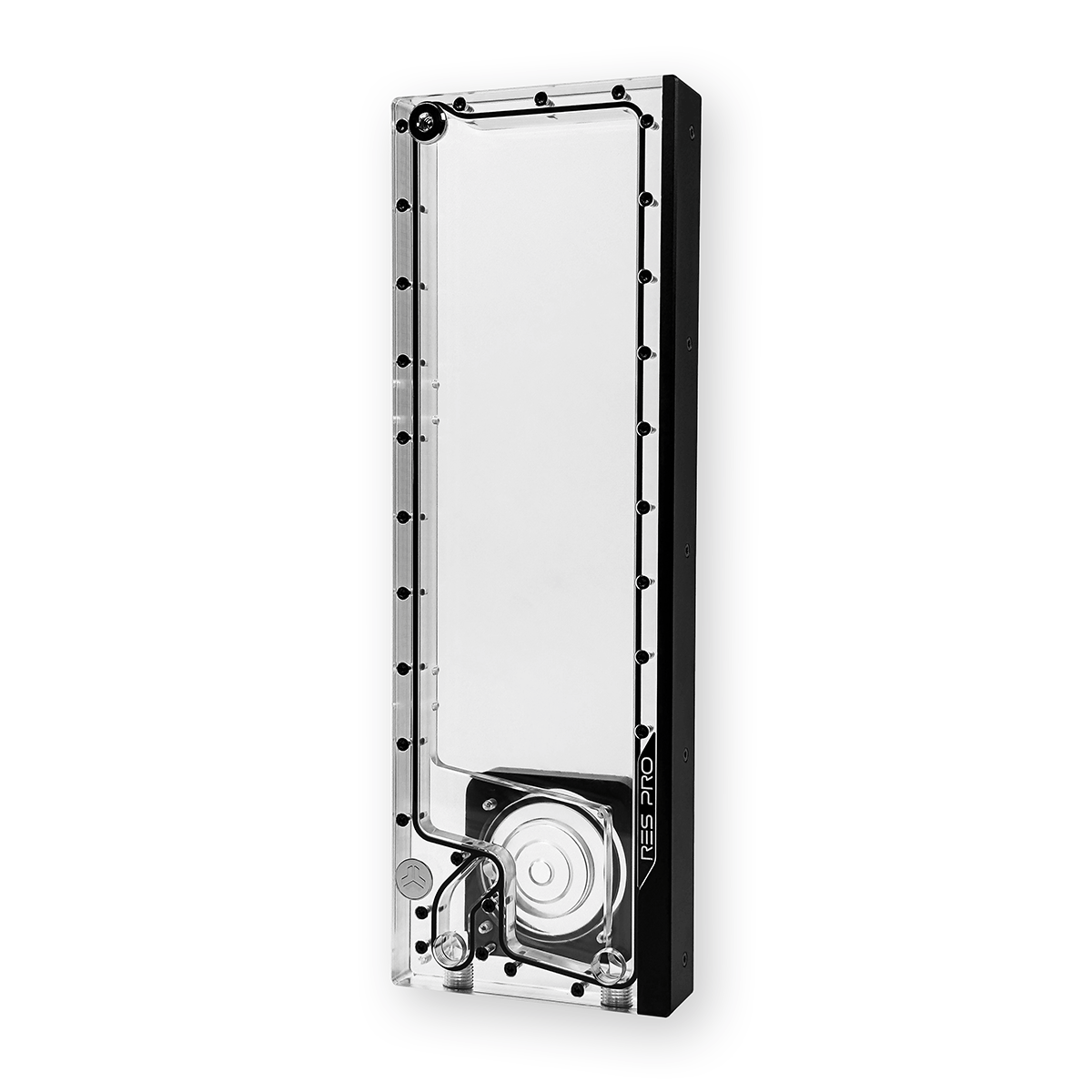

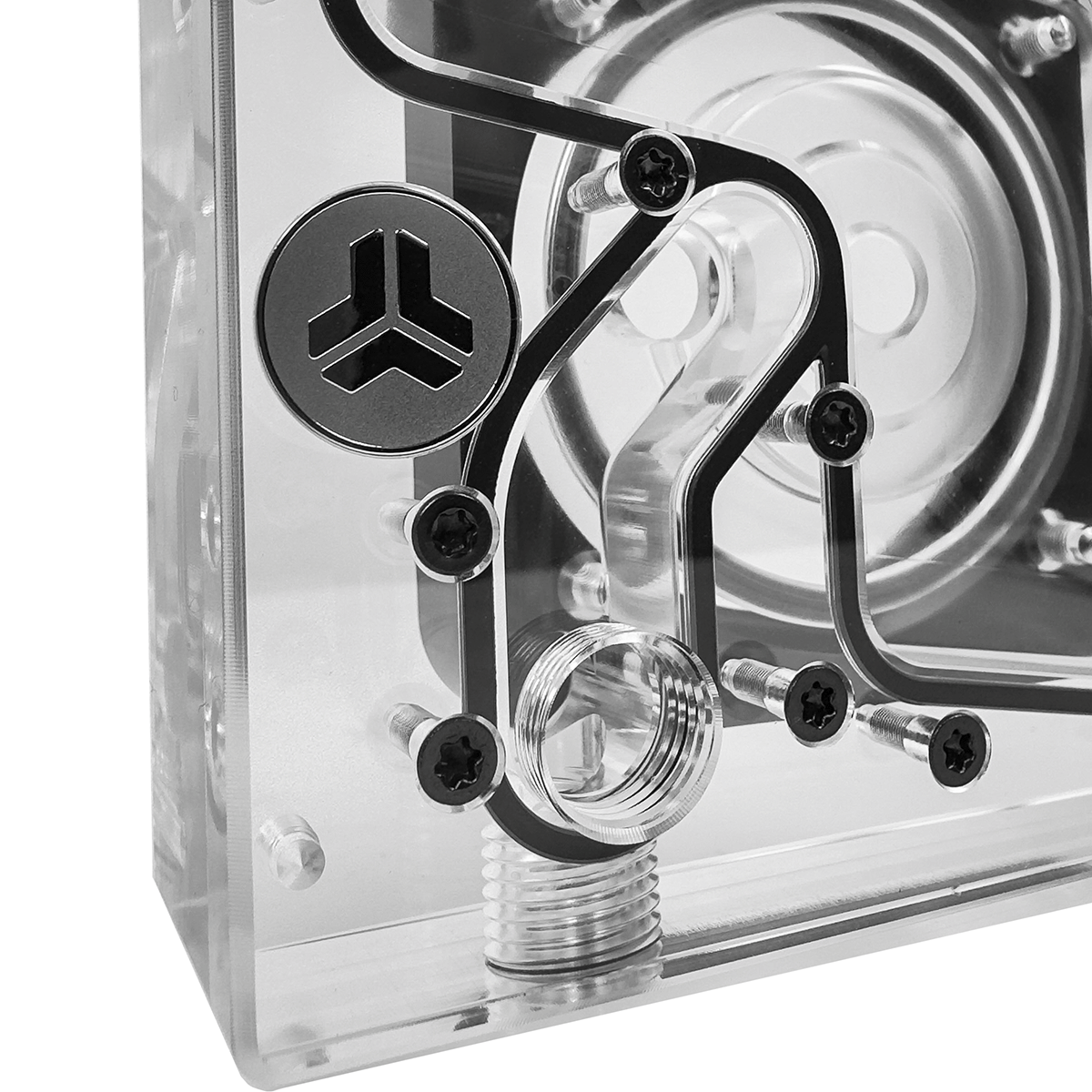

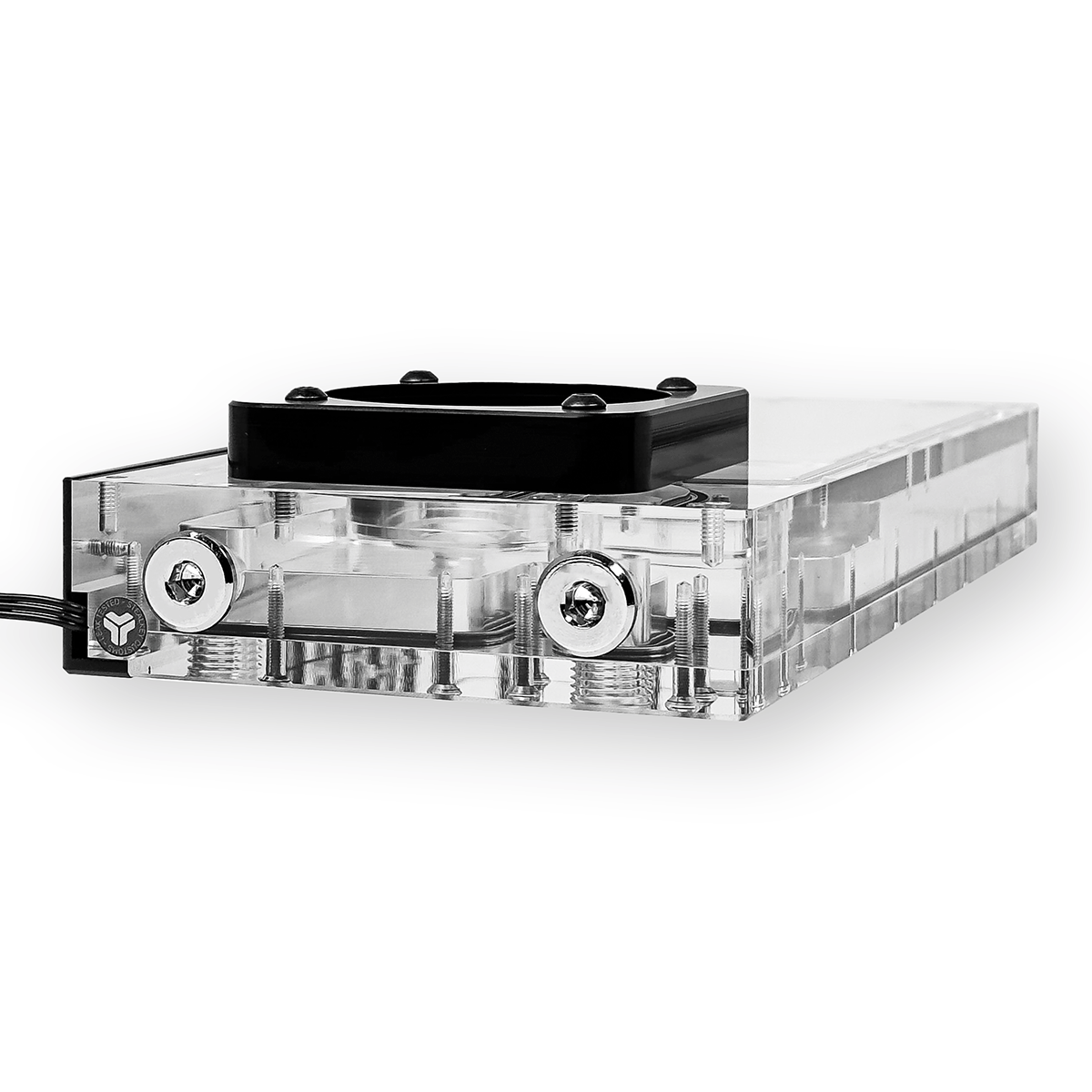

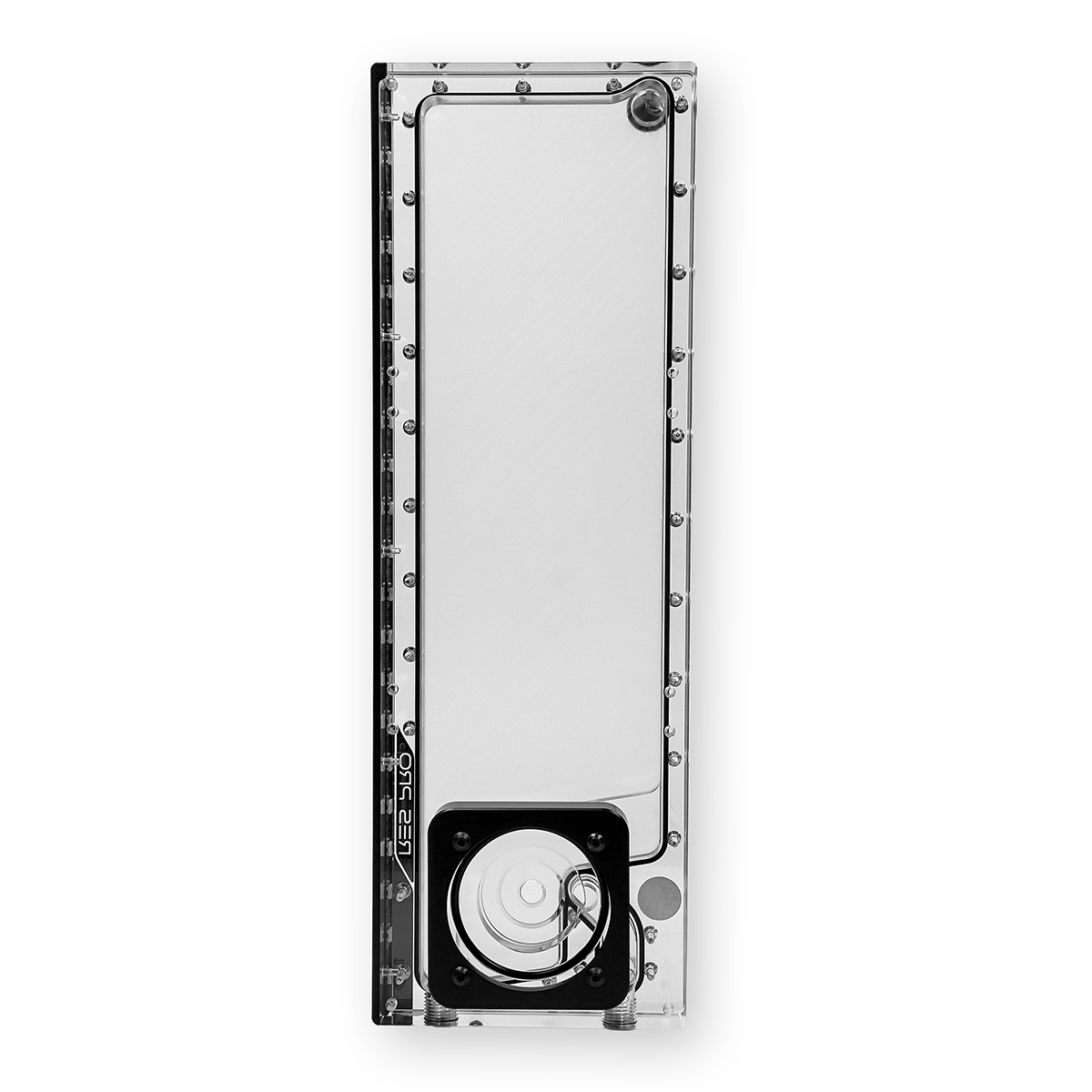

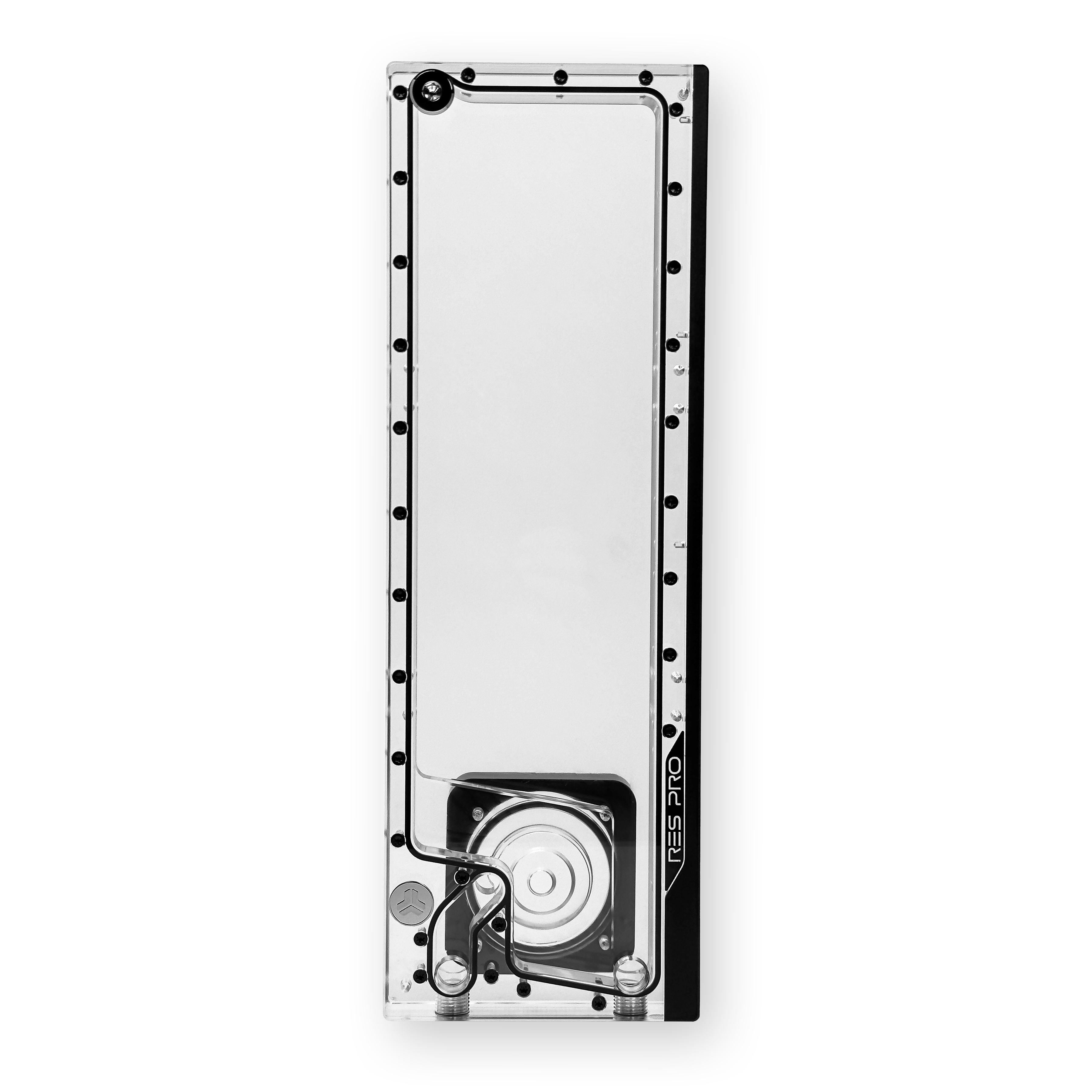

The SC ResPro 360 D5/DDC D-RGB is a high-performance pump and reservoir combination in a generous 360 mm format.
It is compatible with both D5 and DDC pumps and offers a total of five G1/4-inch ports, providing versatile options for integration into complex water cooling systems.
Mounting the ResPro 360 Reservoir
Installation is simple via standardized 120 mm fan mounting holes with a spacing of 105 mm. This allows for easy installation on both radiators and case panels.
In addition, the ResPro 360 can be flexibly positioned in demanding builds using special mounting brackets. Its design fits into almost any case with a 120/360 mm slot.
Material, Construction, and Lighting
The housing is made of precisely CNC-milled acrylic. The front uses 8 mm thick GS acrylic to effectively prevent stress cracks.
On the side, a high-quality black anodized aluminum cover conceals the integrated D-RGB lighting. This creates a cohesive design that perfectly combines function and appearance.
The addressable D-RGB lighting ensures even illumination without distracting hotspots. It can also be easily serviced or replaced if needed.
For Large Loops and High-Performance Systems
Thanks to its size and thoughtful port placement, the ResPro 360 is ideal for large gaming PCs or elaborate show builds.
The slim design helps save space without compromising cooling performance. A custom EPDM gasket ensures a permanently leak-proof connection between all components.
Coolant Note
For safe operation, only suitable coolant should be used. This protects against corrosion, deposits, and material damage.
An up-to-date list of compatible coolants is available online and can be accessed at any time.
Technical Details of the ResPro 360
- Precisely CNC-milled housing
- Dimensions (W x H x D): 360 x 120 x 33 mm
- Material: Acrylic glass (GS), aluminum (anodized)
- Color: transparent / black
- Reservoir volume: approx. 250 ml
- D-RGB cable length: 500 mm
- Ports: 5 x G1/4"
- Mounting: 120 mm fan holes (105 mm spacing), M4 screws
Scope of Delivery
- 1x SC ResPro 360 D5/DDC D-RGB (without pump)
- 4x M4 mounting screws
- 3x G1/4 stop plugs
Important Note
- Compatible with any case that has a 120 mm fan mount.
- D5 or DDC pump is not included.
- The use of incompatible coolants can cause damage to acrylic components.
- DDC or D5 pumps are water-lubricated and must not be run dry, as this can cause permanent bearing damage.
- Do not use alcohol-based cleaning agents or solvents to clean the reservoir or distro plates, as these can damage the acrylic.
