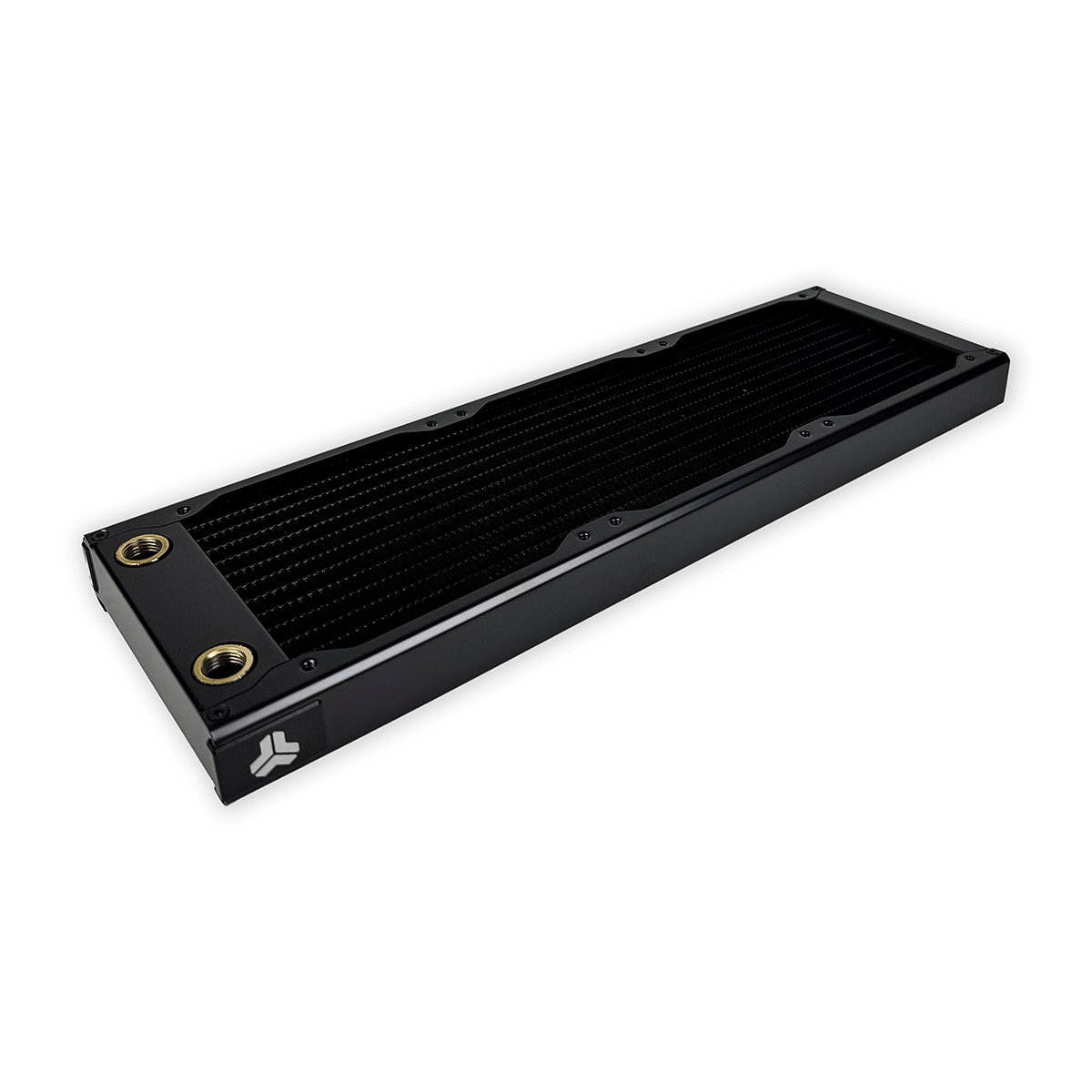

SC RadPro L360 H30 – Black

Details

The SC RadPro L360 H30 – Black combines uncompromising cooling performance with a slim, modern design. Perfect for gamers, overclockers, and demanding workstation users who want to take their PC to the next level.

• Logo plug interchange system

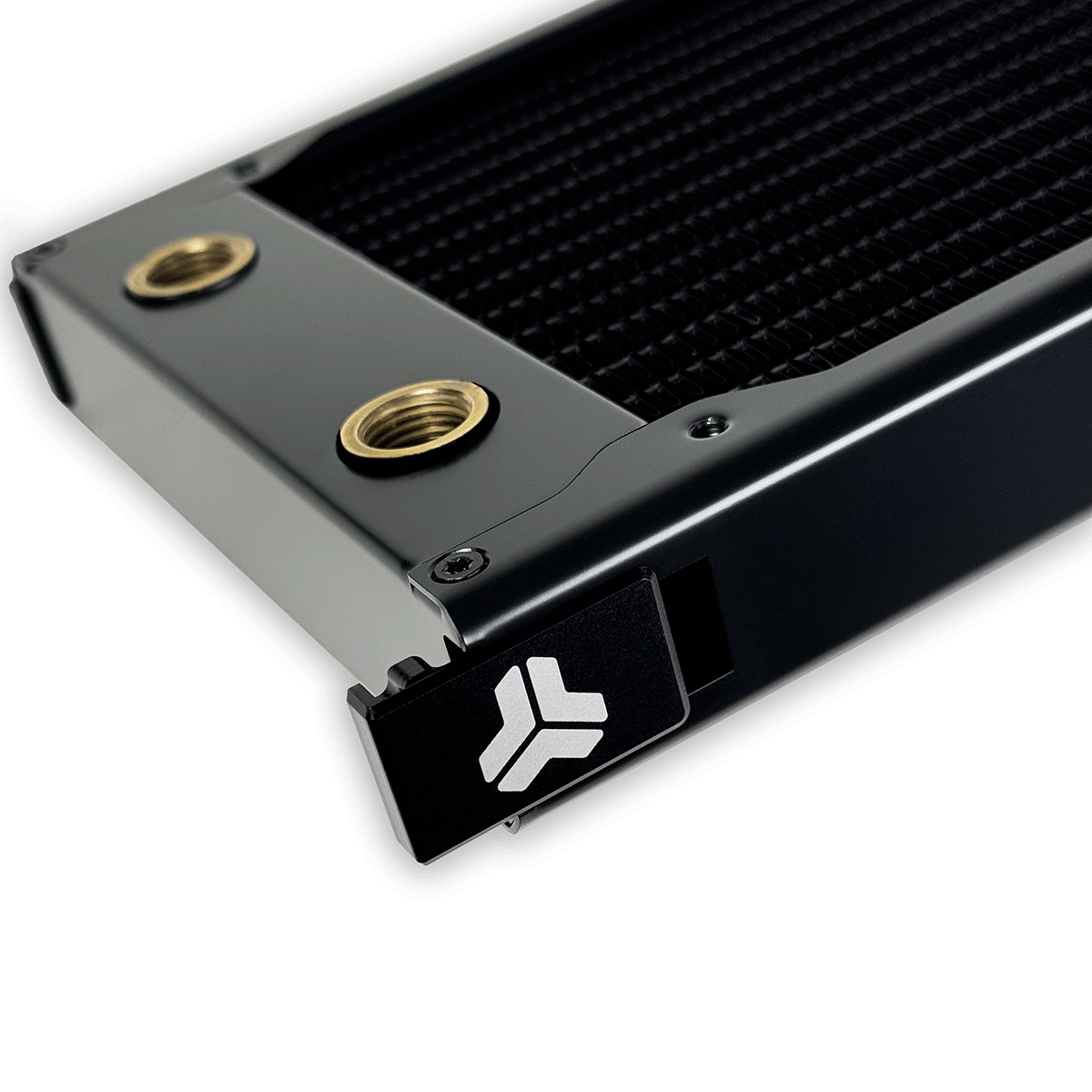

  Each side of the radiator features a removable logo plate (“logo plug”). This allows the logo to be easily repositioned depending on the installation orientation, ensuring correct alignment even in top-mount or bottom-mount installations.
• Compact dimensions
  With dimensions of 398 × 125 × 30 mm, the radiator remains extremely space-saving despite its thickness – ideal for cases that support 360 mm radiators.

High-quality material combination

The brass pre-chambers, in combination with the copper channels, ensure fast and even heat distribution and effectively reduce hotspots within the cooling loop.

All side rails and end plates are made of black-coated stainless steel, which not only provides reliable corrosion protection but also ensures a stable structure and a high-quality, uniform appearance.

Powerful and quiet across the entire RPM range of the RadPro L360

The optimized core structure delivers excellent cooling performance even at low fan speeds. As RPM increases, performance scales almost linearly:

• Low RPM: Efficient cooling with minimal noise
• Medium RPM: Balanced balance between noise level and temperature
• High RPM / Push-Pull: Maximum heat dissipation when up to six 120 mm fans are used in a push/pull configuration

Thanks to low air and water resistance, the radiator does not put additional strain on the pump or other components in the loop. Multiple SC RadPro radiators can easily be connected in series without overloading D5 or DDC pumps.

Easy integration into any water-cooling loop

Two standardized G1/4″ threads allow flexible and straightforward integration into the cooling loop – without the need for special adapters.

The SC RadPro L360 H30 – Black is supplied with black M4 screws and is compatible with all 120 mm fans. If longer screws are used accidentally, only the fins will be affected, not the fin core.

With a depth of just 125 mm, the radiator fits easily into all cases with standard 120 mm fan mounts without requiring additional modifications.

Modular design for DIY modding enthusiasts

The SC RadPro L360 H30 – Black is designed as a modular system. Each component can be easily disassembled:

• Remove logo plates: Tool-free removal by gently pulling them off.
• Detach side rails: Remove screws to access the copper core.
• Remove the core: Perfect for custom paint jobs, engravings, or extensions.

This allows you to customize your radiator as desired and integrate it into any custom-loop configuration.

Technical details – 360 mm radiator

• Fan compatibility: 120 × 120 × 25 mm fans
• High-quality copper fins (99.9%)
• Brass end tank chambers
• Side rails and end pieces made of black-coated stainless steel
• Product dimensions (W × H × D): 398 × 125 × 30 mm
• Weight: 1.4 kg
• Fan configuration: Up to 6 × 120 mm (Push / Pull)
• Fan mounting: M4 screws (for 25 mm fan thickness)
• Color: Black
• Connections: 2 × G1/4" ports
• Logo plug dimensions: 31.50 × 30.50 mm customizable free area for laser engraving (available separately in the shop)
• Pressure tested: 1 bar

Scope of delivery

• 1 × SC RadPro L360 H30 – Black
• 12 × M4 × 30 mm screws for 25 mm thick fans
• 12 × M4 × 5 mm screws for direct mounting of the radiator to the case/fan grill
