Phanteks NV7 x Stealkey Distroplate D-RGB

Details

The Phanteks NV7 x Stealkey Distroplate D-RGB is the optimal solution for the Phanteks NV7 PC case (without RGB kit). It serves as a water cooling reservoir, coolant routing and pump solution.

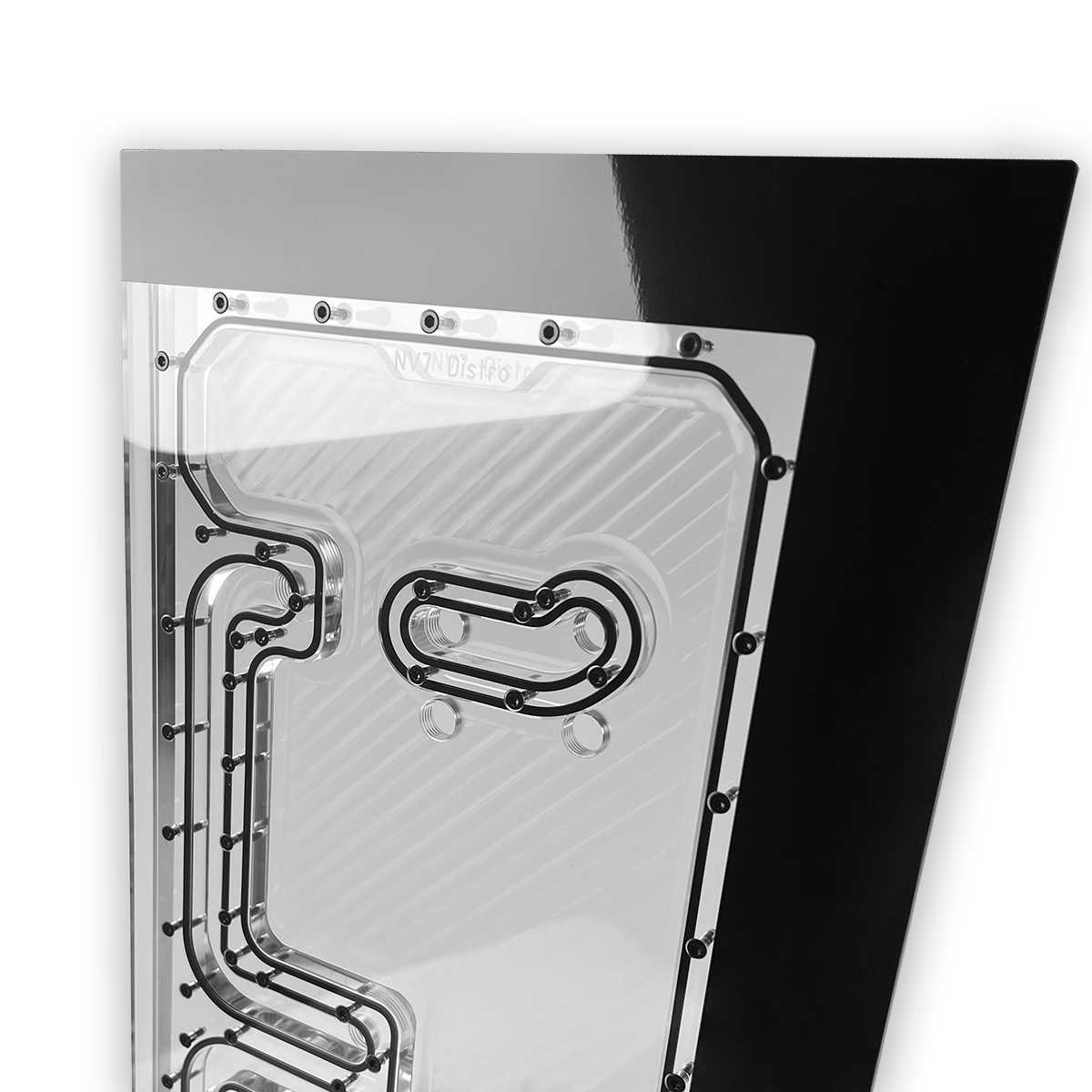

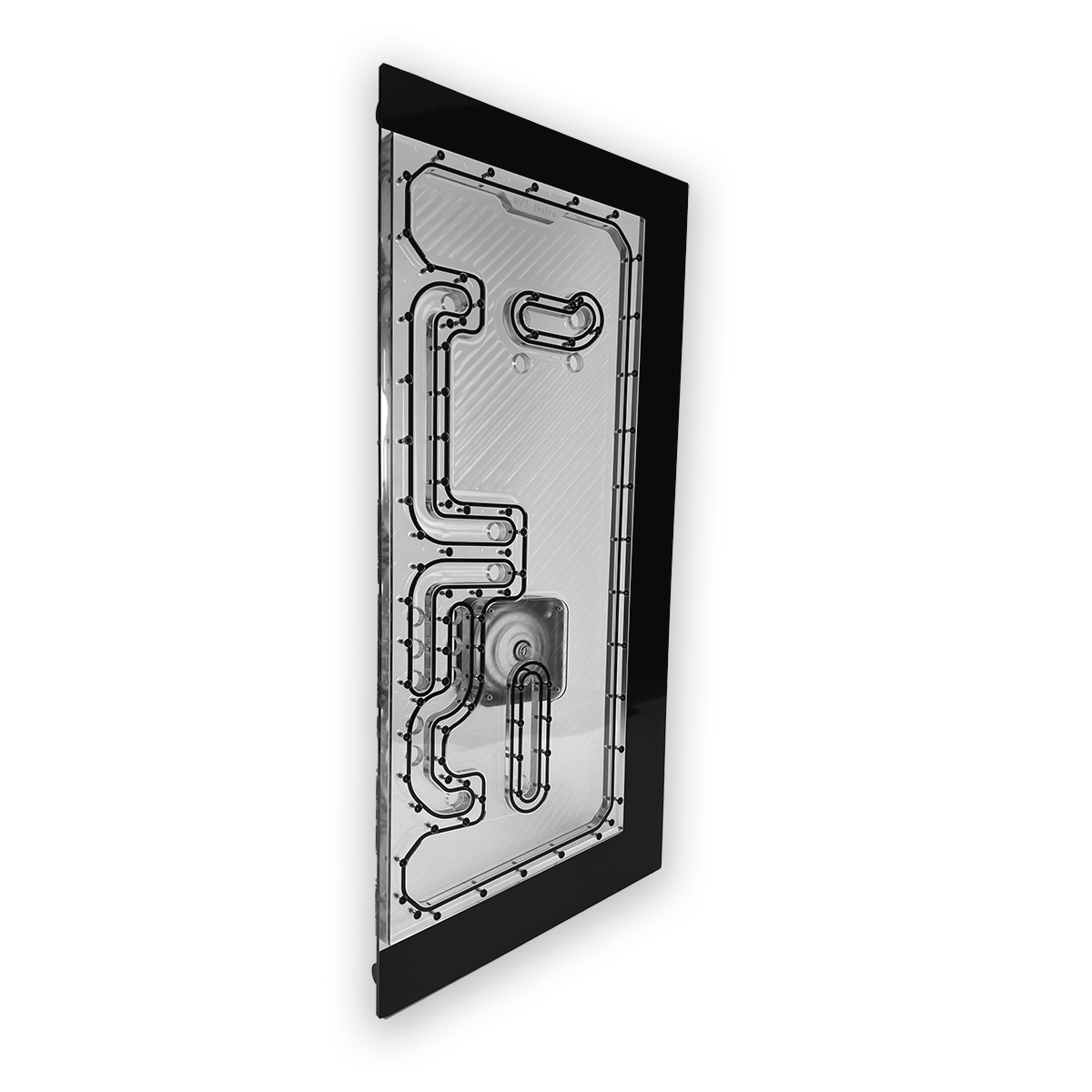

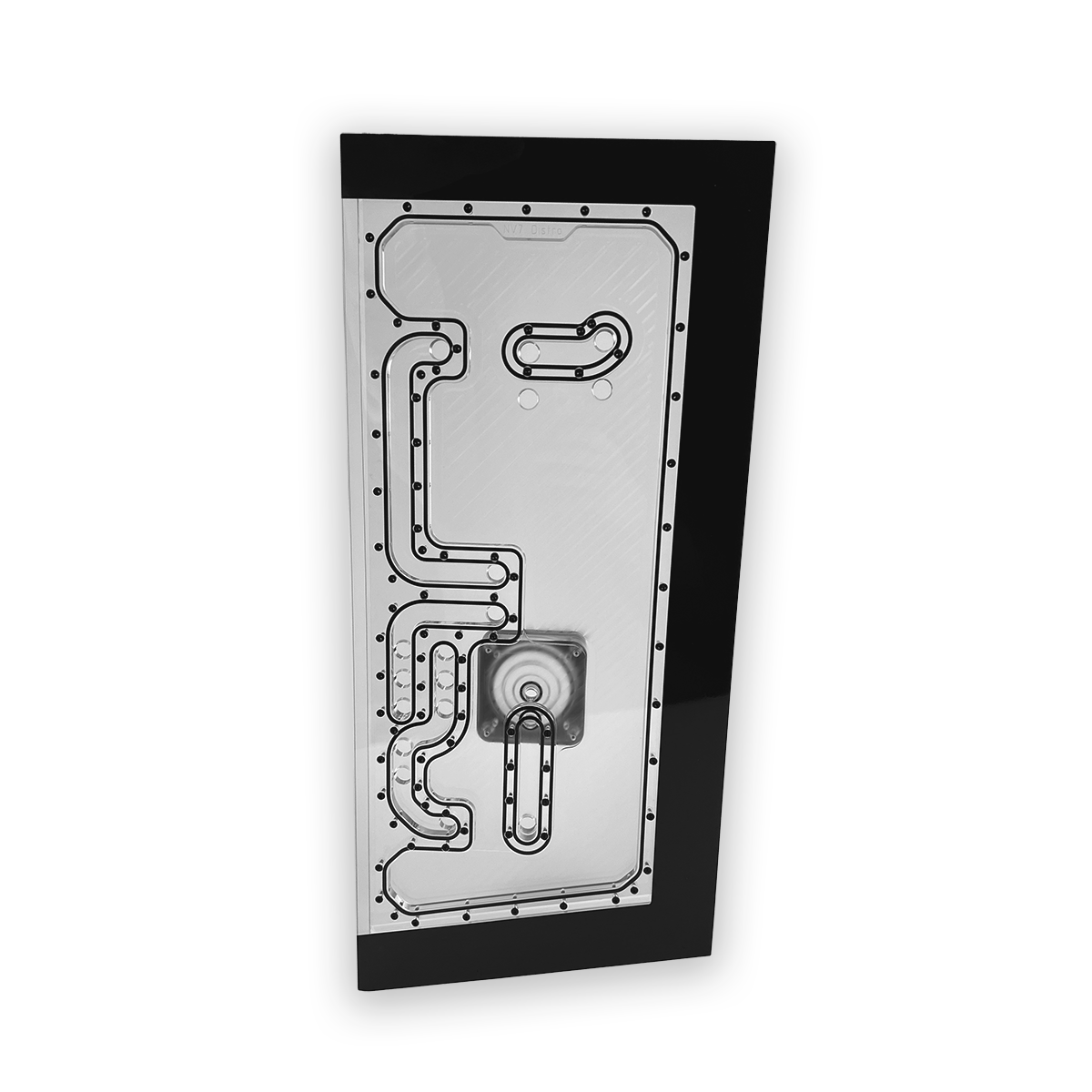

The distroplate is milled from acrylic glass, assembled and tested in a process lasting several hours. It has 19x industry-standard G1/4-inch connections to connect the graphics card, CPU and 3x360mm radiators. To minimize the number of bends, the placement of the PC components is perfectly aligned.

Features in detail

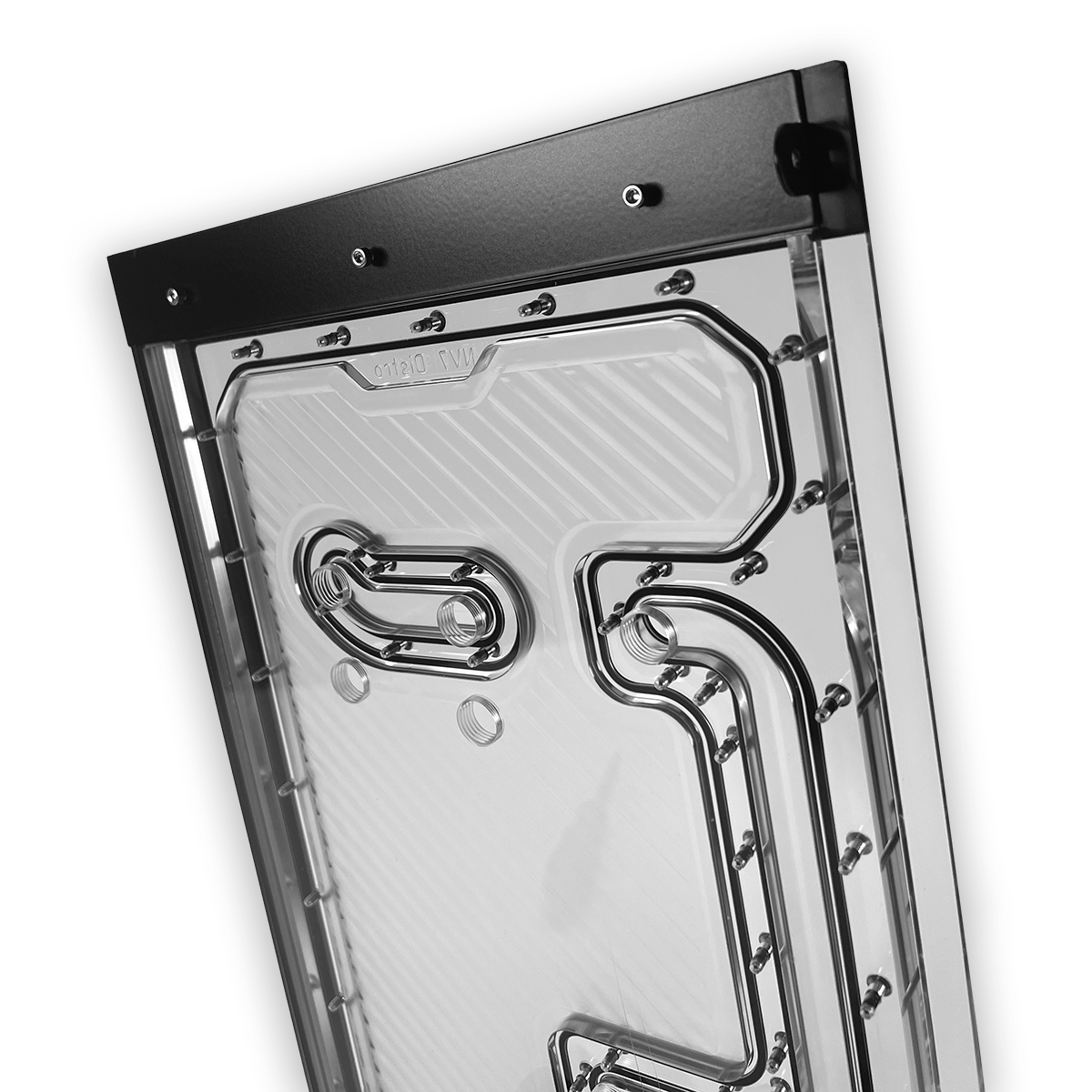

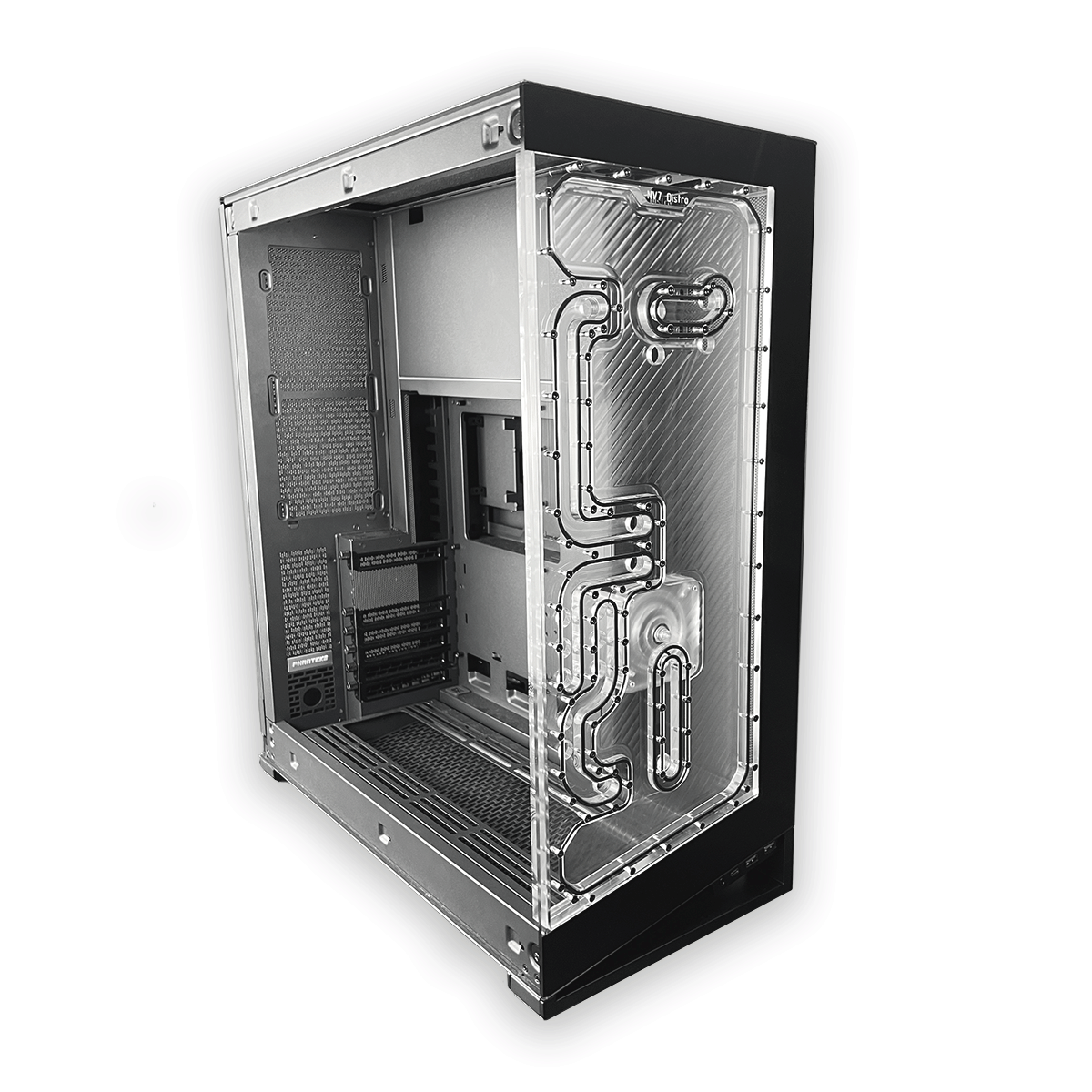

The Phanteks NV7 x Stealkey Distroplate D-RGB replaces the original front panel and is mounted to the top and bottom of the front of the case using mounting strips.

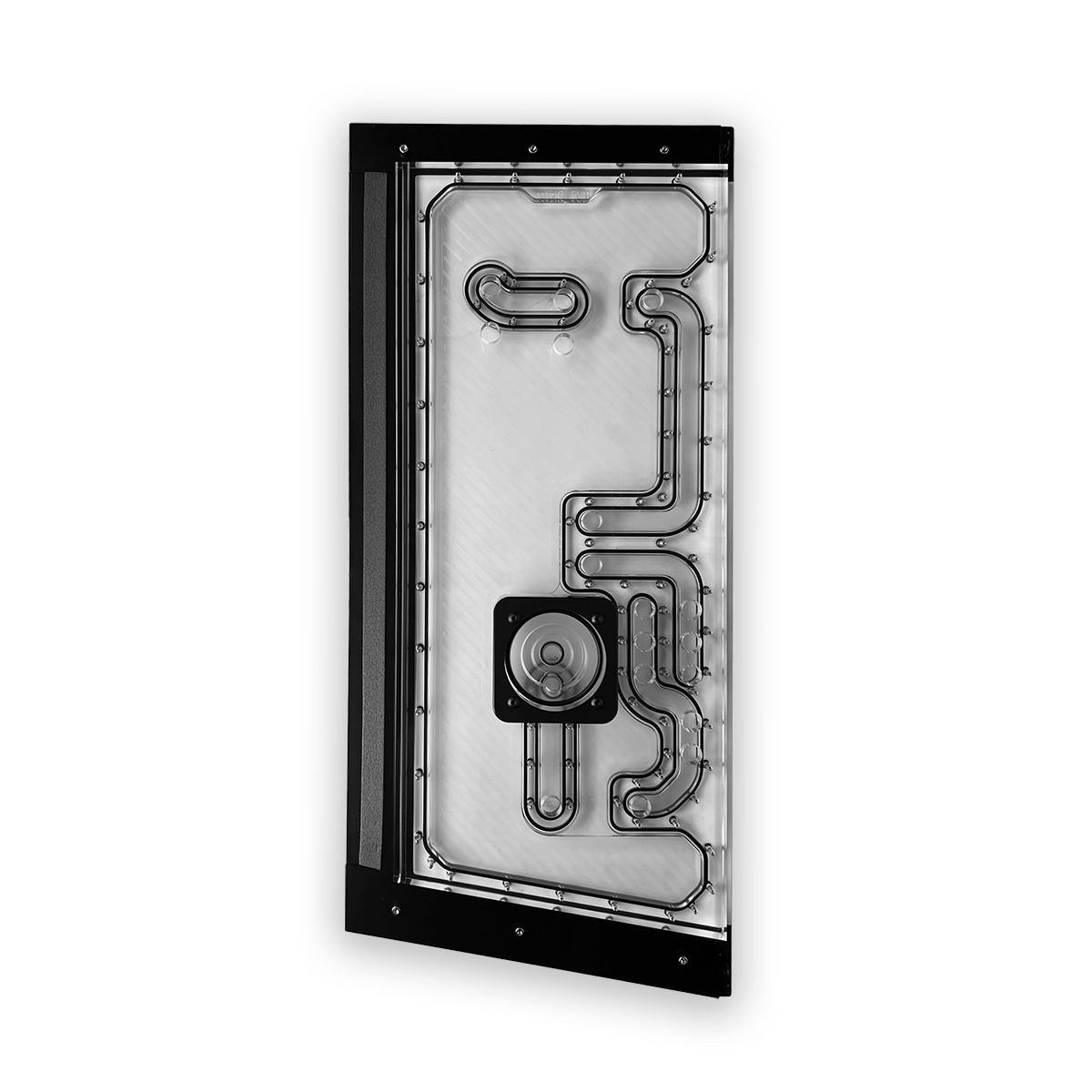

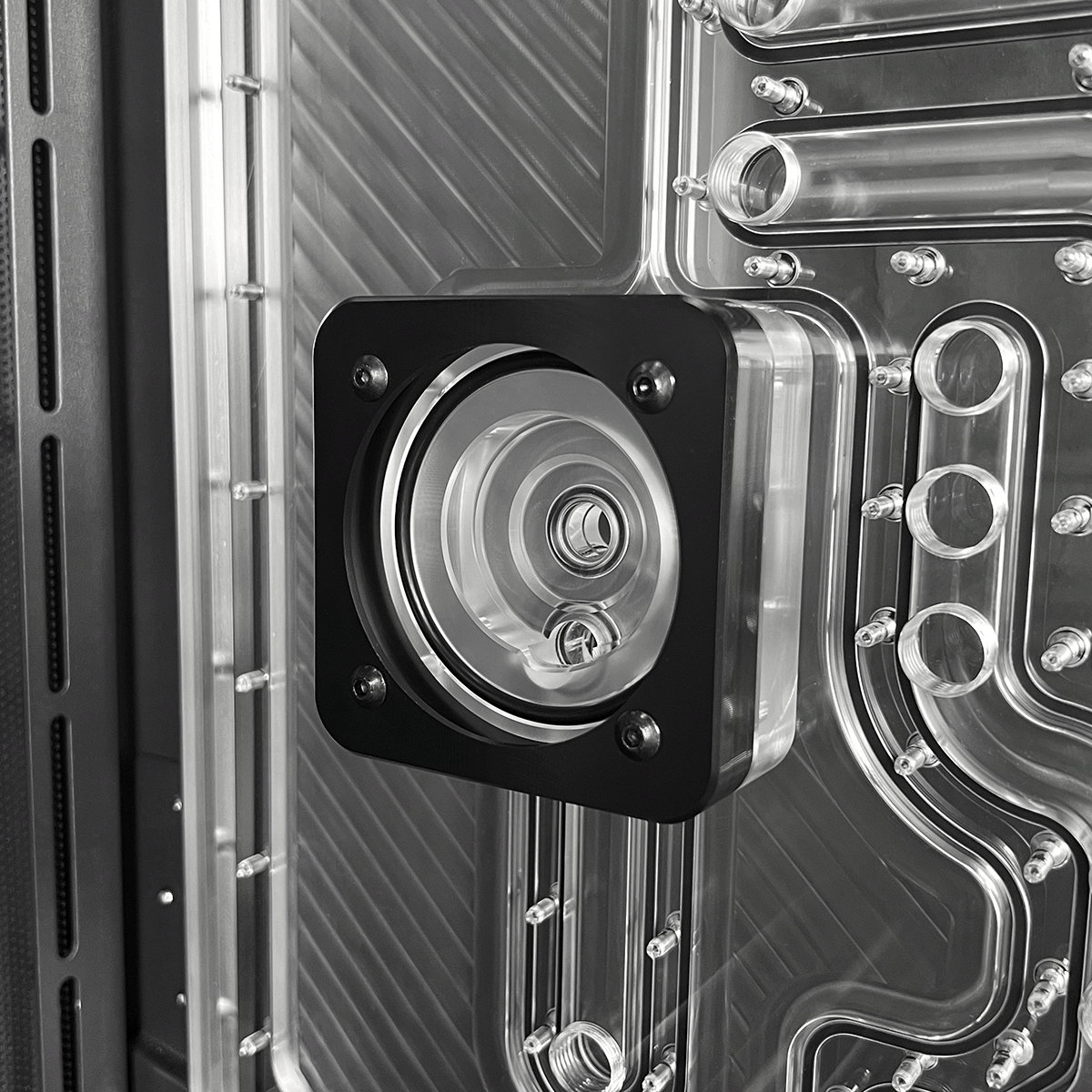

A universal adapter allows the distro plate to be operated with either a D5 or DDC pump. A D5 ring made of POM is placed over the D5 pump and attached to the distro plate using the adapter. In contrast, the DDC pump can be directly screwed onto the adapter. The result is a slim yet sturdy distro plate.

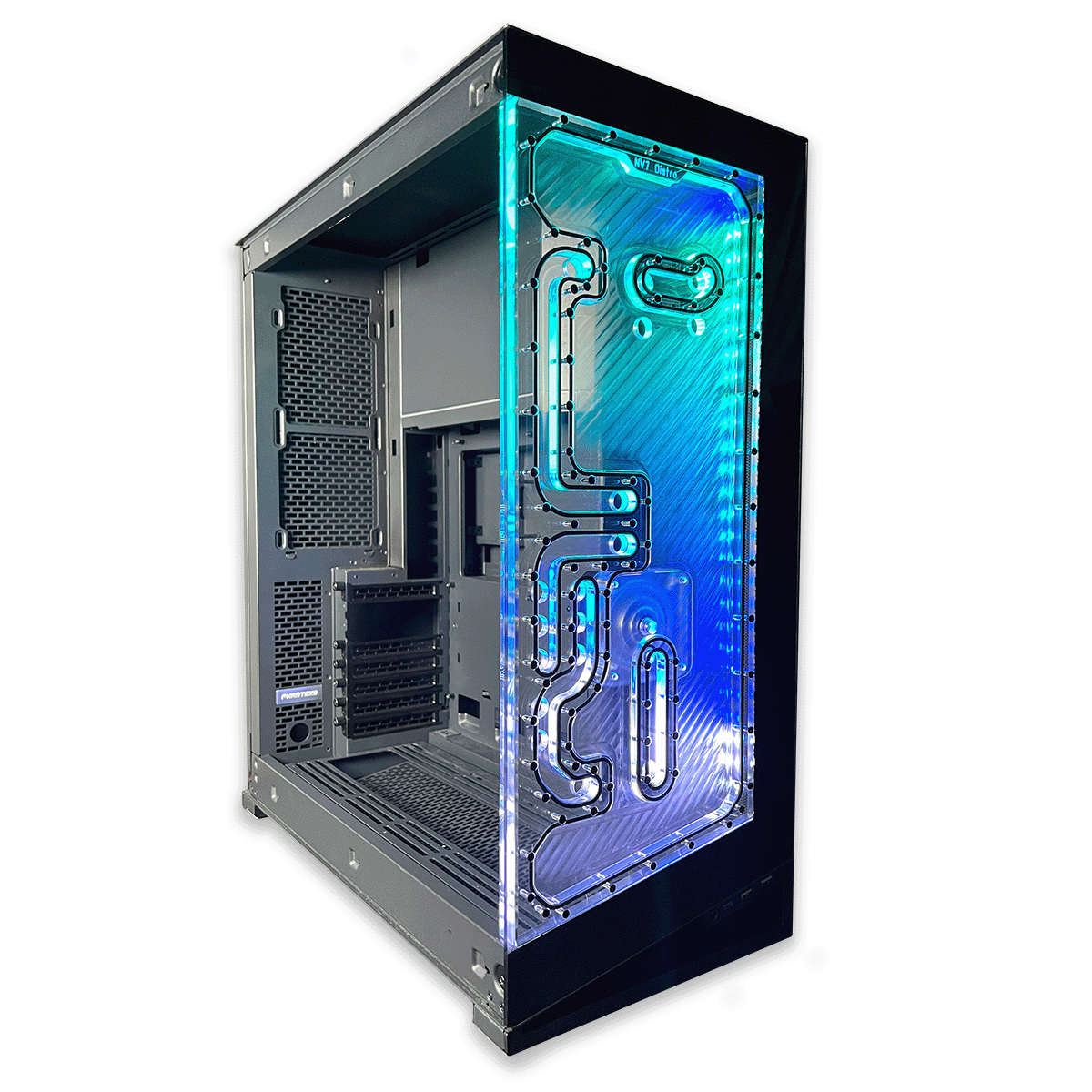

Graphics cards can be installed both horizontally and vertically. Thanks to the perfect alignment with the PC components, straight tubing is possible, resulting in a tidy case that is beautifully showcased by the integrated D-RGB lighting installed on the side. The RGB lighting is connected to the 5V header of the motherboard.

In addition to the orientation of the graphics card, the number and size of radiators are crucial factors for a powerful cooling loop. The distro plate supports up to 3x 360mm radiators, allowing the size advantages of the case to be utilized to their full potential and maximizing the performance of the hardware components. This ensures top performance even at maximum output, guaranteeing maximum gaming enjoyment or stress-free productivity in business applications.

Features at a glance

• optimized for the Phanteks NV7 (without RGB kit)
• water cooling reservoir, coolant routing and pump solution
• easy mounting on the case
• replaces the front glass
• D5/ DDC pump compatible
• straight tubing
• horizontal & vertical position of the graphics card possible
• up to 3x360mm radiators
• integrated RGB lighting
• transparent optics

Technical details

• Product dimensions (W x H x D): 566 x 251 x 23 mm
• Color: Black and transparent
• Material: Acrylic glass
• Connections: 19x G1/4 inch ports
• Reservoir capacity (approx 450ml)
• Radiator compatibility: up to 3x360 mm
• D-RGB cable length: 500mm
• D-RGB connector standard 3-pin (+5V, Data, Blocked, Ground)

Included in delivery

• 1x Phanteks NV7 x Stealkey Distroplate D-RGB
• 9x stop plugs
• 6x M3x4mm mounting screws
• 1x D5 Ring
• 1x D5 O-Ring
