SK-Crossflow II PC-O11 EVO RGB Distro Plate D5/DDC D-RGB

Details

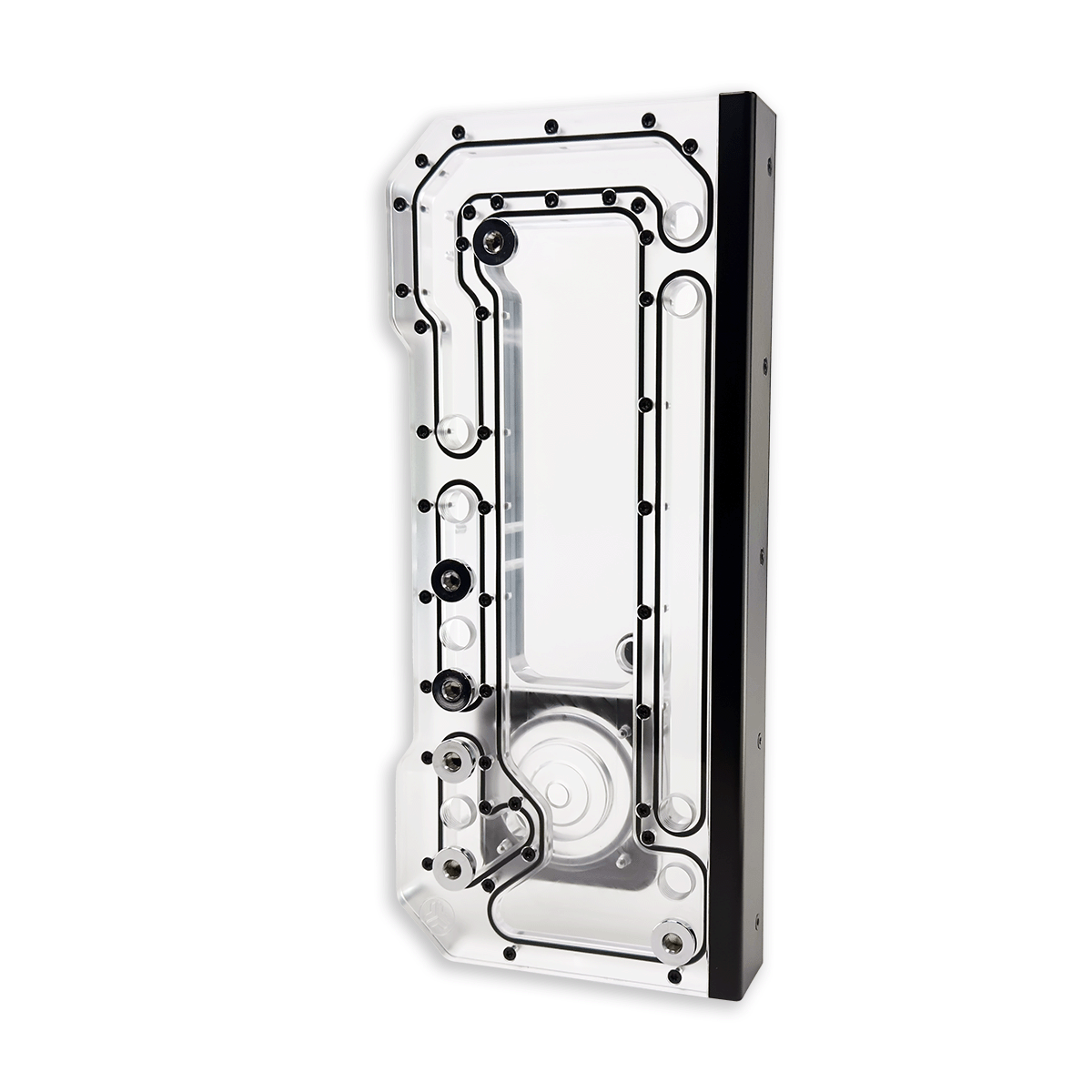

The SK-Crossflow II PC-O11 EVO RGB Distro Plate D-RGB is an expansion tank, distro plate and pump solution all in one. It is intended for use in the Lian Li PC-O11 EVO RGB. The pump solution is located on the rear. A DDC or D5 pump can be installed.

Designed for CPU and GPU waterblocks

It is versatile and supports a wide range of hardware and radiator options. A total of 15 ports provide many connection options for the GPU and CPU. For this reason, the distro plate can be used not only in the Lian Li PC-O11 EVO RGB case, but also in numerous other cases.

Matching Cases

• Lian Li O11D
• Lian Li O11D XL
• Lian Li O11D EVO
• Lian Li O11D EVO XL
• Lian Li O11D EVO RGB
• Lian Li O11 EVO RGB Automobili Lamborghini Edition
• Lian Li O11 Vision

Distro Pate, reservoir and pump solution in one

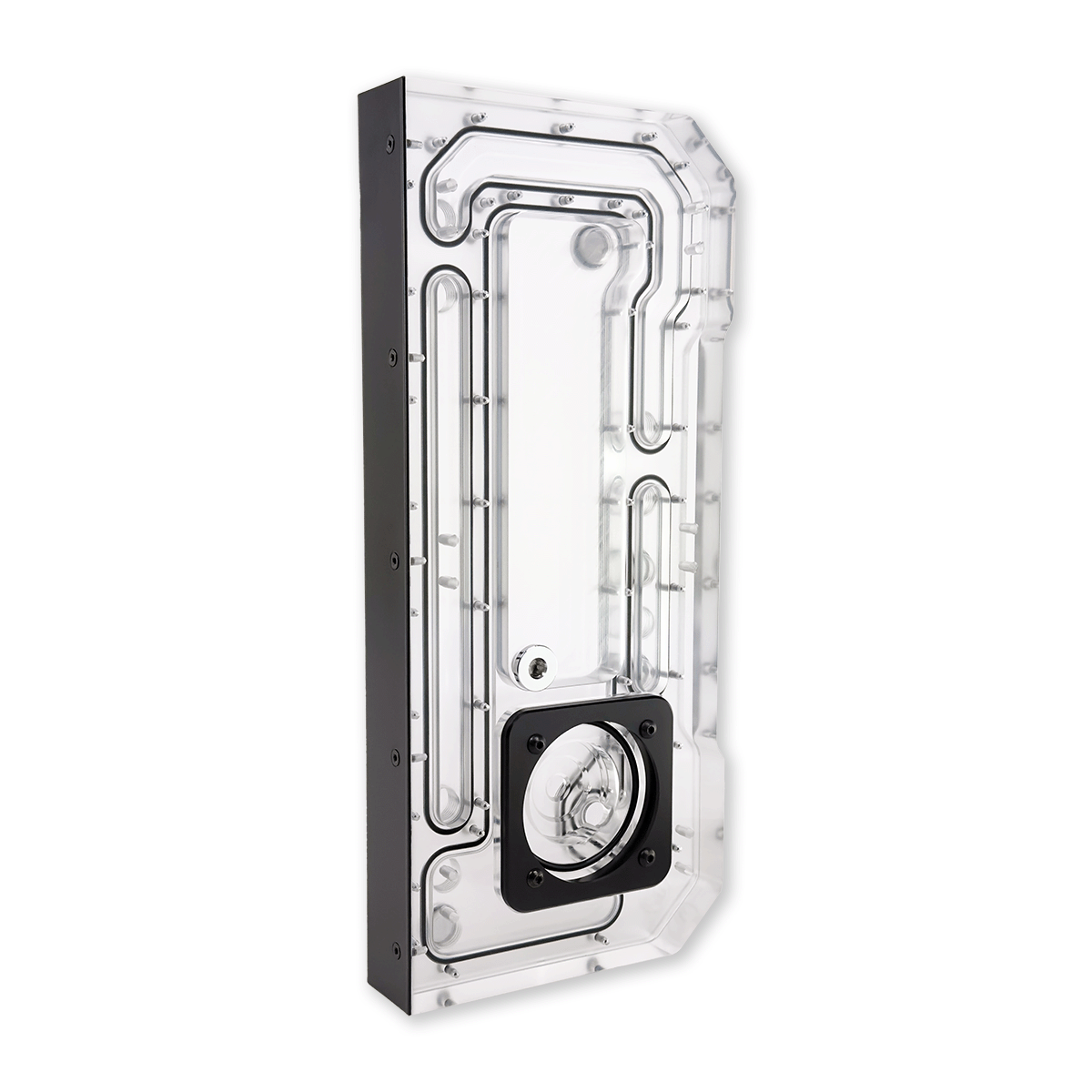

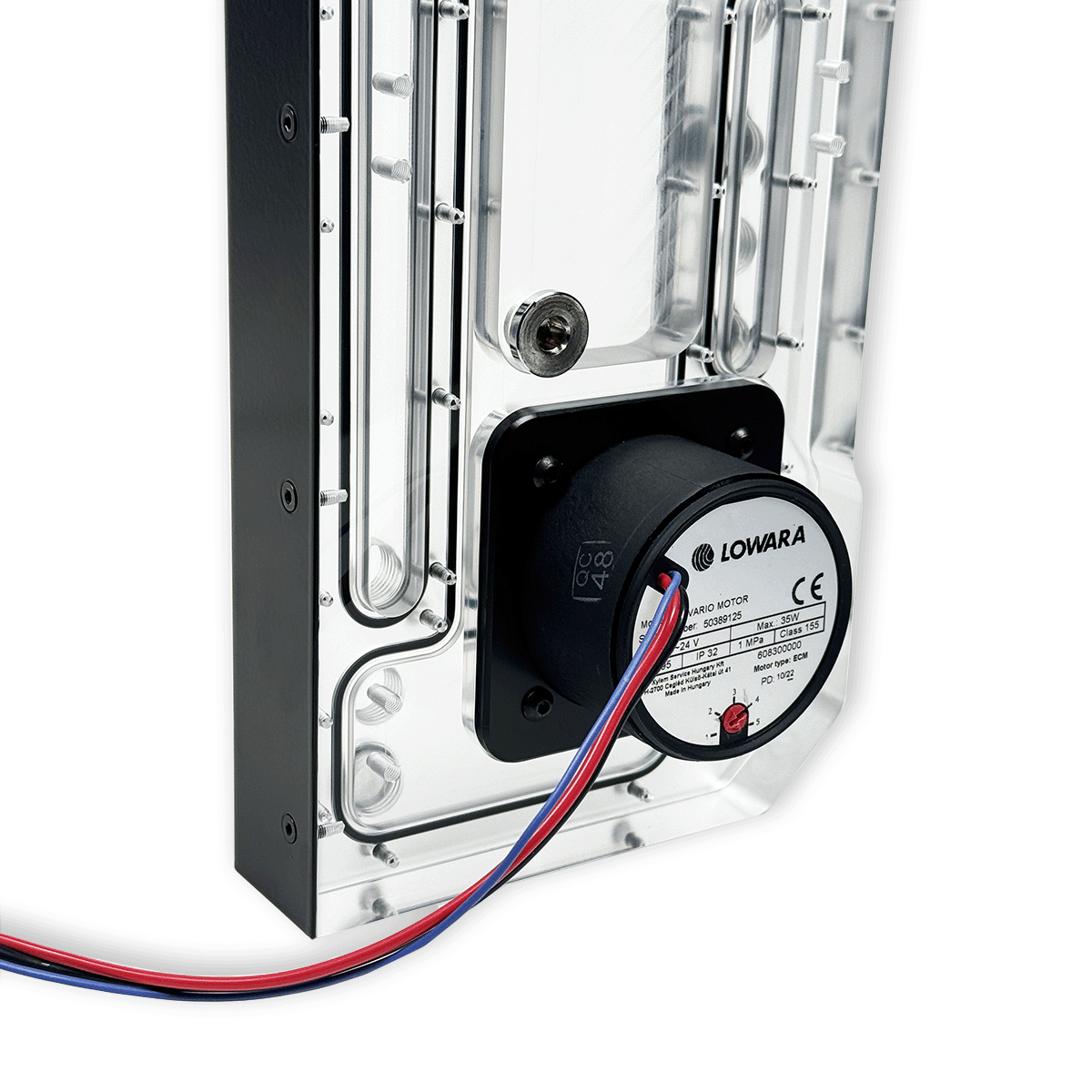

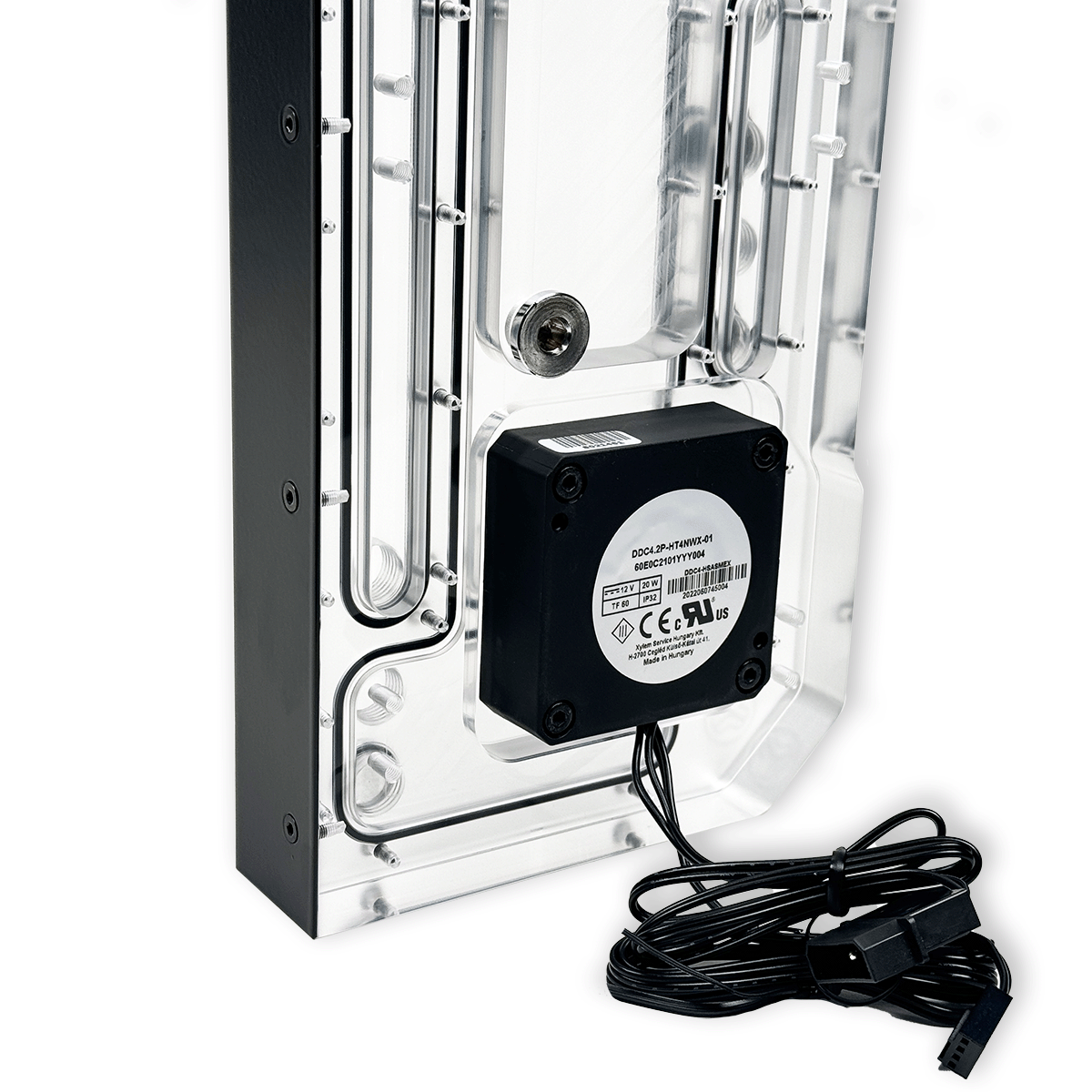

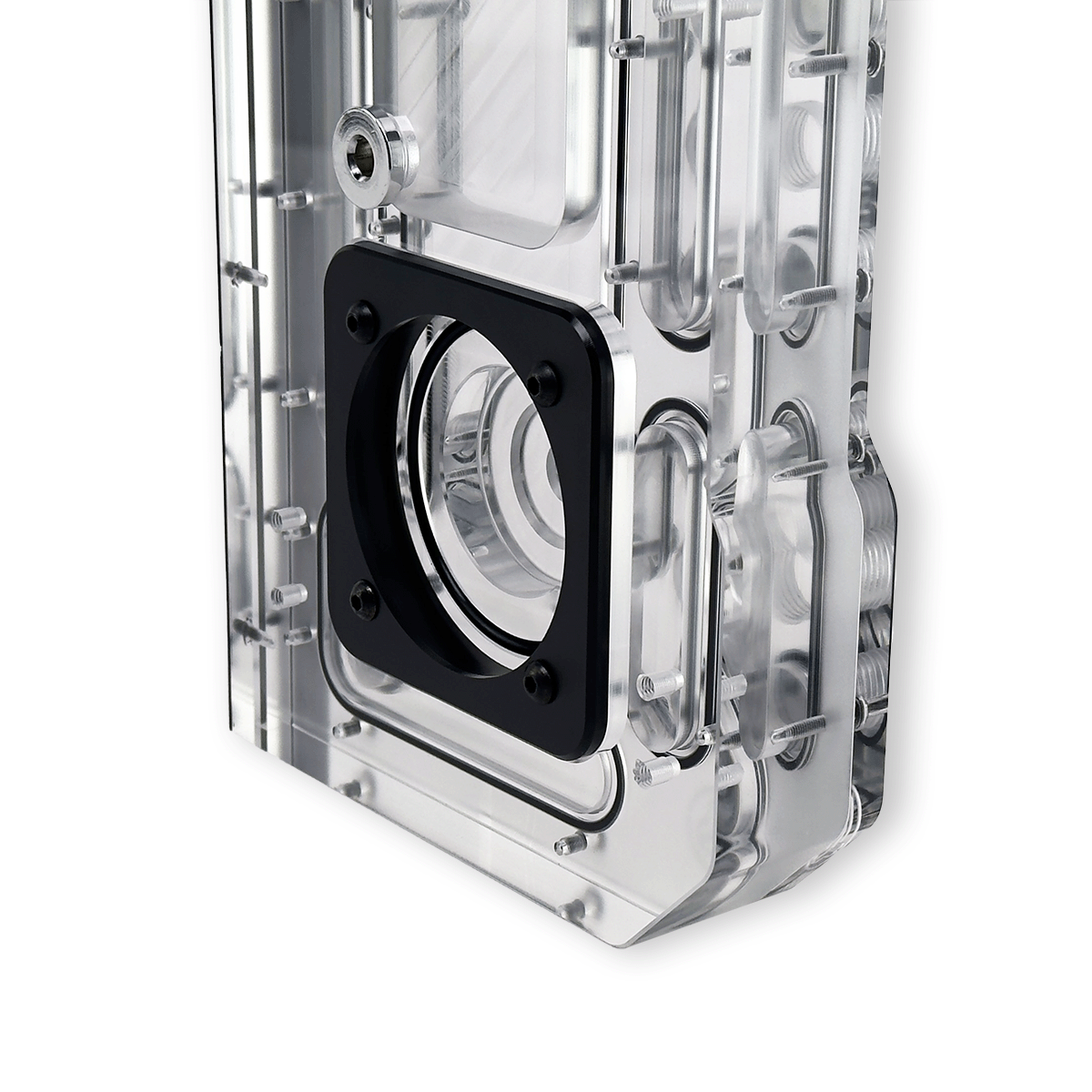

The large chamber in the middle provides sufficient volume of coolant, which is transported through the channels around this chamber to the individual components. The coolant is transported by the pump integrated into the distroplate, which is attached to the rear. This can be a DDC or D5 pump. A D5 ring, seal and screws are supplied for installation. If you decide to mount a DDC pump, mounting screws must be purchased separately. must be purchased separately. Although the pump is located on the back of the Distroplate, it is positioned centrally so that it cannot collide with the fan grille. is excluded. Spacers are also not required in the Lian Li PC-O11 EVO RGB case, as the D5 pump is recessed halfway into the distro plate and does not touch the side wall of the case.

Easy mounting of the Distroplate on 120mm or 140mm fan brackets

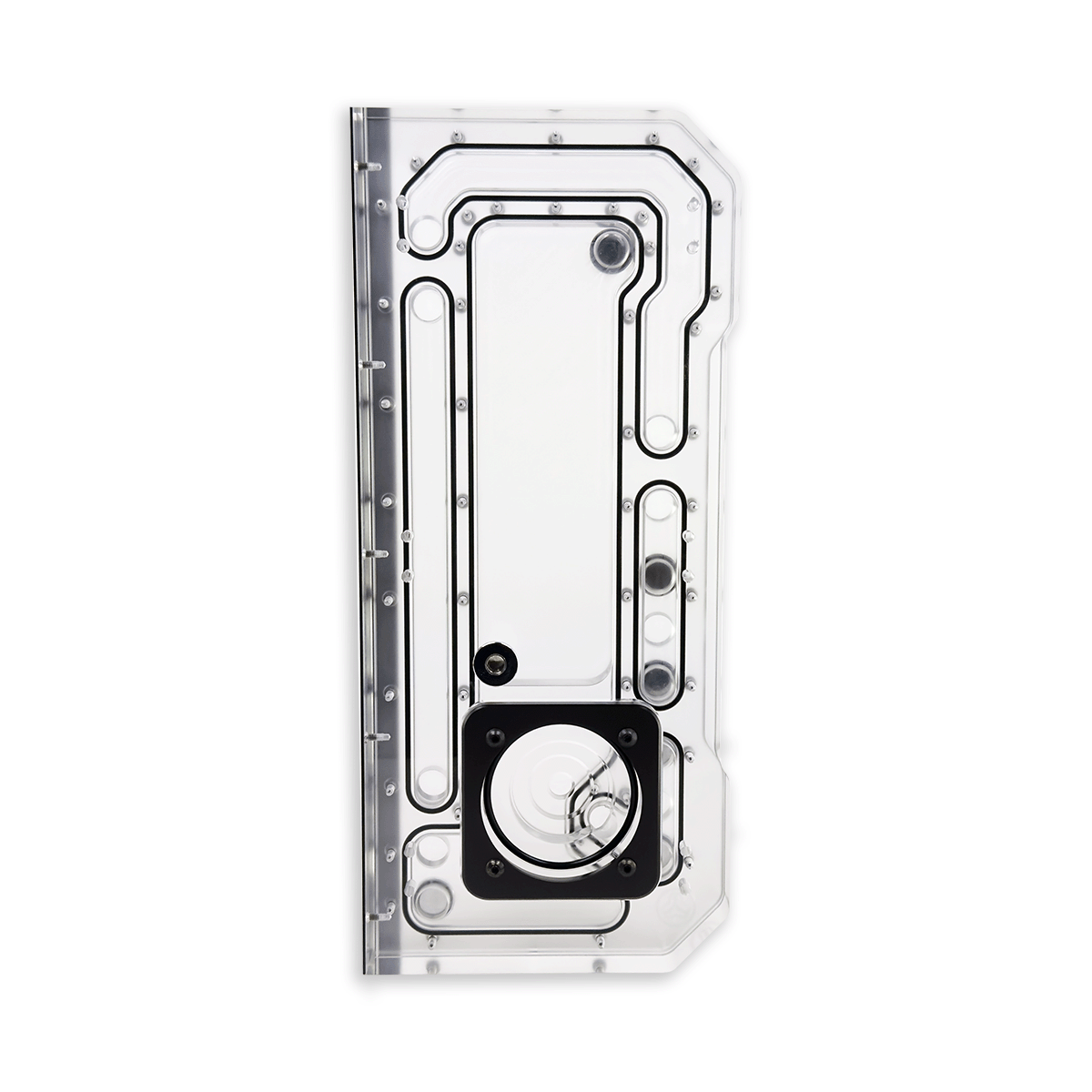

The threads provided on the back of the Distroplate make installation effortless. There are 18x M4 threads available for this purpose, to securely attach the distroplate to a 120mm or 140mm fan bracket. Regardless of where the mainboard is mounted on the mainboard tray, the distroplate can then be aligned using the wide range of mounting options.

Maximum flexibility thanks to three different GPU connection options

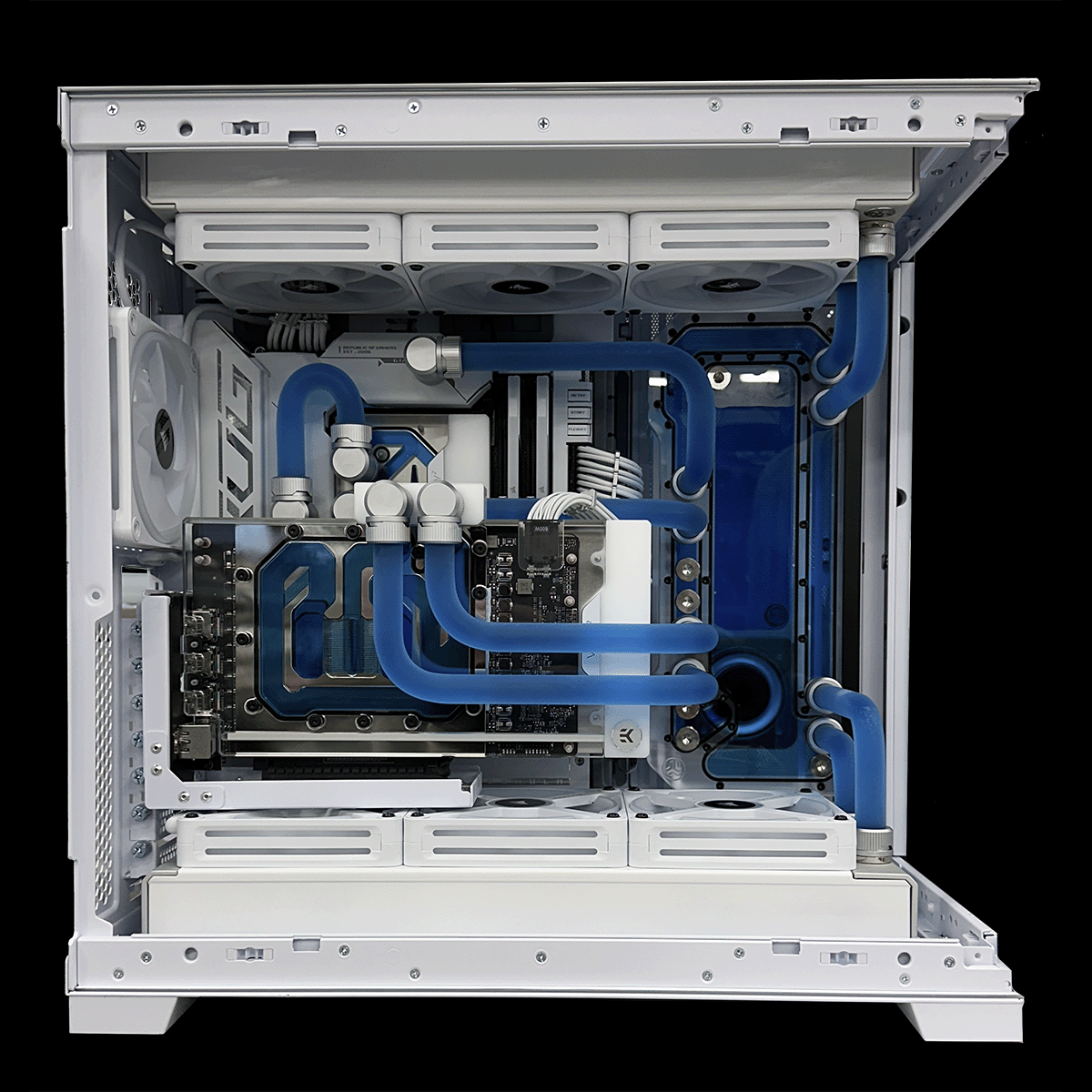

Three different GPU connection options ensure maximum flexibility. This allows the slot assignment on the mainboard to be made according to requirements to facilitate straight hard tubing. In addition to a horizontally or vertically installed GPU, CPU and two radiators can be (1 radiator top 1 radiator bottom) can be connected.

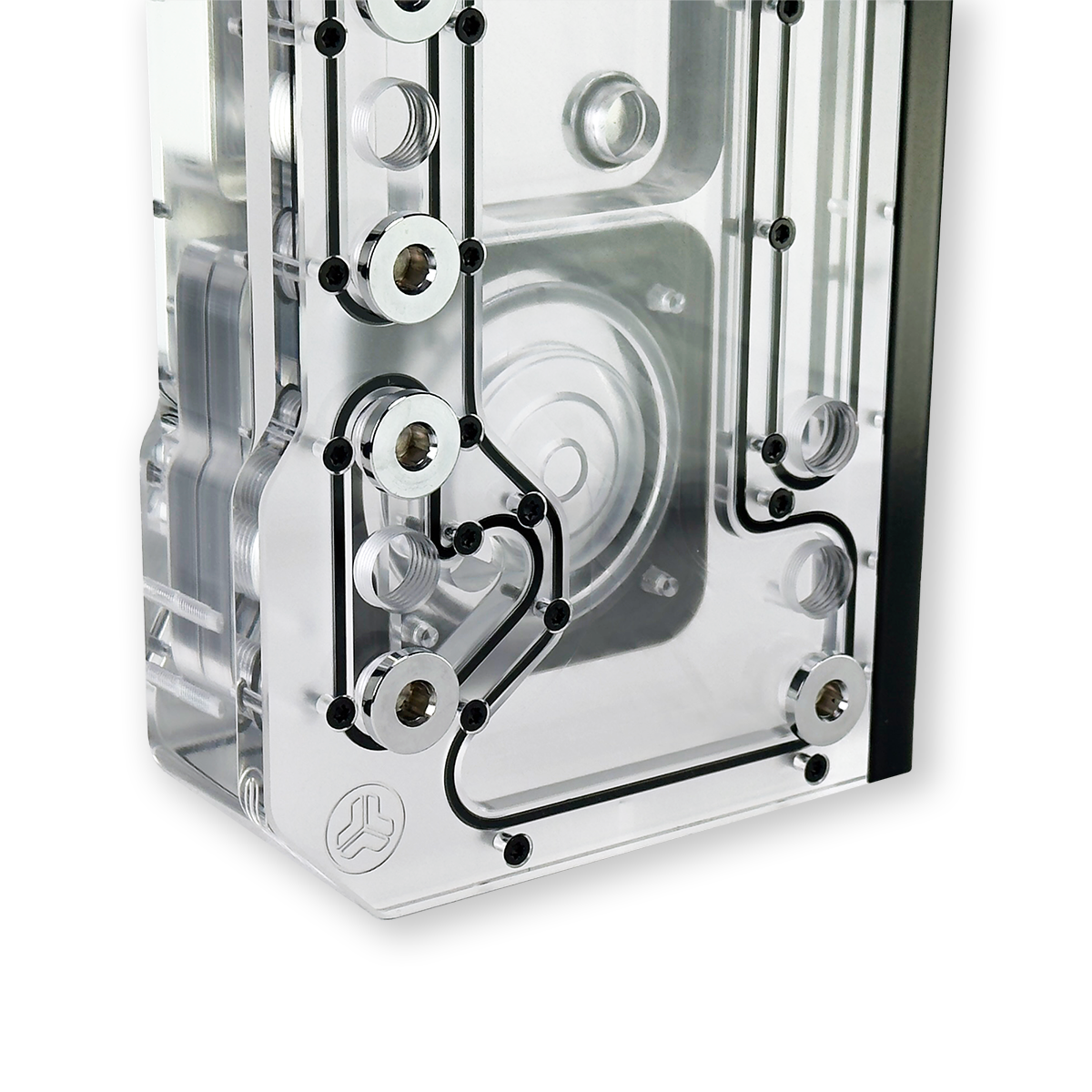

Regarding the surface of the acrylic, we have chosen a matt finish for the front view. The side milling result is transparent as usual. Overall, the mix of different surfaces gives a high-quality impression.

Addressable D-RGB lighting in the Distro Plate

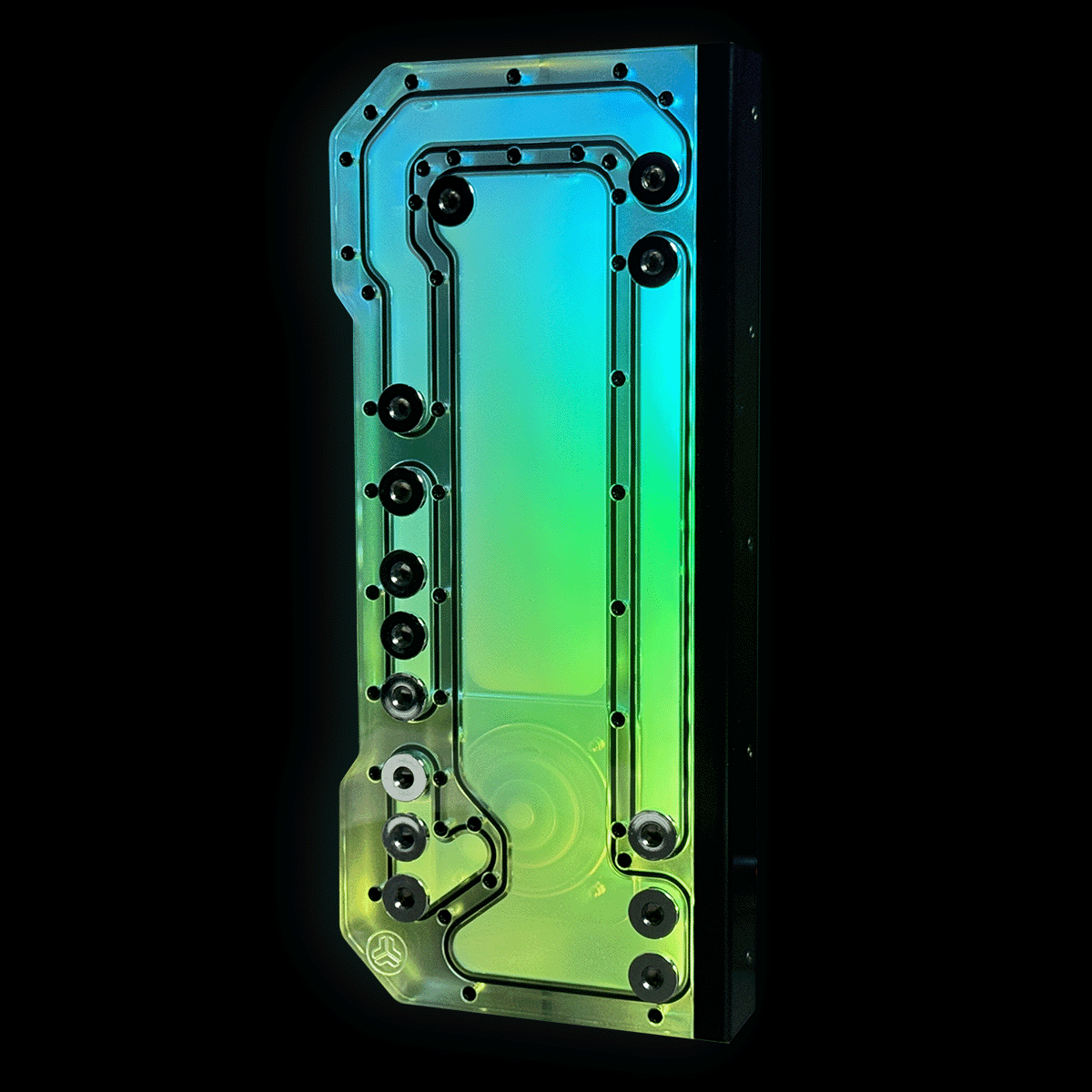

To give your build that little bit extra, we have of course thought of the D-RGB lighting. It is connected to a 3-pin 5V header on the motherboard. A powder-coated steel strip conceals the view of the individual spots on the RGB stripe, so that an even band of light illuminates the distro plate and the coolant. the distroplate including the coolant.

Features at a glance

• Can be used with any case (note product dimensions!)
• Maximum compatibility for CPU, GPU, and 2 radiators (top & bottom)
• Includes addressable RGB strip
• Standard 120mm fan mounting holes for easy installation
• High-quality materials
• D-RGB 3-pin 5V header connector
• Compatible with D5 & DDC pumps

Technical details

• Product dimensions (W x H x D): 140 x 320 x 37 mm
• Color: Black and Transparent
• Material: Acrylic glass, plastic, powder-coated steel
• Connections: 15x G1/4 inch ports
• Capacity: 255ml
• D-RGB cable length: 500mm

Included in delivery

• 1x Crossflow II Distroplate incl. D-RGB lighting
• 1x D5 ring, seal, and screws for D5 pump mounting
• 8x mounting screws
• 7x plugs for unused ports
